JAC Slide Flat Bed Recovery Truck

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Transmission Type:

Manual

Emission Standard:

Euro 4

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Transmission Type Manual

Emission Standard Euro 4

Fuel Type Diesel

Dimensions (L x W x H) (mm) 7350*2350*2370(mm)

Gross Vehicle Weight 7350

Place of Origin Hubei, China

Brand Name JAC

Model Number CLW5070TQZH4

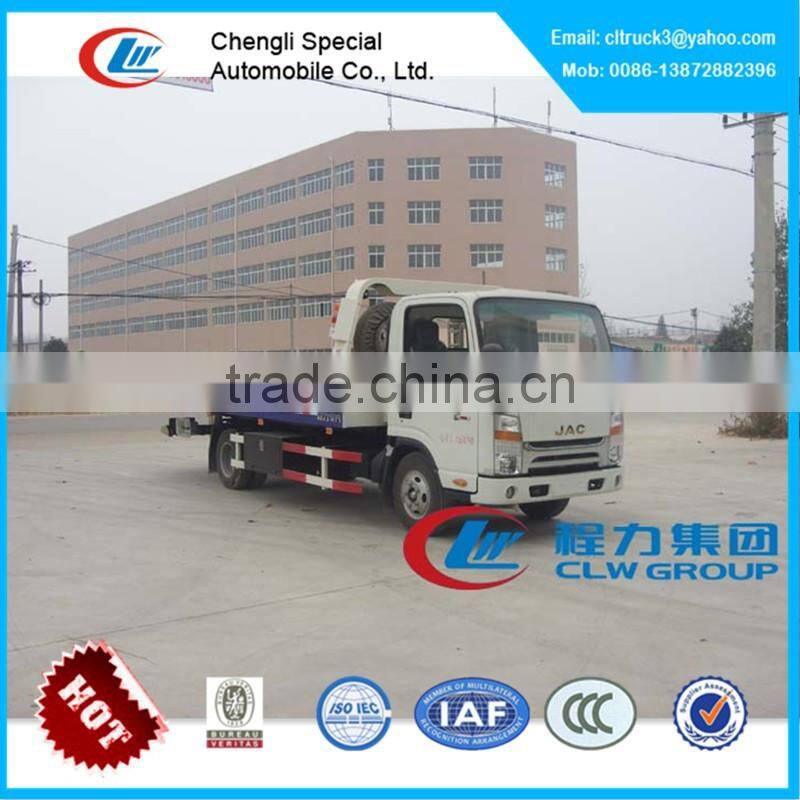

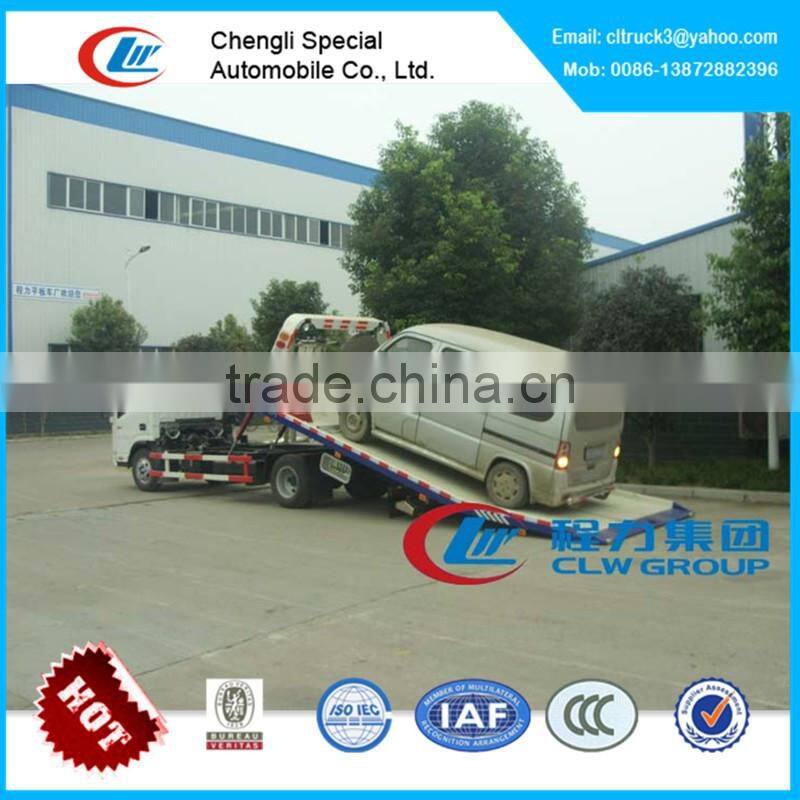

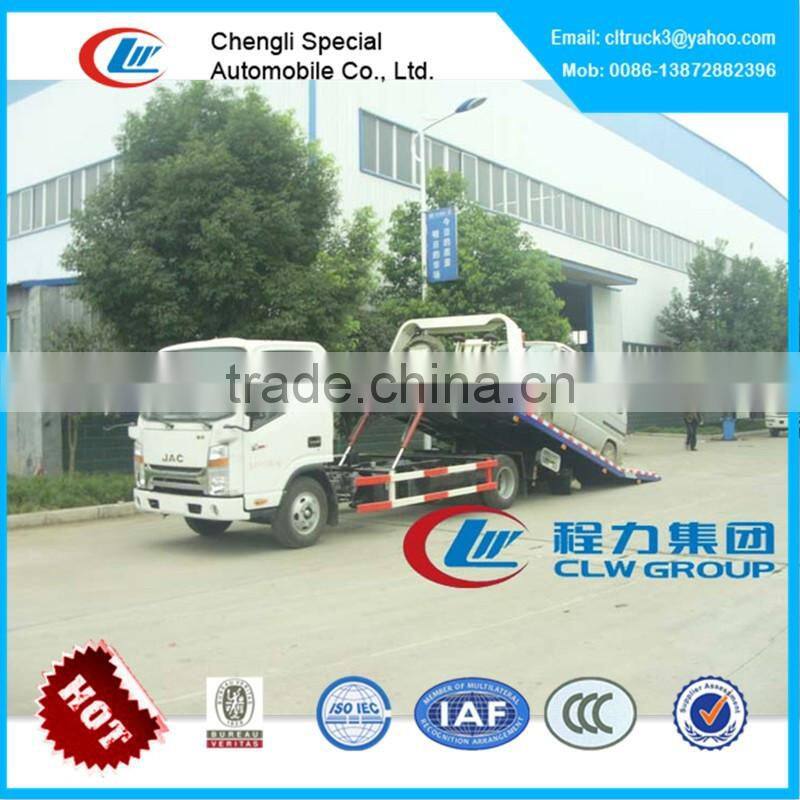

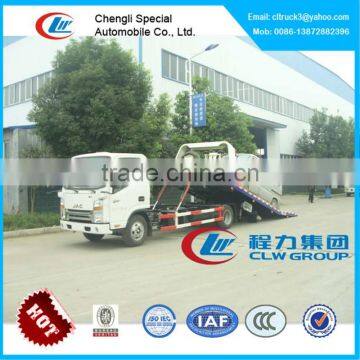

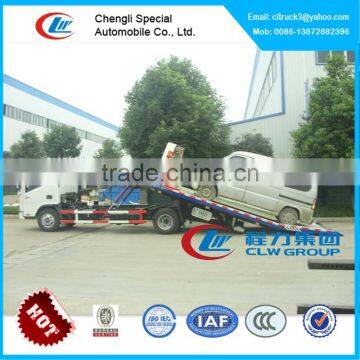

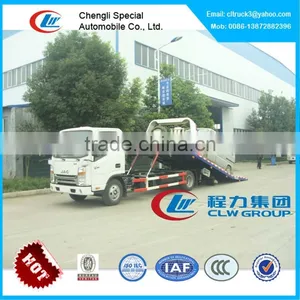

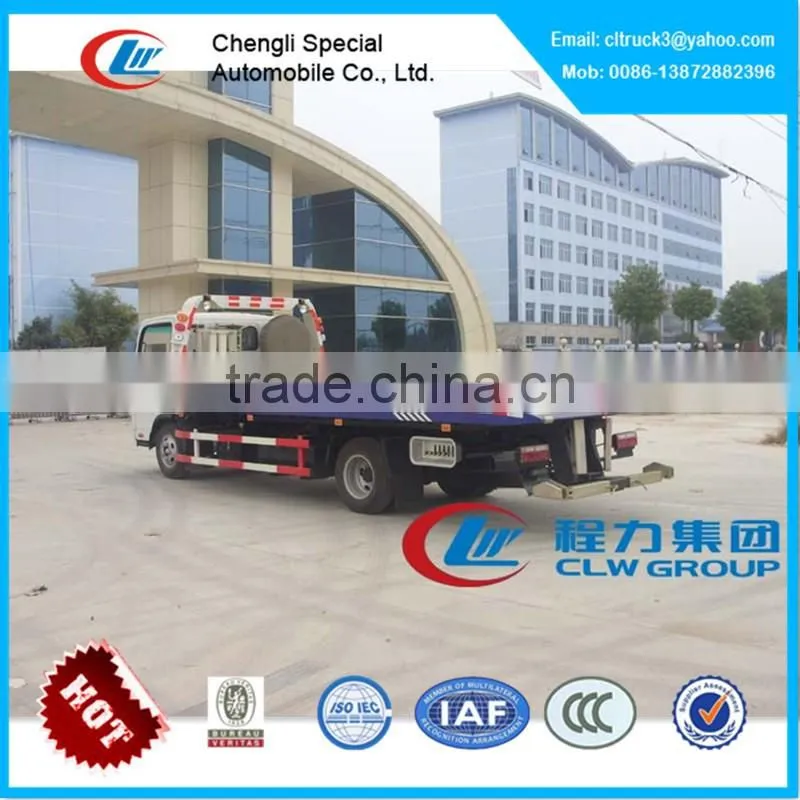

JAC slide flat bed recovery truck

Product	JAC slide flat bed recovery truck
Vehicle model	CLW5070TQZH4
Drive mode	*42**
Chassis parameters	Overall dimensions	mm	*735023502370*
	Gross weight	kg	7350
	Curb weight		4640
	Wheelbase	mm	3815
	Number of axles		2
	Tire specification		7.00R16 14PR
	Number of Tires		6+1
	Allowable passengers in cab		3
Engine	Engine model		HFC4DA1-2C
	Type of fuel		Diesel
	Displacement/power	ml/hp	3771/88
	Max speed	Km/h	120
	Emission standard(TAS)		EURO 4
Other main equipments and parameters	Main equipments		Equipped with hydraulic pressure system, neat-structured, flexible and reliable
			Equipped with high-latitude signal lamp which can guarantee night barrier-cleaning work
			Equipped with traction supporting highly flexible crane operated by the hydraulic pressure system
	Lifting system		Rated lifting weight(kg)	3100
			Effective length (mm)	1300
			*Platform Dimension (LW) (mm)**	5240×2100
			Platform Moving length(mm)	2680
			Qty of winch (pc)	2
			Length of steel wire (m)	21
	Bracket arm		Bracket arm Telescope length (mm)	1180
			Max towing speed (km/h)	40
			Platform Min inclination angle(°)	10
			Platform max loading capacity(mm)	3000
			Rated towing mass (kg)	3000
			Winch Speed (m/min)	8
