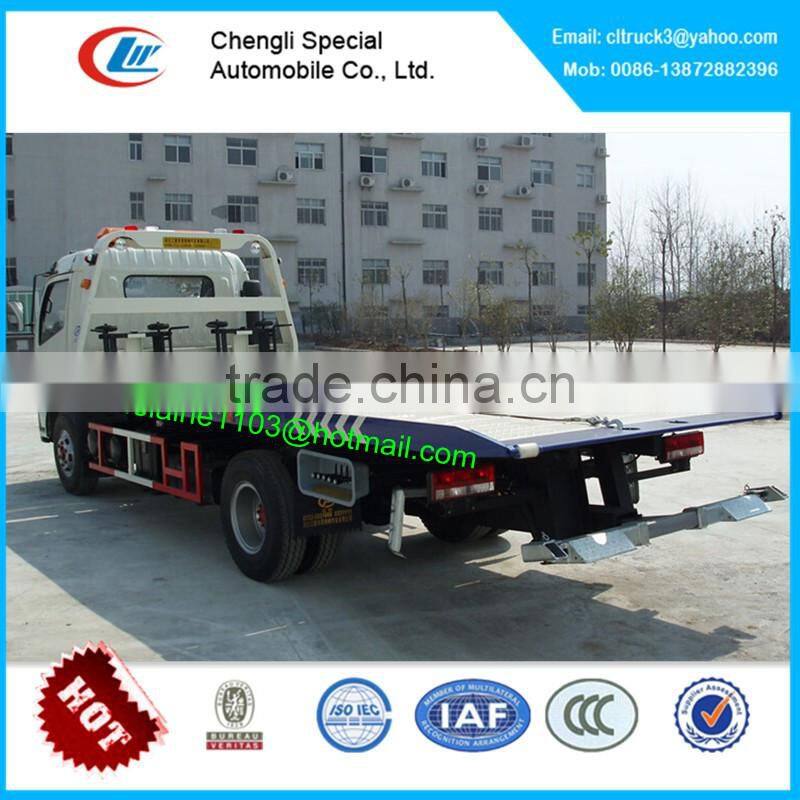

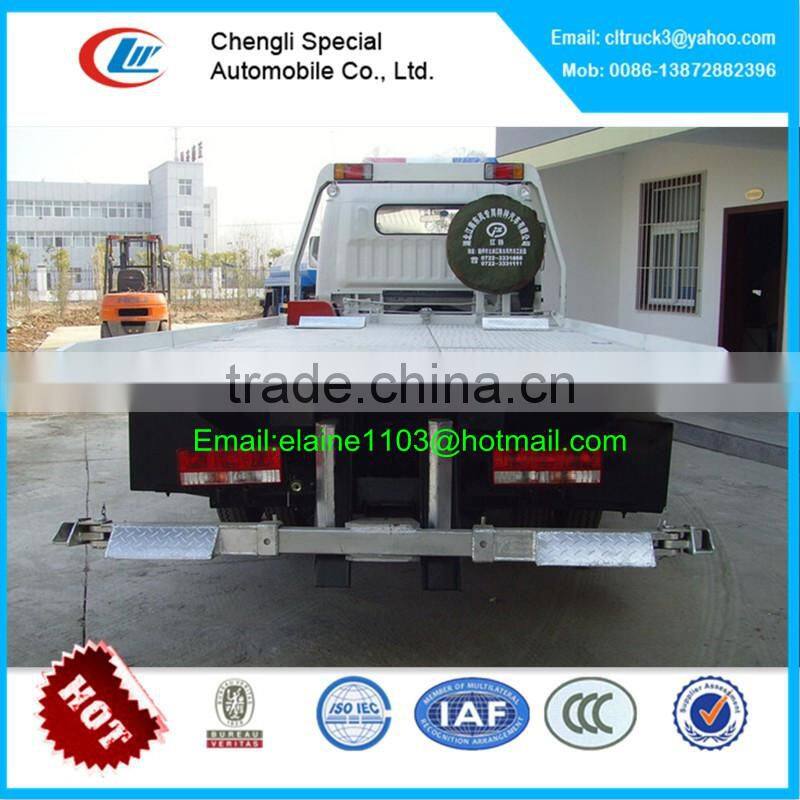

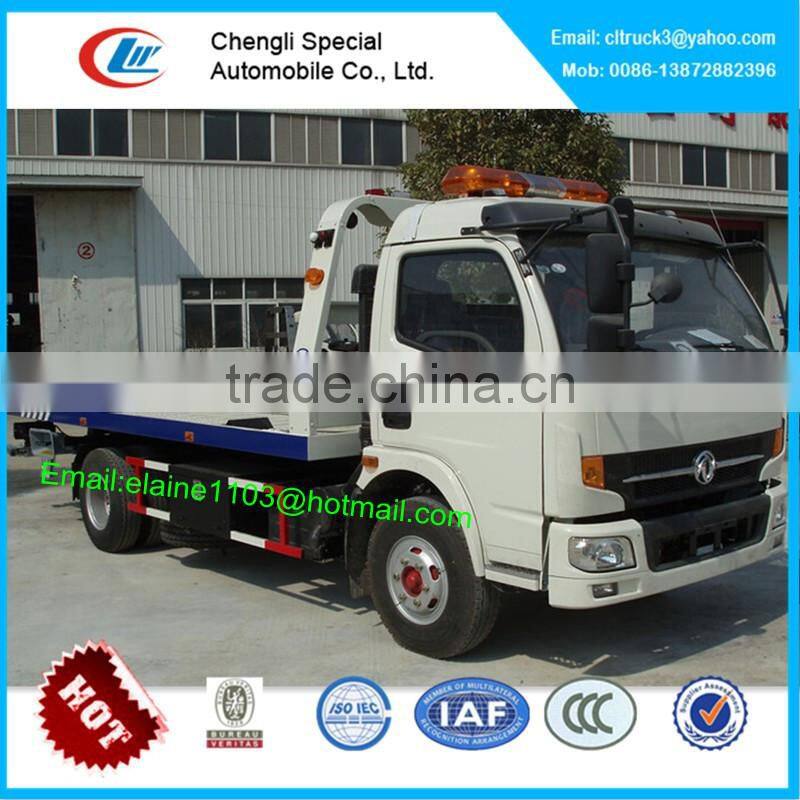

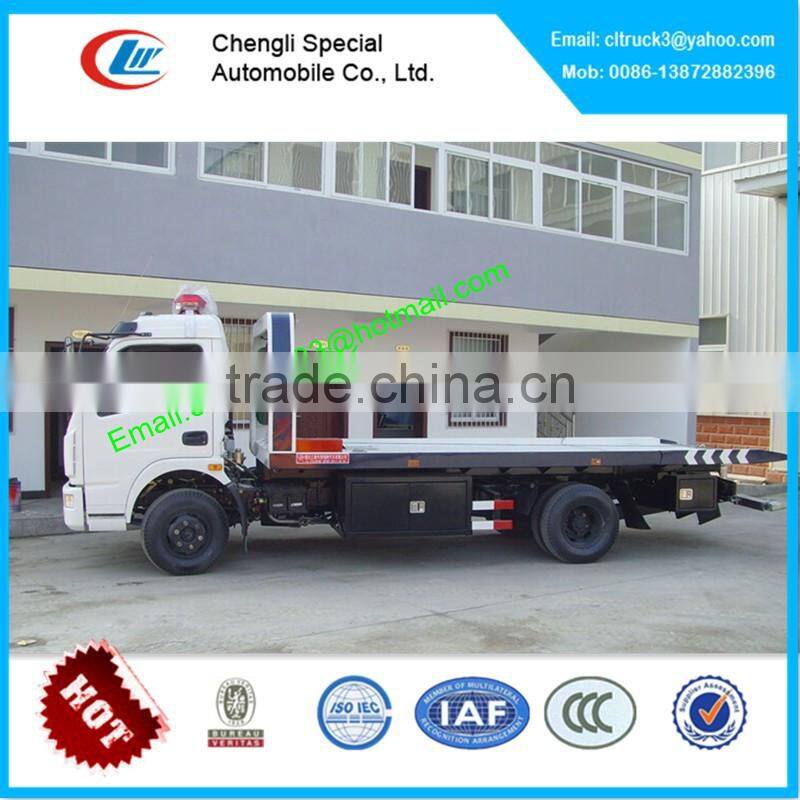

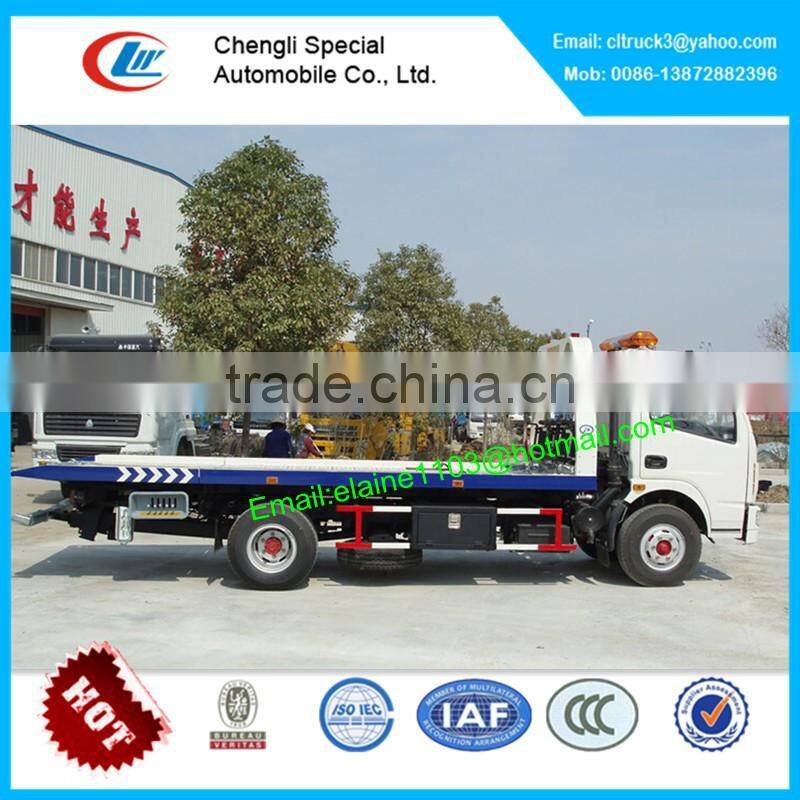

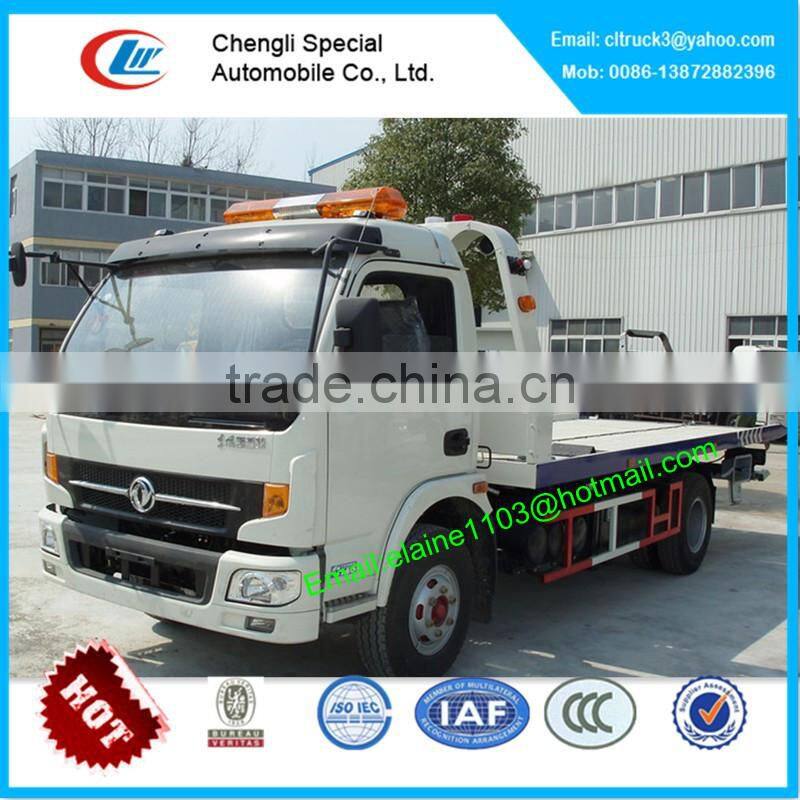

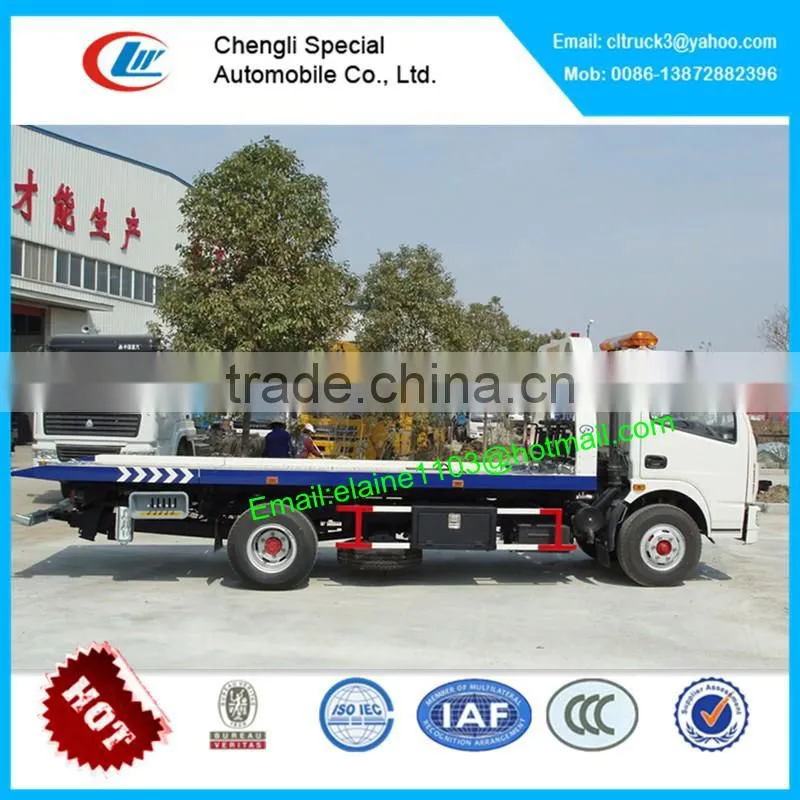

Dongfeng Truck Bed Slide,hydraulic Lift Truck Bed

Name: Dongfeng Truck Bed Slide,hydraulic Lift Truck Bed
Brand: Dongfeng
SKU: 140822058
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Transmission Type:

Manual

Emission Standard:

Euro 3

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Dimensions (L x W x H) (mm) 7350*2350*2510(mm)

Gross Vehicle Weight 7800

Place of Origin Hubei, China

Brand Name Dongfeng

Model Number EQ5080TQZK

Dongfeng truck bed slide,hydraulic lift truck bed

Product	Dongfeng truck bed slide,hydraulic lift truck bed
Vehicle model	EQ5080TQZK
Drive mode	*42**
Chassis parameters	Overall dimensions	mm	*735023502510*
	Gross weight	kg	7800
	Curb weight		5605
	Wheelbase	mm	3800
	Number of axles		2
	Tire specification		8.25R16
	Number of Tires		6+1
	Allowable passengers in cab		3
Engine	Engine model		ISDe140 30
	Type of fuel		Diesel
	Displacement/power	ml/hp	4500/140
	Max speed	Km/h	110
	Emission standard(TAS)		EURO 3
Other main equipments and parameters	Main equipments		Equipped with hydraulic pressure system, neat-structured, flexible and reliable
			Equipped with high-latitude signal lamp which can guarantee night barrier-cleaning work
			Equipped with traction supporting highly flexible crane operated by the hydraulic pressure system
	Lifting system		Rated lifting weight(kg)	3100
			Effective length (mm)	1300
			*Platform Dimension (LW) (mm)**	5240×2100
			Platform Moving length(mm)	2680
			Qty of winch (pc)	2
			Length of steel wire (m)	21
	Bracket arm		Bracket arm Telescope length (mm)	1180
			Max towing speed (km/h)	40
			Platform Min inclination angle(°)	10
			Platform max loading capacity(mm)	3000
			Rated towing mass (kg)	3000
			Winch Speed (m/min)	8
