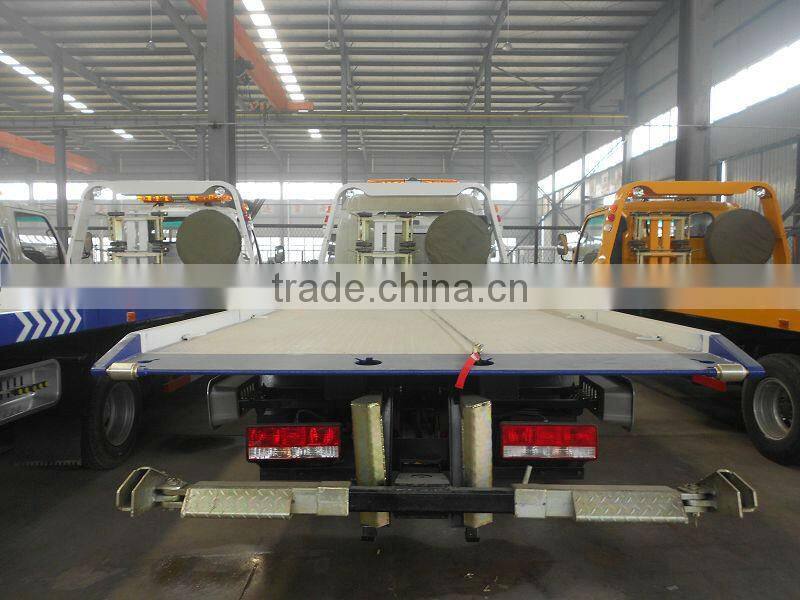

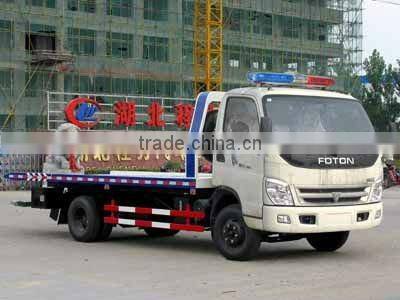

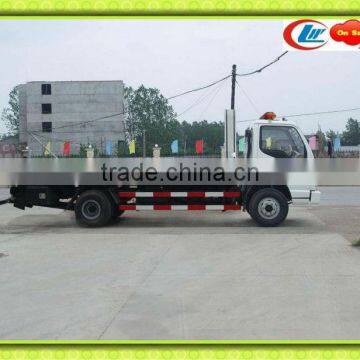

Foton 4*2 Tow Truck & Wrecker,mini Tow Truck,flatbed Tow Truck

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Fuel Type:

Diesel

Emission Standard:

Euro 3

Condition:

New

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Diesel

Emission Standard Euro 3

Condition New

Transmission Type Manual

Dimensions (L x W x H) (mm) 7520*2320*2380,2540

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW5062TQZP3

Specifications

Foton 4*2 Tow Truck & Wrecker
1.Rated lifting weight 3.1t;
2.Platform max loading 3t;
3.4x2
4.3C

Foton 4*2 Tow Truck & Wrecker

Vehicle model	CLW5062TQZP3		Brand name			CLW
Manufactory	Hubei Chengli Special Automobile CO.,LTD
Overall Dimension (mm)	7520×2320×2380,2540			G.V.W (kg)		6495
Van size (mm)	××			Rated loading capacity (kg)
Approach / Departure angle	22/10			Mass in working order (kg)		4950
Front / Rear Suspension (mm)	1120/2450			Mass speed (km/h)		90
Vehicle identification code	LVBV4JBB××××××××× LVBV4JDB×××××××××
Chassis model	BJ1069VCJEA-D
Engine type	Engine manufactory			Exhaust / hp		Power
CA4DC2-12E3 CY4102-C3C YZ4DB1-30 YZ4DA1-30 Phaser135Ti-S30	Yiqi jiefang automobile co ltd dalian diesel branch Dongfeng chaoyang diesel co ltd Weichai power Yangzhou diesel co ltd. Weichai power Yangzhou diesel co ltd. Paijingsi leiwo power(tian jing)co ltd			3168 3856 4087 3660 4000		88 88 95 95 101

Fuel	Diesel			Emission standards		GB17691 -2005 GB3847 -2005
Number of axle	2			Number of tire		6
Wheel base	3800			Tire specification		7.50-16, 7.50 R16,8.25-16,8. 25R16
Axle load	2440/4055			Front track base		1685
Steel spring few films	9/11+7			Rear track base		1600
Others	Lifts quality: 1350kg; extension: 150mm. Optional warning light, corresponding to the vehicle height 2540mm.
Production cycle				8-10 days
Warranty				12 month,from the date of supply
Factory price		USD		FOB/DAF/CNF/CIF	USD
