Help CenterDongFeng 4X2 160HP Towing Truck Wrecker
Related Products
Specifications
DongFeng 4X2 160HP towing truck wreckerTraction:20T
Lift Weight: 4000kg
Engine: Commins
Horsepower: 160hp
towing truck wrecker Detailed Product Description

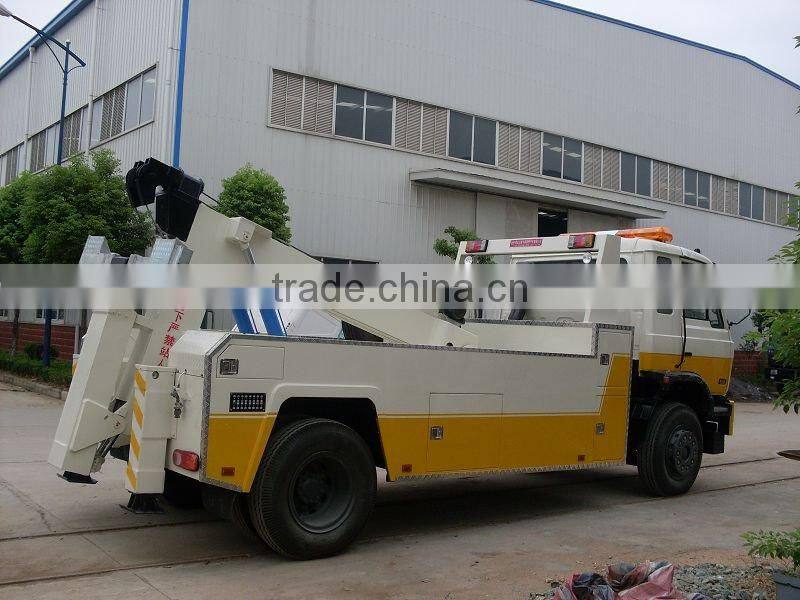

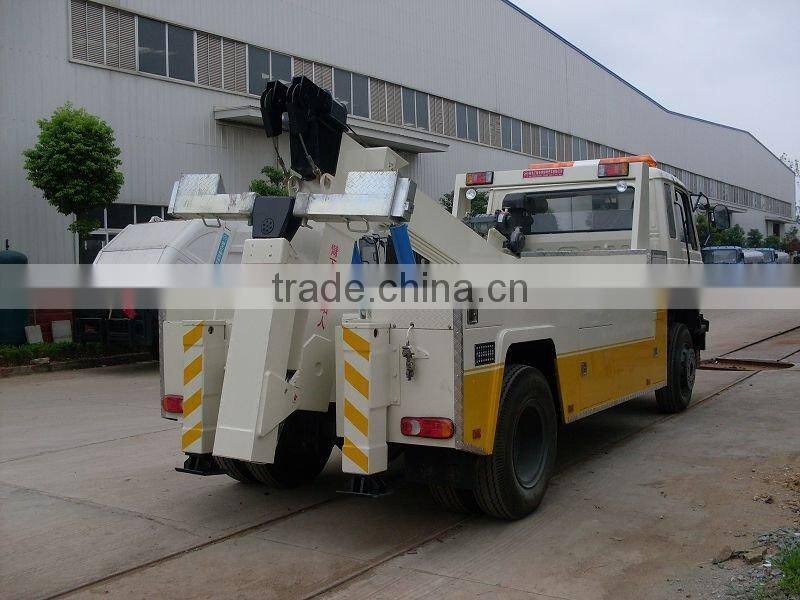

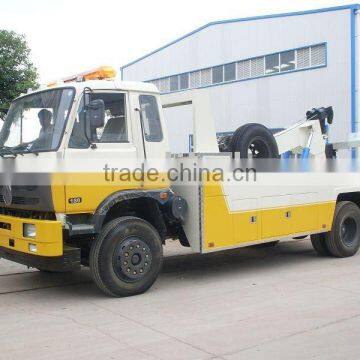

DongFeng 4X2 160HP towing truck wrecker
Traction:20T
Lift Weight: 4000kg
Engine: Commins
Horsepower: 160hp
tow wrecker truck is using to tow truck that the truck in accident.
Product |
Dongfeng 145 tow wrecker truck |
|
Chassis type |
EQ1108G6DJ15 |
|
TractionT |
20 |
|
HoistingT |
5 |
|
LiftingT |
5 |
|
Parameters |
Overall dimension length/width/height (mm) |
7645×2480×2975 |
Total Mass(kg) |
10900 |
|
Payload(kg) |
1465 |
|
Kerb Mass(kg) |
9240,9890 |
|
Approach angle/ Departure angle(mm) |
30/16 |
|
Front suspension/rear suspension(mm) |
1250/1695 |
|
Fuel Type |
diesel |
|
Fuel Consumption/100 km |
18 |
|
Max Speed |
90 |
|
Engine |
Type |
EQB160-20 |
Displacement/Power(kw) |
5880/118(160ps) |
|
Manufacturer |
Dongfeng Commins Diesel Engine Co., Ltd |
|
Type |
4-in-line |
|
Chassis |
Drive type |
4×2 |
Wheelbase(mm) |
4700 |
|
Tread(front/rear) |
1900/1800 |
|
Front axle |
3.6T |
|
Rear axle |
9T |
|
Steering gear |
Duel-armed steering wheel, power steering |
|
Transmission |
6 gear mechanical drive transmission |
|
Clutch |
Diaphragm clutch, hydraulic remote control, pneumatic servo |
|
Braking system |
Split air braking system, spring braking, exhaust braking |
|
Cab |
Non-longheaded, one and a half row cab,whole metal-enclosed |
|
Tire Type |
9.00-20-12PR |
|
Air-condition |
Choose to fix |
|
Function brief introduction
Main features are: Equipped with hydraulic pressure system, neat-structured, flexible and reliable.
The crane, which functions with single vat, can be landed to support the truck and guarantee the trucks stability. It can be equipped with either semi-automatic or fully automatic tugboat.
The capstan can be driven either by hydraulic pressure or power supply of the truck itself. Accessories for clearing the barriers are sound-equipped to secure the efficient work. The traction supporting crane operated by the hydraulic pressure system is highly flexible.
The assistant wheel can hold the locked wheels to tract.
It is also equipped with high-latitude signal lamp. Searching lamps can also be equipped to guarantee night barrier-cleaning work.
Tools operated by high pressure for dismantling barriers can be equipped to do saving activities on spot.
