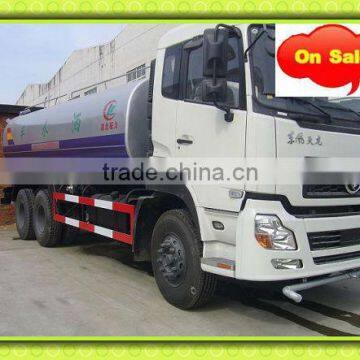

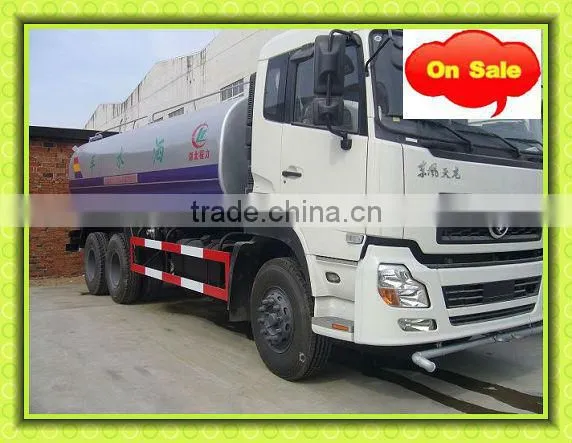

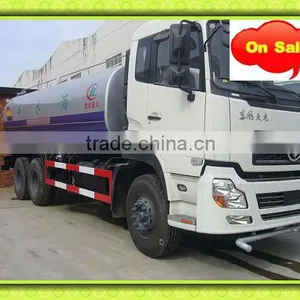

20CBM truck tank,water tank truck, water tanker truck,mini water tanker truck

Product

 Dongfeng 1208 truck tank

Chassis type

 EQ1254VJ/EQ5253GFJ

Cubage

    (T )

18-20

Parameters

Overall dimension length/width/height (mm)

 9800×2470×2850

GVW(kg)

25000

Kerb Mass(kg)

10850

Approach angle/ Departure angle(mm)

22/14

Front suspension/rear suspension(mm)

1245/2905

Fuel Type

 diesel

Fuel Consumption/100 km

24

Max Speed

85

Engine

Type

 EQB210-20

Displacement/Power(kw)

5880/155

Manufacturer

Dongfeng Cummins Engine Co.,Ltd

Type

  6-in-line

Chassis

Drive Type

6*4

Wheelbase(mm)

4350+1300

Tread(front/rear)

 1940/1860

Front axle

 5Ton

Rear axle

 Double 10Ton

Steering gear

 Duel-armed steering wheel, recirculation ball steering

Transmission

 5 forward gear,1 reverse gear, mechanical transmission

Clutch

 Uniwafer, dry diaphragm spring clutch

Braking system

 Brake fluid system, drum brake Chose to fix air braking.

Cab

 Non-longhead, one and half row

Number of spring axle(front/rear)

 8/13

Tire Type

10.00-20

Air-condition

Choose to fix

Watering system

 pump

Self-priming centrifugal pump

Special performance parameters

Watering width

≥15

Watering gun range

≥28

Vertical suction range

≥7

Watering pressure

250-450KPa

Watering

0.2-2l/

Pump lift

90m

Suction time

<5min

Flow rate

60 m3/h
