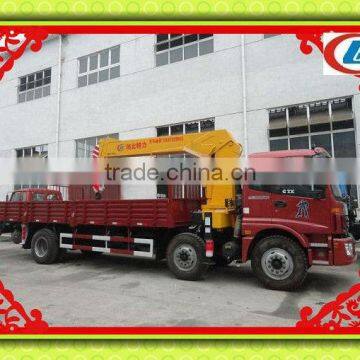

Foton 6x2 Lorry Mounted Crane,truck With Crane,special Construction Vehicle

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Transmission Type:

Manual

Emission Standard:

Euro 3

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Dimensions (L x W x H) (mm) 10990*2495*3620

Gross Vehicle Weight 20495

Place of Origin Hubei, China

Brand Name CLW

Model Number BJ5202JSQ1

Specifications

Foton 6x2 lorry mounted crane
1.FOTON
2.6X2
3.1-16T crane
4.OEM

Foton 6x2 lorry mounted crane

Item		unit	parameter
Vehicle model			BJ5202JSQ1 Truck With Crane
Chassis model			BJ1202V6PDC-E1
Overall dimensions		mm	10990×2495×3620
	Fact loading	kg
	GVW	kg	Appro×20495
	Rated loading capacity		Appro×7990
	Mass in working order		Appro×12310
	Body internal dimensions	mm	7620×2400×600
	Wheel base		1860+4800
	F/R track base		1880/1860
	Approach/departure angle	°	24/18
Exhaust/hp		ml/kw	6494/162
Max speed		km/h	80
Tire specification		10.00-20,10.00R20	Engine type	YC6J220-33
Traction system		6X2	Tire number	8
Number of axles		3	&leaf spring piece count	10/10/10+9
Shaft jose		5300/5300/9895	Allowable passengers in cab	3
Equipment		Crane can be selected Hydraulic valve is universal in the world on the safe side;three point floating type to protect crossbeam of the truck;all hydraulic pressure and 360°turning;new H-shape type; high precise drawn tube;24°tie-in.
