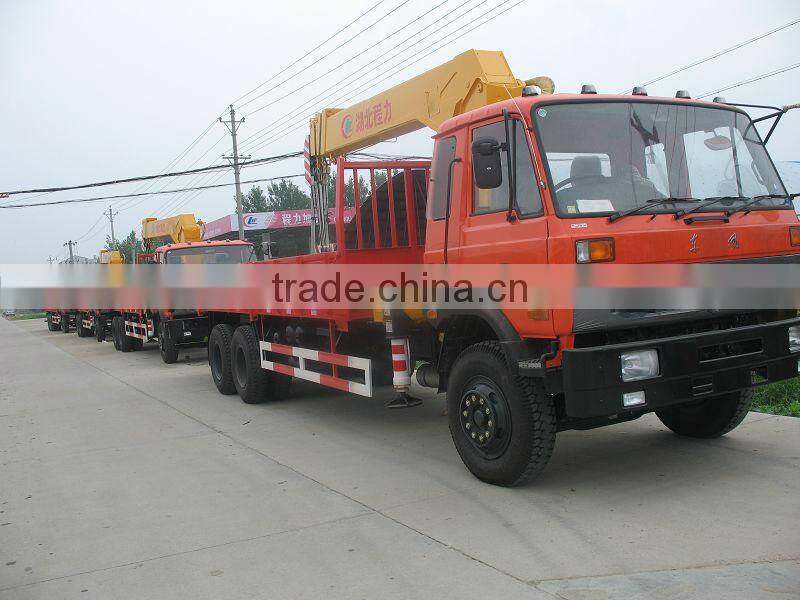

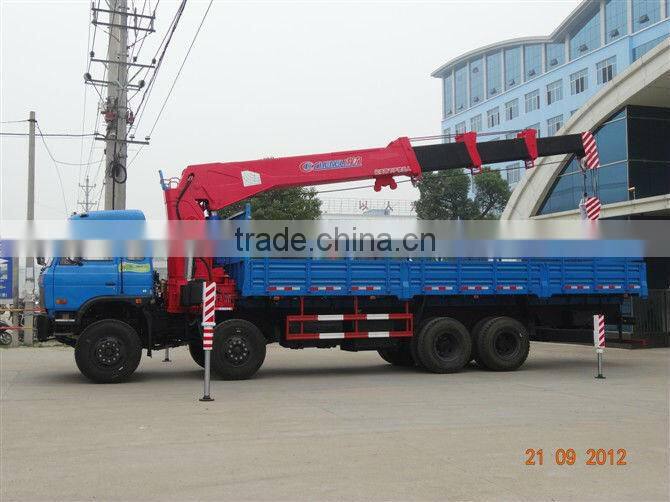

Dongfeng 8x4 Truck With Crane,truck With Loading Crane,crane Truck With Flatbed

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

all fielids

Rated Loading Capacity:

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application all fielids

Rated Loading Capacity 8t

Rated Lifting Moment 12.5

Max. Lifting Load 8t

Max. Lifting Height 14

Span 5.6

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW

Certification ISO

After-sales Service Provided Overseas service center available

Specifications

dongfeng 8x4 truck with brick crane,truck with loading crane
1. donfeng 8x4 chassis;
2. 8t crane;
3.cummins
4.OEM

dongfeng 8x4 truck with brick crane,truck with loading crane

Truck Main details:

Main Technical Parameter of Dongfeng 8*4 Heavy Duty Truck With Crane 10Ton
Product Name	Dongfeng Heavy Duty Truck with Crane	*Overall Dimension(LWH)(mm)*	11980×2490×3850
Wheelbase(mm)	1950+4050+1300	*Compartment Dimension(LWH)(mm)*	8200×2294×800
F/ R suspension(mm)	1205/3275	Brake System	Air brake
Number of Axles	4	Front/Rear tread(mm)	1950/1950 , 1860/1860
Gross weight (kg)	30900	F/R axle load(Kg)	6450/6450/18000(rear two axles combined)
Actual Payload(kg)	14105	Max Speed (km/h)	90
Curb weight(kg)	16600	Cab capacity	3
Approach/ departure angle (° )	34/11	Cab Type	Flat proof
Chassis Model	EQ5311GFJ	Chassis manufacturer	Dongfeng Motor
Gear Box	Dongfeng 9 shift	Transmission type	Manual
Steering Type	LHD(optional RHD)Power steering	Traction Type	8*4
Frame type	Side rails	Rear axle	Dongfeng Dena
Leaf Spring number	9/9/10	Tire size/type	11.00-20,11.00R20
Engine Model	ISDe245 30	Engine manufacturer	Dongfeng Cummins
Fuel type	diesel	Displacement(ml)	6700
Emission stand	Euro 3	Power(kw)	180(245hp)
Operation System	Electrically Hydraulic Control	Electric system	24V
