Truck With Crane,12~16 Crane, 6x4 Driven Sytem,truck With Arm Crane

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

all fielids

Rated Loading Capacity:

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application all fielids

Rated Loading Capacity 8t

Rated Lifting Moment 12.5

Max. Lifting Load 8t

Max. Lifting Height 14

Span 5.6

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW

Certification ISO

Specifications

Truck with Crane,12~16 Crane, 6x4 driven sytem,truck with arm crane
1. donfeng 6x4 chassis;
2. 8t crane;
3. cummins diesel

Truck with Crane,12~16 Crane, 6x4 driven sytem,truck with arm crane

Truck Main details:

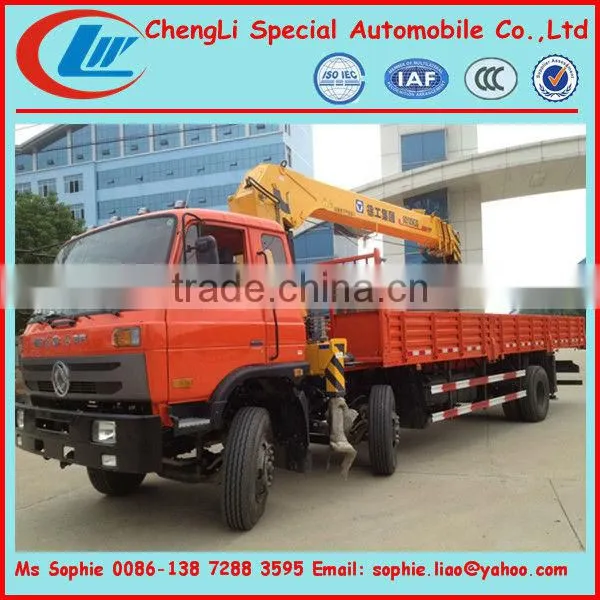

Dongfeng 6x4 truck mounted crane (8T)
Model	DLQ5252JSQ	Dimension	11945×2500×3850 (mm)
Chassis type	EQ1258KB3GJ1	Cargo body size	8500×2294×550 (mm)
Total mass	25000 (kg)	Approach / departure angle	32/12 (°)
Rated payload	12000 (kg)	F/R suspension	1245/3500 (mm)
Kerb weight	12805 (kg)	Maximum speed	85 (km/h)
Engine	B220 30
Displacement	5900 (ml)	Power	162 (kw)
Manufacturer	Dongfeng Cummins Engine Co., Ltd.
Emission standard	GB3847-2005,GB17691-2005 EURO3
Number of the axles	3	Front tread	1940 (mm)
Wheel base	5370+1300 (mm)	Rear tread	1860/1860 (mm)
Number of the tires	10	Tire type	10.00-20
Fuel type	Diesel	Number of the springs	8/13
Axle load	7000/18000	Cab Passengers	3
