Specifications
good quality hydraulic arm crane for trucks1.dongfeng 8x4 new cabin;
2.diesel cummins engine, 260hp

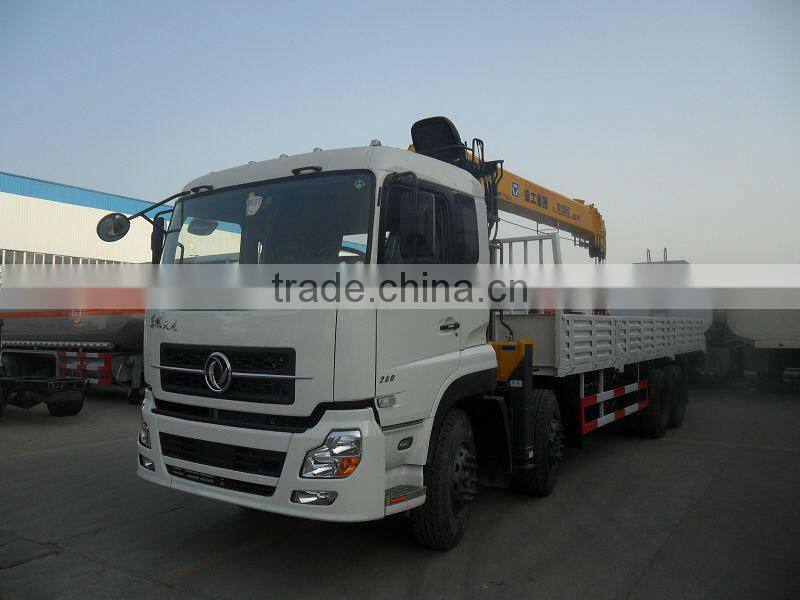

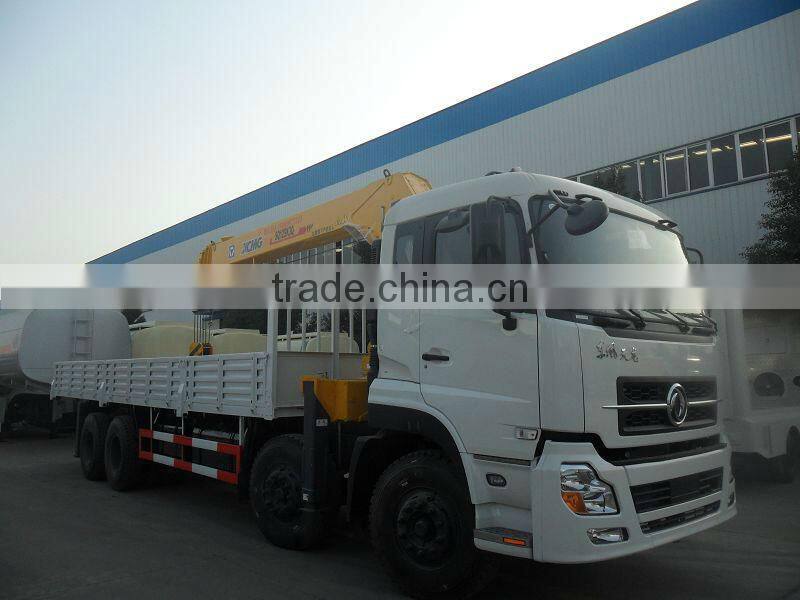

good quality hydraulic arm crane for trucks
1.dongfeng 8x4 new cabin;
2.diesel cummins engine, 260hp
HuBei chengli special automobile Co.,Ltd is a heavy automobile manfacture , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers and has cooperated with nearly 100 foreign customers from Africa, South Africa, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market. The company mainly deals with various heavy automobiles, refitting vehicles and various engineering machines. The heavy automobiles include Shaanqi series, Sinotruck series and the refitting vehicles include cement mixers, bulk cement trucks, various tank trucks and vans, etc. Besides, the company is an authorized dealer of Sinotruck, Shaanqi, Special Truck Company, CNHTC, CIMC Container Manufacture Co., Ltd., Zhongtong and other heavy automobile manufacturers and refitting enterprises. The company has established many offices at broad, achieving the so-called “bringing in and going out”.
Pls find the data parameter as below
Overall dimension(mm) |
12000×2490×3850 |
G.V.W(Kg) |
31000 |
Load capacity(kg) |
14105,14305 |
Curb weigh(Kg) |
16700,16600 |
Engine model |
Engine manufacrurer |
Emission |
Power |
|
YC6A260-31 C260 33 |
Guangxi Yuchai diesel engine company Dongfeng Cummins diesel engine company |
7255 8300 |
191 191 |
Axle number |
4 |
Axle load(Kg) |
6500/6500/18000 |
Rear wheel distance(mm) |
1860/1860 |
Frontwheel distance(mm) |
1980/1980 |
Tyre specification |
10.00-20,10.00R20, 11.00-20,11.00R20 |
Wheelbase(mm) |
2100+4250+ |

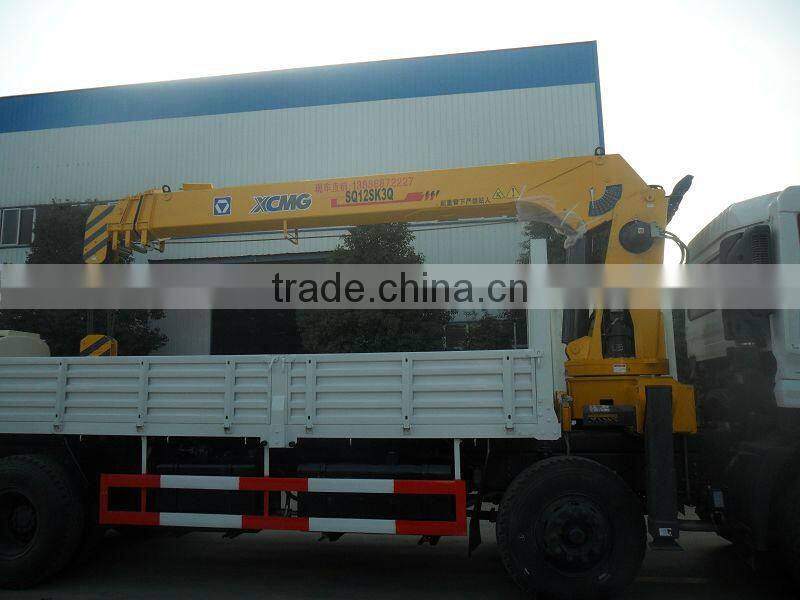

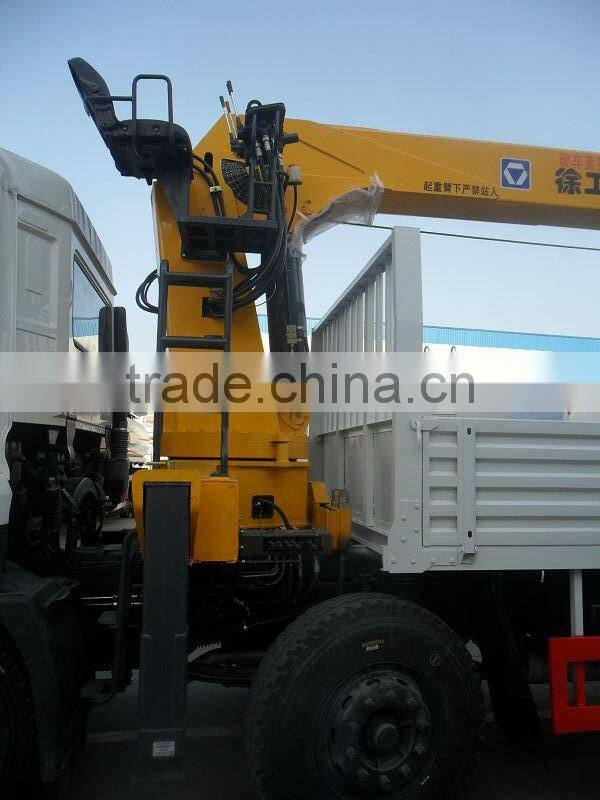

Technical patameters of crane:
Crane Model. |
SQ16SA3 |
|||||||||
Max Lifting Weight(kg) |
16000 |
|||||||||
Max Lifting Moment(N.m) |
376000N.m |
|||||||||
|
Boom
|
Section Form |
pentagon |
Slewing Mechanism |
Slewing Angle Range(°) |
±360 |
|||||
Boom QTY. |
4 |
Slewing Speed r/MIN |
2 |
|||||||
Boom Telescope Speed(m/s) |
6.8/35 |
Crane Leg |
Leg Style |
H Leg |
||||||
Boom Lifting Speed(°/s) |
70/22 |
Span(m) |
2.2~7.2 |
|||||||
Max Working Radius(m) |
15 |
Hydraulic Space
|
Pressure (Mpa) |
24 |
||||||
Boom Length(m) |
4.5~15 |
Oil Tank Volume(L) |
180 |
|||||||
Max Lifting Height(m) |
17 |
Dead weight(kg) |
4200 |
|||||||
|
Single Rope Allowable Tension(N) |
22000 |
Matching Chassis |
Above 12 tons chassis |
|||||||
Table of comparisons about lifting capacity | ||||||||||
Working Radius(m) |
2.5 |
5.5 |
8.5 |
10.5 |
15 |
|||||
Rated Capacity(kg) |
16000 |
7000 |
4000 |
1500 |
800 |
|||||
Pls find my contacts below ,if you have any problem pls feel free to contact us,we are pleasure to hear from you
