Specifications

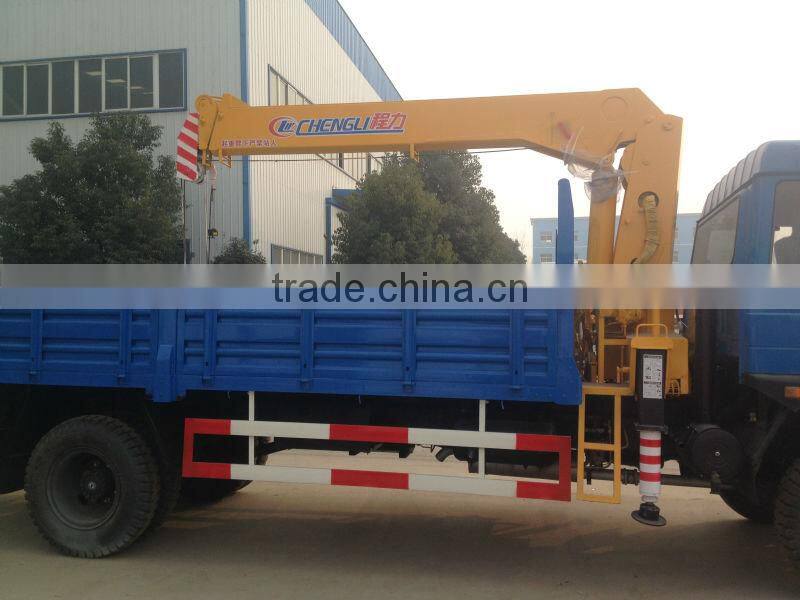

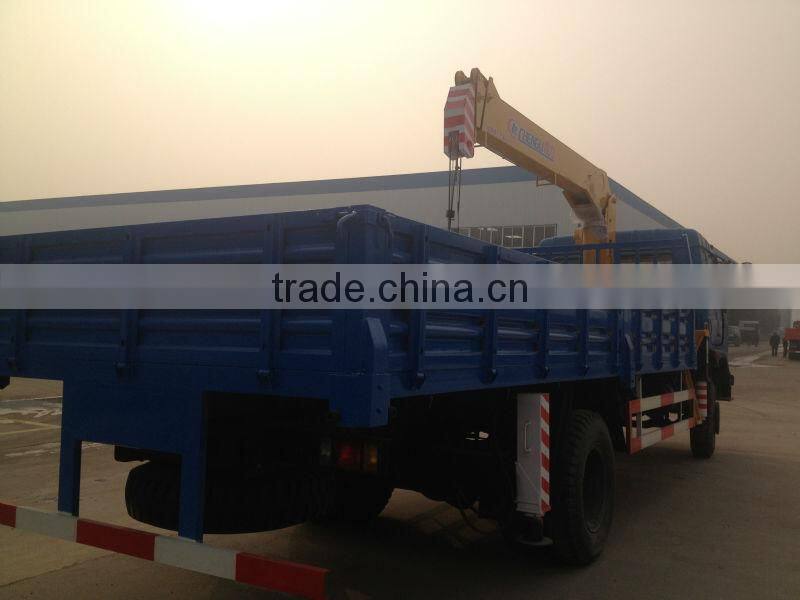

Dongfeng truck crane with 6-7T factory direct1.Weightlifting 6.3 tons
2.four straight arms
3.Lift height
Dongfeng truck crane with 6-7T factory direct
1.Weightlifting 6.3 tons
2.four straight arms
3.Lift height
HuBei chengli special automobile Co.,Ltd is a heavy automobile manfacture , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers and has cooperated with nearly 100 foreign customers from Africa, South Africa, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market. The company mainly deals with various heavy automobiles, refitting vehicles and various engineering machines. The heavy automobiles include Shaanqi series, Sinotruck series and the refitting vehicles include cement mixers, bulk cement trucks, various tank trucks and vans, etc. Besides, the company is an authorized dealer of Sinotruck, Shaanqi, Special Truck Company, CNHTC, CIMC Container Manufacture Co., Ltd., Zhongtong and other heavy automobile manufacturers and refitting enterprises. The company has established many offices at broad, achieving the so-called “bringing in and going out”.
Pls find the data parameter as below
Item |
unit |
parameter |
|||
Vehicle model |
XZJ5102JSQ Truck With Crane |
||||
Chassis model |
EQ1108G6DJ16 |
||||
Overall dimensions |
mm |
7220,7370×2470×3320,2920,3120,3370 |
|||
Fact loading |
kg |
5000 |
|||
GVW |
kg |
Appro×10300 |
|||
Rated loading capacity |
Appro×3505 |
||||
Mass in working order |
Appro×6600 |
||||
Body internal dimensions |
mm |
3950,4100,3700×2294×550 |
|||
Wheel base |
3950 |
||||
F/R track base |
1900/1800 |
||||
Approach/departure angle |
° |
30/18 |
|||
Exhaust/hp |
ml/kw |
5880/118 |
|||
Max speed |
km/h |
90 |
|||
Tire specification |
9.00-20,9.00R20 |
Engine type |
EQB160-20 |
||
Traction system |
4×2 |
transmission |
6-speed with over drive |
||
Number of axles |
2 |
Electric system |
24v |
||
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
||
Equipment |
Hydraulic valve is universal in the world on the safe side;three point floating type to protect crossbeam of the truck;all hydraulic pressure and 400°turning;new H-shape type; high precise drawn tube;24°tie-in. |
||||
Engine |
DongFeng Cummins Environmental Protection,supercharge,diesel engine |
||||
Production cycle |
5-6 days |
||||
Warranty |
12 month,from the date of supply |
||||
