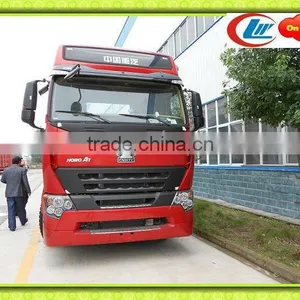

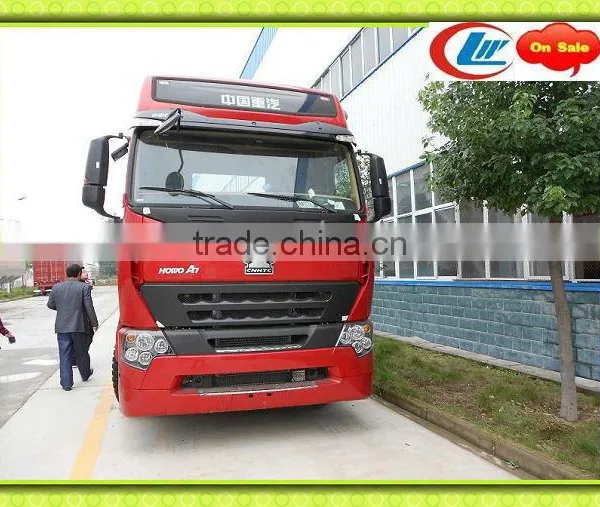

Sinotruck new HOWO A7 port tractor truck,tractor truck 6x4

Specifications

Sinotruck new HOWO A7 port tractor truck
1:High load capacity
2.low fuel consumption
3:Good quality
4. competitive

Sinotruck new HOWO A7 port tractor truck



Product nanme		A7 6*4 series tractor
Size parameters	Long	6865mm
	Wide	2480mm
	High	3120mm	High floor flat roof cab (no diversion cover)
		3540mm	High floor flat roof cab (with diversion cover)
		3745mm	High floor flat roof cab (no diversion cover)
		3850mm	High floor flat roof cab (with diversion cover)
	Front overhang/Rear overhang	1540/750,725mm(HW16 drive axle)
	Wheelbase	3200+1400(HW16 drive axle)/3225+1350mm
	Tread	Fronttrack	2022mm
		Rear wheel between	1830mm
Vehicle configuration	Cab	New series A7 cab,four suspension,steering wheel angle,the height is adjustable, the drive seat,central air lock,electric lift glass rearview mirror
	Engine	New CNHTC's D12 series engine,turbocharged inter-cooled,fuel the high pressure common rail fuel injection,highest pressure 1600 bar.Countries 3 emissions. Power 340 460 horsepower;Optional D10 serise engine.
	Clutch	CNTCH's 430 diaphragm clutch
	Gearbox	CNTCH's HW20716A transmission,match with Smart intelligent Shift hand from a body Shift system
	Front axle	New HW07 front axle,disc brakes;Rated load 7000 kg
	Rear axle	HW series single stage to slow down driving axle;Optional ST16 series double level in drive slow down
	Tires	315/80 R22.5 tubeless tires
	Braking system	QianPan HouGu braking,four loop BaoHuFa,engine EVB braking,ABS+ASR+EBL+TPM
	Carframe	High strengh material single frame,section 300 X90X8
	Electrical system	24 V control is,CAN line instrumentation and control system
