Dongfeng Vacuum Sewage Truck,sewage Suction Truck,used Vacuum Trucks

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Transmission Type:

Manual

Condition:

New

Emission Standard:

Euro 3

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Transmission Type Manual

Condition New

Emission Standard Euro 3

Fuel Type Diesel

Tank Volume 8000L

Dimension (L x W x H) 7500*2470*3200

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW5140GXWT3

Horsepower 190

Gross Vehicle Weight 14490

Specifications

Dongfeng vacuum sewage truck
1. Loading capacity: 8,000 liters
2. Engine power: Cummins 190 hp
3.Dimension: 7500x2470x3200m

Dongfeng vacuum sewage truck

Detailed Product Description

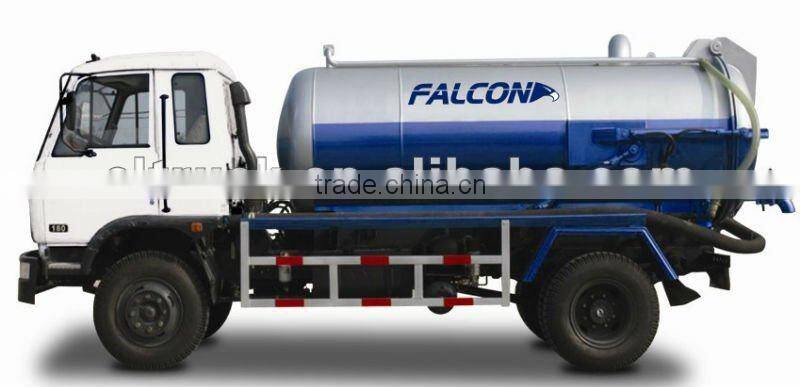

Dongfeng vacuum sewage truck
Loading capacity: 8,000 liters
Engine power: Cummins 190 hp
Dimension: 7500×2470×3200mm

The Sewage Suction truck Mainly is suitable in the sewer,the rain water well,the inspection well

Product	Dongfeng Sewage Suction Truck
Chassis type	EQ5161GFJ
Cubage	8000L
Parameters	Overall dimension length/width/height (mm)	7500×2470×3200
	Total Mass(kg)	14490
	Kerb Mass(kg)	7600
	Approach angle/ Departure angle(mm)	25/18
	Front suspension/rear suspension(mm)	1250/1750
	Fuel Type	diesel
	Max Speed	85
Engine	Type	B190-33 Cummins six-cylinder inner-cooling supercharged diesel engine
	Displacement/Power(kw)	5900/140(190HP)
	Manufacturer	Dongfeng Cummins six-cylinder inner-cooling supercharged diesel engine
	Type	6-in-line
Chassis	Drive type	4×2
	Wheelbase(mm)	4500
	Tread(front/rear)	1940/1860
	Front axle	5T
	Rear axle	10T
	Steering gear	Duel-armed steering wheel, power steering
	Transmission	6 gear mechanical drive transmission
	Clutch	Diaphragm clutch, hydraulic remote control, pneumatic servo
	Braking system	Split air braking system, spring braking, exhaust braking
	Cab	Non-longheaded, one and a half row cab,whole metal-enclosed
	Number of spring axle(front/rear)	8/10+8
	Tire Type	10.00-20
	Air-condition	Choose to fix
Sucking system	Sucking pump	Sliding-vane rotary vacuum pump
Special performance parameters	Vertical suction range	≥8
	Absolute pressure	8500Pa
	Theory pumping speed	98L/S
	Axis power	5.5kw
	Vent diameter	50mm
	Suction Time	5s
	Drain time4s	4s
