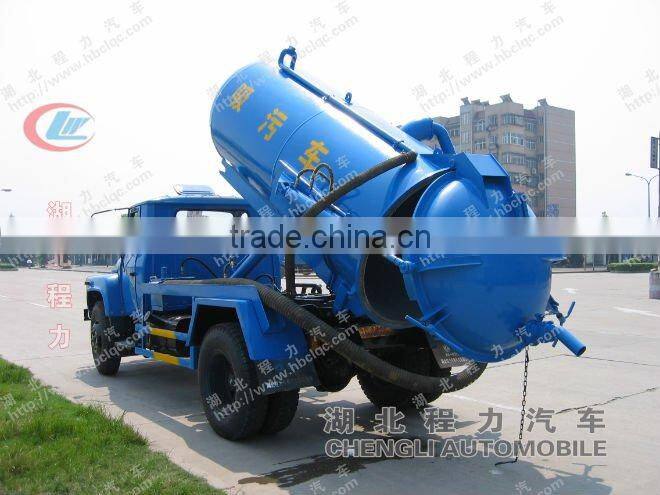

4*2 Long Head Sewage Suction Truck for Sale

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Transmission Type:

Manual

Condition:

New

Emission Standard:

Euro 3

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Transmission Type Manual

Condition New

Emission Standard Euro 3

Fuel Type Diesel

Tank Volume 4410L

Dimension (L x W x H) 6965*2470*2850mm

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW5100GXWT3

Horsepower 140hp

Gross Vehicle Weight 9950

Specifications

4*2 long head sewage suction truck for sale
1.Drive type: 4*2
2.Engine power: 140hp
3.Effective cubage: 4410L

4*2 long head sewage suction truck for sale

Specifications:

Product	Sewage Suction Truck
Vehicle model	CLW5100GXWT3
Chassis model	EQ1102FLJ5
Gross weight	9950kg
Chassis parameters	Overall dimensions	mm			6965×2470×2850
	Tank dimensions				2950×1400
	Kerb weight	kg			5555
	Rated payload				4200
	Approach/Departure angle	°			34/17
	Suspension F/R	mm			1065/1950
	Wheel base				3950
	F/R tread				1810/
	Drive type				4*2
	Number of axles				2
	Axle-load	Kg			3400/6550
	Number of Spring leafs				9/12+9
	Clutch				uniwafer ,dry clutch, hydraulic remote control
	Braking system				Air braking
	Steering gear				recirculating ball type steering wheel
	Tire specification				9.00-20
	Number of Tires				6
	Electric system				24v
	Allowable passengers in cab				3
	Air-condition				Optional
Engine	Engine model				YC4E140-30
	Type of fuel				Diesel
	Displacement			ml	4260
	Hp/Power				140/105
	Operation control system				Power Steering
	transmission				6-speed with over drive
	Max speed		Km/h		85
	Manufacturer				Guangxi Yuchai Co., Ltd
	Emission standard(TAS)				EURO 3
Special performance & Equipment	1, Equipped with vacuum pump(rating rotate speed=1400r/m, min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) 2, Equipped with power take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment 3, Time for full suction<5min
Production cycle	7-10
