Home > Transportation > Truck > Other Trucks > Dongfeng Mini Road Sweeper Truck,small Sweeper Truck,new Sweeper Truck

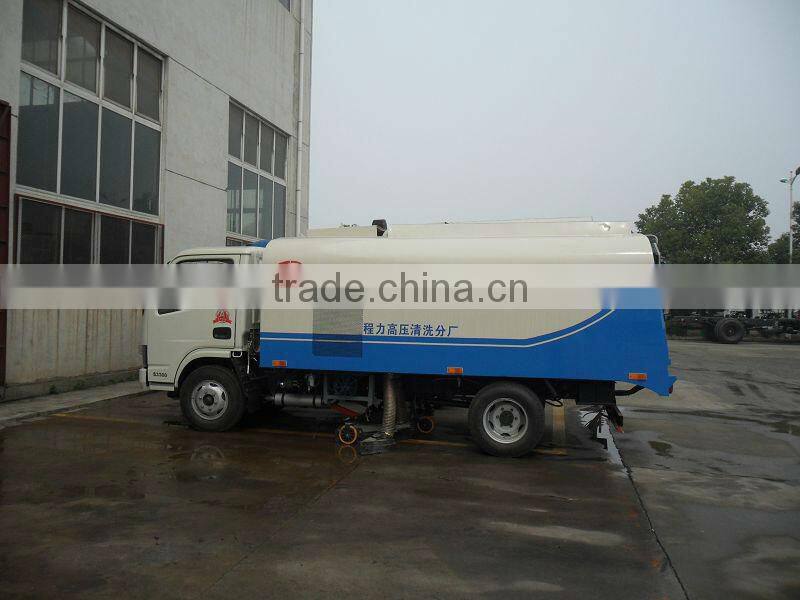

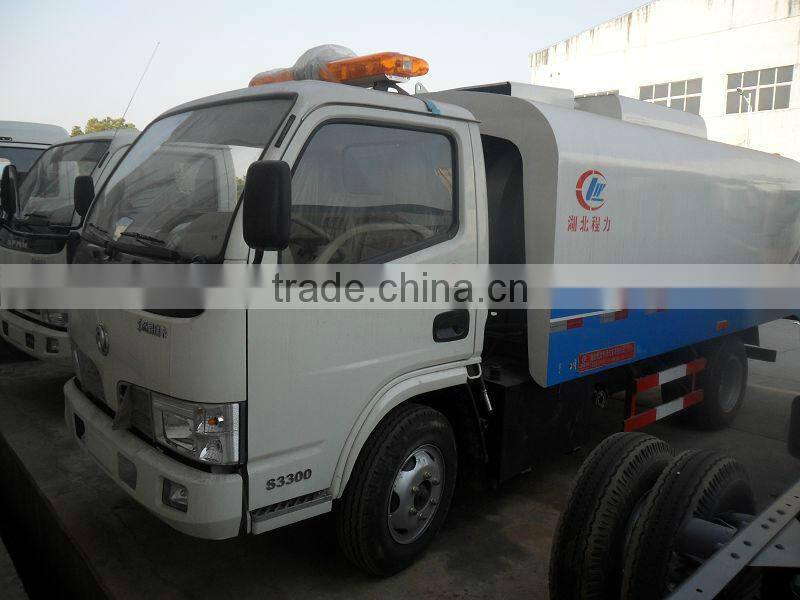

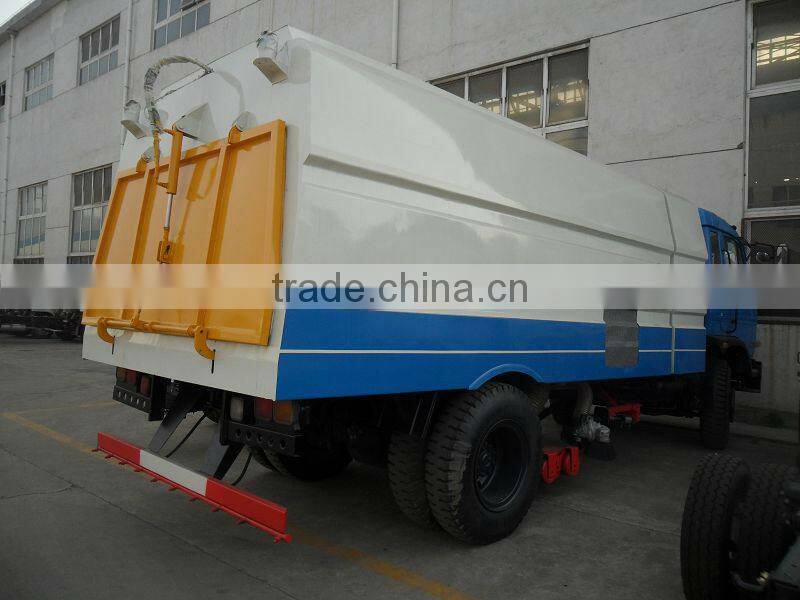

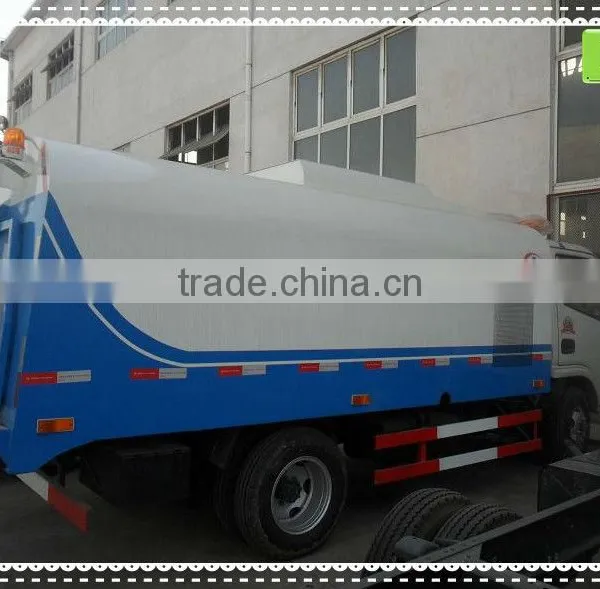

Dongfeng Mini Road Sweeper Truck,small Sweeper Truck,new Sweeper Truck

Chengli Special Automobile Co., Ltd.

Dongfeng Mini Road Sweeper Truck,small Sweeper Truck,new Sweeper Truck photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Transmission Type:

Manual

Emission Standard:

Euro 3

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Dimensions (L x W x H) (mm) 6500* 1980 *2380

Gross Vehicle Weight 3500

Place of Origin Hubei, China

Brand Name CLW

Model Number EQ1061TJ21D5

Specifications

dongfeng mini road sweeper truck
Sweeping Road and Sucking dust/garbage
High efficiency and strong practicality
5m3
OEM

dongfeng mini road sweeper truck
Sweeping Road and Sucking dust/garbage
High efficiency and strong practicality
5m3

Pls find the data parameter as below

Basic Information	Outline size (L×W×H) mm		6500× 1980 × 2380
	capacity (litre)	5000-6000	Empty mass weight (Kg)		3500
Chassis Information	Chassis model	EQ1061TJ21D5
	Driving Directions	left hand drive
	Wheel base(mm)	3800		Max speed(km/h)	95
	Tire specification	7.00-16		Approach/departure angle ( o )	20/16
	Front track base(mm)	1586		Rear track base(mm)	1530
	Traction system	4×2		Transmission	6-speed
	Number of axle	2		Electric system	24v
	Operation control system	Steering wheel		Allowable passengers in cab	3
Engine Information	Engine Model	CY4102BZQ
	Power/displacement(KW/ML)	88(120hp)/ 3856
	Engine Manufacture	Dongfeng Chaoyang Diesel Engine (EuropeII)
Equipment	The vehicle-specific set feature of sweeping, cleaning, watering in one, and the operation is simple.
	Sweep width: 3000 mm, cleaning capacity: 40000-60000m2 / h, cleaning speed: 3-20km/h , Cleaning Efficiency: 90%; maximum inhalation size: 120mm; nozzle minimum ground clearance: 200mm

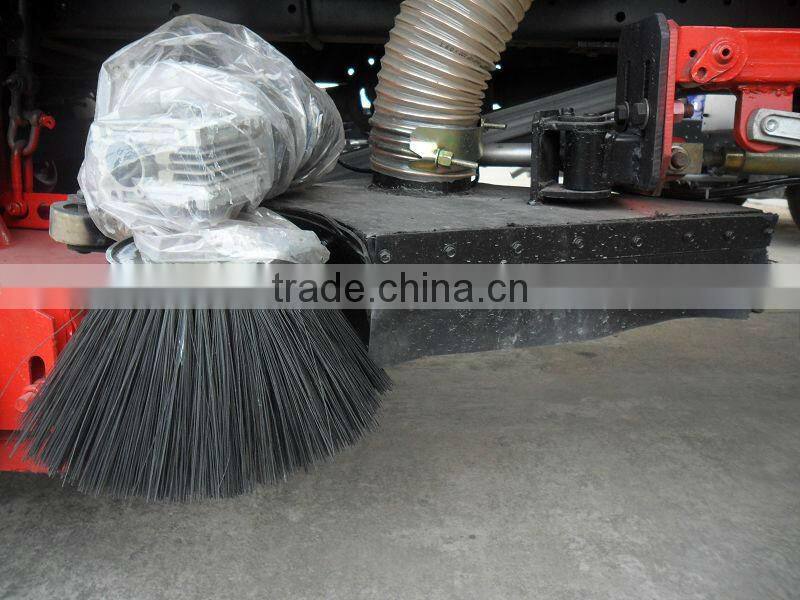

	Sweeping vehicle with brush 4, cleaning stainless steel tanks, bellows
	Equipped with operating system

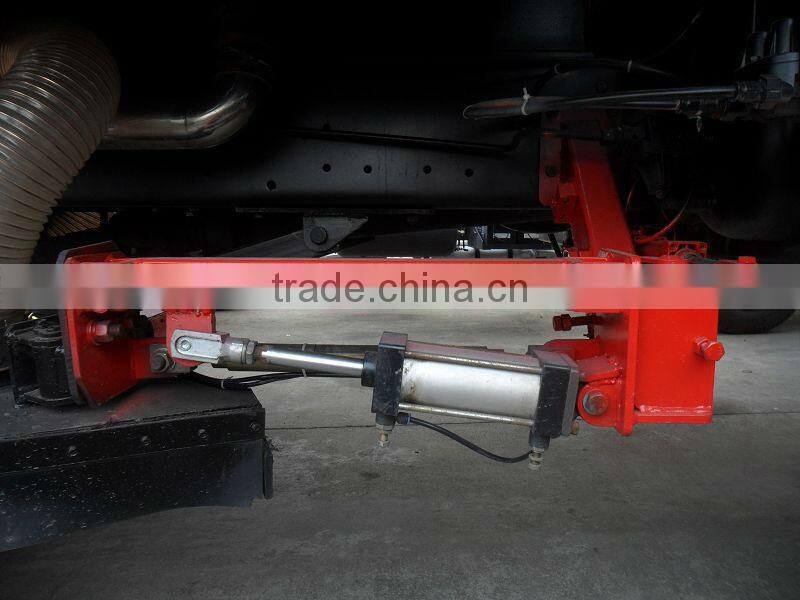

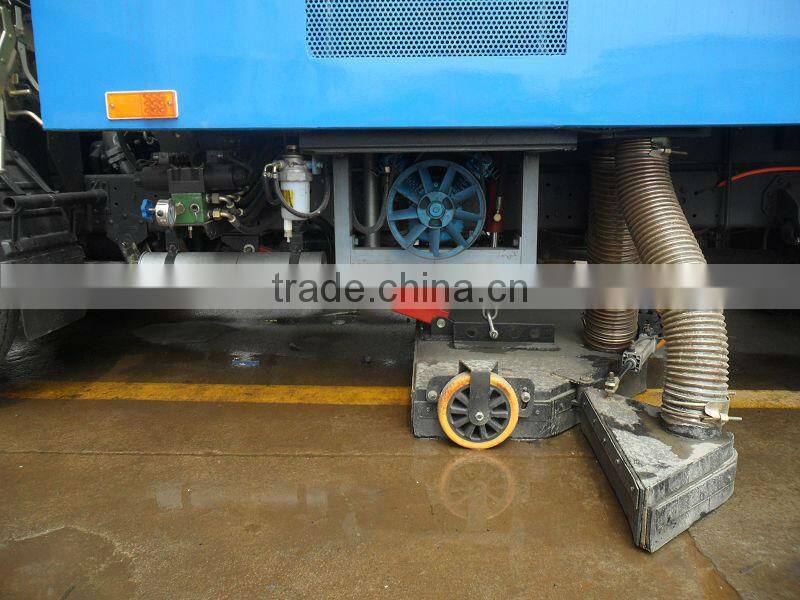

Work principle	Install four rotating brushes, when the vehicle forward the rubbish and sand will be brought by rotating brushes to the in the middle of the vehicle, with the use of the vacuum suction head ,the rubbish and sand pumping into the waste collection tank in the box. Installed a rubbish bin (containing water tank), install an engine as a power source, equipped with twin hydraulic pumps, hydraulic control systems, hydraulic actuator, respectively, to make the driven fans, sweeping brushes, suction cups, pumps, bins and so on to work
