dongfeng xbw road sweeping truck,road marking truck,road maintenance truck

Name: dongfeng xbw road sweeping truck,road marking truck,road maintenance truck
Brand: CLW
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port any port in China
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Transmission Type:	Manual	Emission Standard:	Euro 3
Fuel Type:	Diesel	Dimensions (L x W x H) (mm):	6500* 1980 *2380	Gross Vehicle Weight:	3500
Place of Origin:	Hubei, China	Brand Name:	CLW	Model Number:	EQ1061TJ21D5

Product Description

Specifications

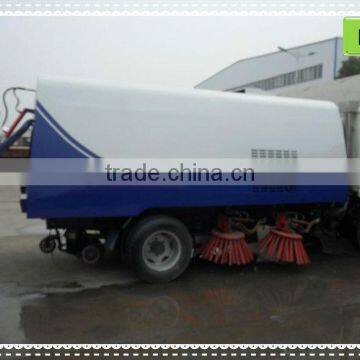

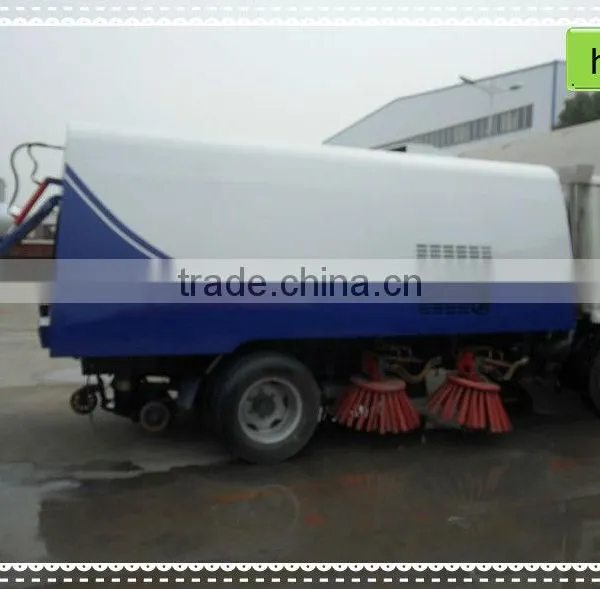

dongfeng xbw road sweeping truck
Sweeping Road and Sucking dust/garbage
High efficiency and strong practicality
5m3
OEM

dongfeng xbw road sweeping truck
sweeping Road and Sucking dust/garbage
High efficiency and strong practicality
5m3

Pls find the data parameter as below

Basic Information	Outline size (L×W×H) mm		6500× 1980 × 2380
	capacity (litre)	5000-6000	Empty mass weight (Kg)		3500
Chassis Information	Chassis model	EQ1061TJ21D5
	Driving Directions	left hand drive
	Wheel base(mm)	3800		Max speed(km/h)	95
	Tire specification	7.00-16		Approach/departure angle ( o )	20/16
	Front track base(mm)	1586		Rear track base(mm)	1530
	Traction system	4×2		Transmission	6-speed
	Number of axle	2		Electric system	24v
	Operation control system	Steering wheel		Allowable passengers in cab	3
Engine Information	Engine Model	CY4102BZQ
	Power/displacement(KW/ML)	88(120hp)/ 3856
	Engine Manufacture	Dongfeng Chaoyang Diesel Engine (EuropeII)
Equipment	The vehicle-specific set feature of sweeping, cleaning, watering in one, and the operation is simple.
	Sweep width: 3000 mm, cleaning capacity: 40000-60000m2 / h, cleaning speed: 3-20km/h , Cleaning Efficiency: 90%; maximum inhalation size: 120mm; nozzle minimum ground clearance: 200mm
	Sweeping vehicle with brush 4, cleaning stainless steel tanks, bellows
	Equipped with operating system
Work principle	Install four rotating brushes, when the vehicle forward the rubbish and sand will be brought by rotating brushes to the in the middle of the vehicle, with the use of the vacuum suction head ,the rubbish and sand pumping into the waste collection tank in the box. Installed a rubbish bin (containing water tank), install an engine as a power source, equipped with twin hydraulic pumps, hydraulic control systems, hydraulic actuator, respectively, to make the driven fans, sweeping brushes, suction cups, pumps, bins and so on to work

1. Contact Information

2. Factory Certifications

3. Production / Trucks Pictures:

Contact Us

Chengli Special Automobile Co., Ltd.: Contact nameSophie Liao; Phone86-722-3801001; AddressSouth Suburb chengli automobile indust park,suizhou City,Hubei China Suizhou,Hubei
