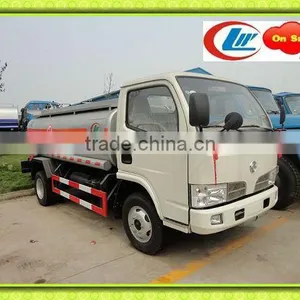

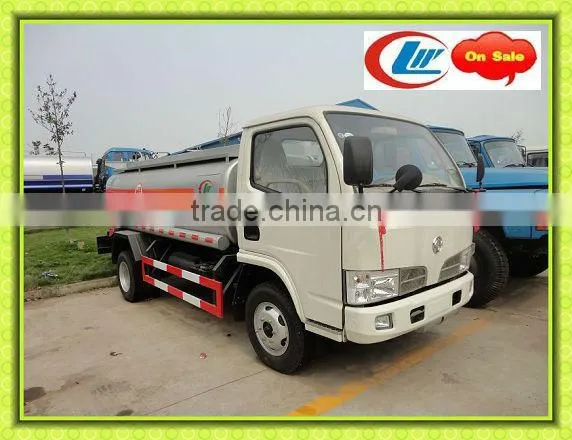

4-5 Cubic Oil Tank Truck,fuel Tank Truck

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Storage:

Oil

Drive Wheel:

4x2

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai or Any prot of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Storage Oil

Drive Wheel 4x2

Horsepower 150 - 250hp

Transmission Type Manual

Fuel Type Diesel

Tank Volume 5001 - 10000L

Engine Capacity 3298

Dimensions (L x W x H) (mm) 5710x2000x2300

Brand Name CLW

Place of Origin Hubei, China

Model Number CLW5060GJY

Gross Vehicle Weight 6225

Specifications

4-5 Cubic Oil Tank truck
1.Water truck with CCC certificate
2.Water truck with ISO9000
3.good price and diesel
4.OEM

4-5 Cubic Oil Tank truck

Item	unit	parameter
Vehicle model		CLW5060GJY Tank truck
Chassis model		EQ1061T14DJ2A
Overall dimensions	mm	5710×2000×2300
Body internal dimensions		3600/1480/950
Fact cubage	L	4000-5000
GVW	kg	Appro×6225
Rated loading capacity		Appro×1980
Mass in working order		Appro×4115
Wheel base	mm	3000
F/R track base		1380,1404/1458,1458
Front/rear overhang		962/1748
Approach/departure angle	°	19/15
Max speed	km/h	95
Engine
Engine model	Engine manufacturer		Exhaust	Power
CY4100ZLQ 4100QBZL	Dongfeng Chaoyang Diesel Engine Co., Ltd. Kunming Yunnei Engine Company Limited		3707 3298	70 70
Fuel type	Diesel		Number of axles	2
Axle-load	2100/4125		Pieces of spring	5/8+4,5/9,6/8+4
Number of tires	6		Tire specification	6.50-16,7.00-16
Equipment	Meterial:5mm carbon steel.can choose flow meter, tankerpiston and bobbin disk Tank can be separated to several unattached small tanks to fill different fuels
Introduction	The trucks are mainly used in the petrochemical sector of oil, chemical liquid transport, with oil, pump oil, a variety of oil equipment, sub-let and other functions. Independent sub-warehouses, equipment can be divided into different oil products, chemicals, food. Designed to achieve pump into pump-off form, into the pump, pump out the form, however, had artesian table, but the table functions.
Production cycle	5-7 days
