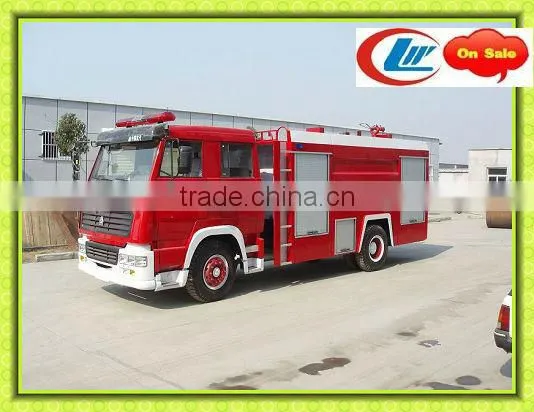

Sino 4x2 Mini Fire Truck, Fire Fighting Truck

US$ 20,999 - 99,999 MOQ: 1 Set

Key Specifications

Drive Wheel:

6x4

Type:

Tanker

Transmission Type:

Manual

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Type Tanker

Transmission Type Manual

Condition New

Horsepower 150 - 250hp

Emission Standard Euro 2

Fuel Type Diesel

Max. Work Height 50m

Size 9780*2500*3470

Place of Origin Hubei, China

Brand Name CLW

Model Number ZZ1257N4347C

Specifications

sino 4x2 mini fire truck, fire fighting truck
1.drive model: 4x2
2.water tank capacity:12T
3.Power:247KW
4.OEM

sino 4x2 mini fire truck, fire fighting truck

Chassis	Brand			sinotruck
	Chassis model			ZZ1257N4347C
	Drive model			6*4
	Tire			11.00-20
	Brake			Air brake
Engine	Model			WD615.95E
	Horse Power			335
	Displacement(ml)/Power(kw)			9726/247
	Emission			Euro Ⅲ
Main Parameter	Overrall dimension (MM)		LWH	978025003470
			wheelbase	4325+135
			Axles No.	3
	weight		GVW	25000
			Payload weight	11500
			Curb weight	13050
	Tank		Material	Carbon steel
			Thickness	5mm
			Capacity	12CBM Water tank + 3CBM foam tank
	Leaf spring No.			10/12
	Approaching/Departure Angle(°)			16/14
	Front/Rear trace(mm)			2022 /1830
	Front/Rear suspension(mm)			1500/2485
	Max speed(km/h)			85
	Gear box			8 speed
	Front/Rear Axle Load			7T/12T
Fire fighting monitor		Model:PL24, flow rate:24L/S, Pressure:1.0-1.2MPa Water range:≥50m, Foam range: ≥45m
Fire fighting pump		Pump model:CB10/30, flow rate: 30L/S, Pressure:1.0MPa, time of drawing water:≤50S Full Power PTO
Cab		Flat Roof Cab With A/C, double row
