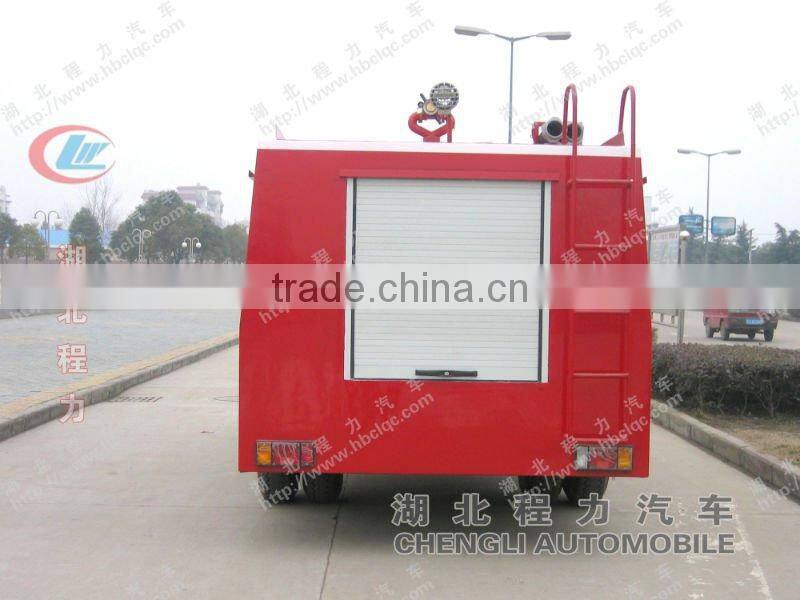

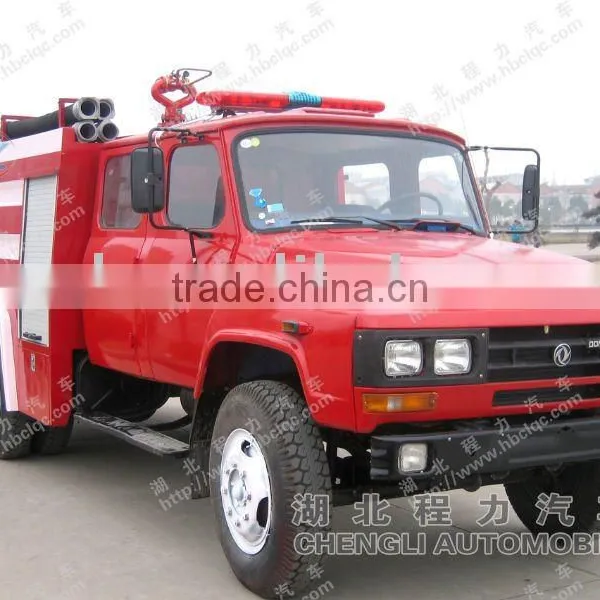

Dongfeng fire engine truck manufacturers
VEHICLE PARAMETERS :
Product | Dongfeng fire engine truck manufacturers | ||
Vehicle model | SGX5090GXFPM30GD | ||
Chassis model | EQ1092FJ | ||
Chassis parameters | Overall dimensions | mm | 7180×2400×3100 |
Gross weight | kg | 9095 | |
Curb weight | 5645 | ||
Rated payload | 6000 | ||
Suspension F/R | mm | 1065/2045 | |
Wheel base | 3950 | ||
Drive type | 4*2 | ||
Number of axles | 2 | ||
Axle-load | Kg | 4450/9860 | |
Number of Spring leafs | 8/11+8 | ||
Tire specification | 9.00-20 | ||
Number of Tires | 6 | ||
Allowable passengers in cab | 6 | ||
Engine | Engine model | EQ6100-1 | |
Type of fuel | Diesel | ||
Displacement/power | ml/hp | 5420/135 | |
Max speed | Km/h | 90 | |
Emission standard(TAS) | EURO 3 | ||
Other Equipment | Tank | Total cubage: 2.88M³/2880L | |
Water tank cubage: 2M³/2000L | |||
Foam tank cubage: 0.88M³/880L | |||
Fire pump | Model: PS50 water monitor | ||
Flow: 50L/S | |||
Range: ≥60m/1.0MPa | |||
Fire monitor | Model: CB10/30 normal pressure pump(middle) | ||
Working pressure: 1.0 | |||
Flow: 40L/S | |||
Suction height: ≥7m | |||
Drawing water time: ≤35s | |||
Payment terms and delivery:
Delivery date: 7-10 days
Payment terms: 30% TT as deposit and 70% TT upon receipt of B/L copy
Packing: nude, covered with wax, small type can be put into 20'GP or 40'GP, big type can be carried by bulk carriers or ro-ro ship or according to your requirements
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
