Home > Transportation > Specialized Vehicle > Fire Truck > DongFeng 153 Water Fire Engine, Foam Fire Engine,fire Truck

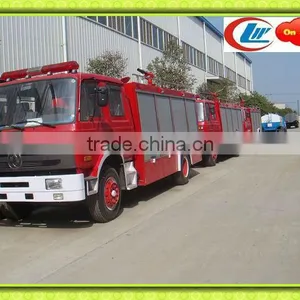

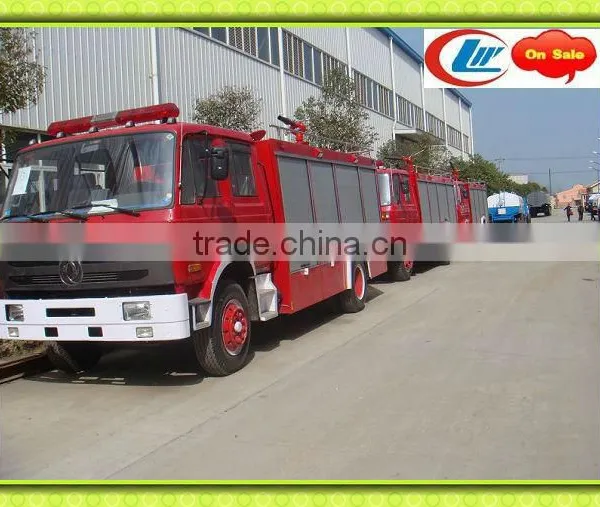

DongFeng 153 Water Fire Engine, Foam Fire Engine,fire Truck

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

4x2

Type:

Tanker

Transmission Type:

Manual

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 4x2

Type Tanker

Transmission Type Manual

Condition New

Horsepower 150 - 250hp

Tank Capacity 5001 - 7000L

Emission Standard Euro 2

Fuel Type Diesel

Max. Work Height 55M

Size 7885*2490*3400

Place of Origin Hubei, China

Brand Name CLW

Model Number WHG5141GXFSG50

Specifications

DongFeng 153 water fire engine, foam fire engine
1,Tank Capacity: 6-10 m3
2,Engine: Cummins 190hp
3,Fire artillery range>55M

DongFeng 153 water fire engine, foam fire engine

1,Tank Capacity: 6-10 m3
2,Engine: Cummins 190hp
3,Fire artillery range>55M

Item	unit	parameter
Vehicle model		WHG5141GXFSG50
Chassis model		EQ1141KJ
Overall dimensions	mm	788524903400
GVW	kg	13850
Rated loading capacity		5000
Mass in working order		8400
Wheel base	mm	4500
F/R track base		1940/1860
Approach/departure angle	°	25/14
Exhaust/hp	ml/kw	5900/140
Max speed	km/h	90
Tire specification	9.00-20	Engine type	B190 33
Traction system	4X2	transmission	6-speed with over drive
Number of axles	2	Electric system	24v
Operation control system	Electrically hydraulic control	Allowable passengers in cab	3
Equipment	Our plant the adoption of a comprehensive international ISO9001-2000 quality system certification, product certification 3C through a comprehensive, well-known domestic brands, trusted products in Hubei Province.
Engine	DongFeng Cummins engine
Production cycle	10-15days
Warranty	12 month,from the date of supply
Contact Name:
Company:	HuBei ChengLi Special Automobile Co.,Ltd
Country/Region:	China
Telephone:

NO.	Item name	parameters
1	Model type	HXF5140GXFSG55ZD
2	Shape size LWH(mm)	794025003150
3	Chassis	Dongfeng EQ1141G7DJ
4	Passengers	7
5	Wheel base	4500
6	Engine power	132kw
7	Max speed	≥90km/h
8	The total mass of full load	14000kg
9	The liquid volume of loading	5500kg
10	Water pump	CB20.10/20.40mid-low pressure pump,CB18/15 mid pressure pump
11	Fire artillery range	≥55m
