FAW Cheap Box Trucks,cargo Truck,cheap Diesel Cargo Truck

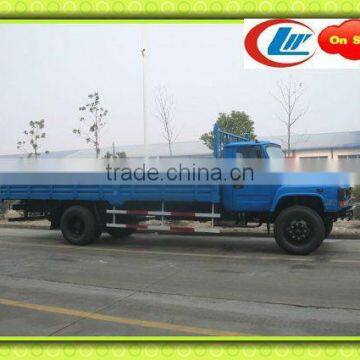

FAW Cheap Box Trucks,cargo Truck,cheap Diesel Cargo Truck thumbnail-1

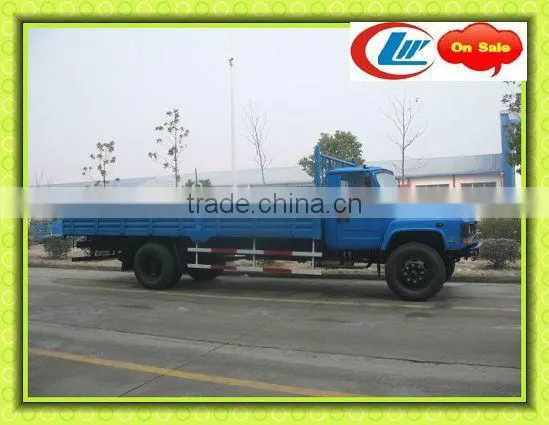

FAW Cheap Box Trucks,cargo Truck,cheap Diesel Cargo Truck photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity (Load):
1 - 10t
Drive Wheel:
4x2
Contact Supplier Request Quote Chat Now
Chengli Special Automobile Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Capacity (Load) 1 - 10t
Drive Wheel 4x2
Horsepower 150 - 250hp
Transmission Type Manual
Emission Standard Euro 2
Fuel Type Diesel
Engine Capacity 6 - 8L
Size 7240*2476*2535
Gross Vehicle Weight 9410
Place of Origin Hubei, China
Brand Name Jiefang
Model Number CA1097K2

Specifications

FAW cheap box trucks
1,Jiefang Chassis
2.Engine Power:Euro 2
3.Tank Volume:1-10T
4.Loading Capacity: 4805

FAW cheap box trucks

--Simple, easy to clean, and low maintenance

--High torque capacity, smooth engagement, and longer life

--Modularly designed soft-feel instrument panel, easily accessible switches and
   controls for improved driver comfort and fatigue

Engine

Model

CA6DE2-16

Type

6-cylinder in line, 4-stroke, water-cooled, direct injection, turbocharged, air-to-air intercooled

Rated Power

117kW (160hp) @ 2300rpm

Max. Torque

560N.m @ 1400rpm

Bore & Stroke

106×125mm

Displacement

6.618L

Compression Ratio

17.5

Specific Fuel Consumption

200g/(kW.h)

Air Compressor

235L/min @ 2300rpm

Lube Oil System

Full flow oil filter, centrifugal oil filter, turbocharger oil filter

Clutch
--Dry single 350mm plate
--Diaphragm spring
--Mechanical control
--Non-asbestos composite friction material
Transmission
--FAW CA6T123 mechanical transmission, 6 forward speeds and 1 reverse
--Ratios: 1st 6.515, 2nd 3.916, 3rd 2.345, 4th 1.428, 5th 1.000, 6th 0.813, Rev. 6.060 Front axle
--Drop forged "I" beam, rear mounted tie rod
--Rated axle capacity: 3500 kg
--Integral power steering
--Suspension: semi-elliptic multi-leaf springs with Φ50mm telescopic double
   acting shock absorbers
--7.00T-20 steel disc wheels and 9.00-20-14PR tires (Single, tube bias)
Rear axle
--225 cast axle, 6.25 ratio, full-floating
--Rated axle capacity: 8000 kg
--Suspension: Semi-elliptic multi-leaf springs with auxiliary springs
--7.00T-20 steel disc wheels and 9.00-20-14PR tires (Dual, tube bias)
Brake
--Front and rear dual-circuit independent air brake system
--Reservoirs: one 40L steel reservoirs and one 20L steel reservoir
--Service brakes: air actuated, drum type, brake drum inner diameter: 400mm
--brake shoe width: front 85mm, rear 120mm
--Parking brake: central drum braking, mechanical control
--Exhaust brake: electrically controlled, pneumatically activated butterfly valve in exhaust pipe
Frame
--Ladder type, channel section side rails
--Cross section dimensions: 239×75×8mm
--Assembled width: 865mm in the front and rear
Cab
--All steel welded conventional design, insulated mounting, 50 degree tilt hood with torsion
    bar assistance and safety hook
--Cab glass: laminated windshield and tempered side & rear windows
--Windshield wipers: 2-blade, electric-driven, 2 speed & intermittent
--AM/FM stereo radio with cassette
--Meters & Gauges: Speedometer, coolant temperature gauge, air pressure gauge, engine oil
   pressure gauge
--Warning Lights & Buzzers: Low coolant level warning light & buzzer Low oil pressure warning
   light & buzzer; Low air pressure warning light & buzzer Parking brake indicator light
Electrical system
--24 Volt, negative ground system
--Battery: 6-QA-120D, capacity: 2×120A.h
--Combination halogen headlamps/marker lamps
--Combination stop, tail and back-up lamps with reflector
Weights (kg)
--Curb weight: 4410
--Front axle curb weight: 2180
--Rear axle curb weight: 2230
--Load capacity: 6000
imensions (mm)
--Overall dimensions (length × width × height): 7240×2476×2535
--Body dimensions (length × width × height): 4200×2300×550
--Track (front/rear): 1800/1800
--Wheelbase: 4050
--Front overhang: 1190
--Back of cab to rear axle center: 2410
--End of frame to rear axle center: 1575
Performance
--Top speed: 84km/h
--Fuel consumption at 70km/h with full load: 17L/100km
--Min. turning radius: 8.2m
--Max. outside noise level under acceleration: 84dB(A)
--Min. ground clearance: 250mm
