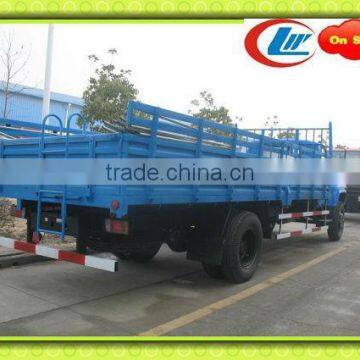

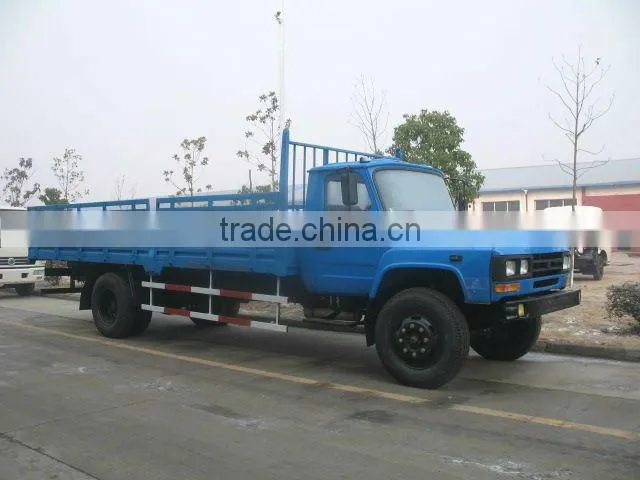

FAW 8T Flat Cargo Truck,freight Wagon,cargo Truck

Engine

Clutch
--Dry single 350mm plate
--Diaphragm spring
--Mechanical control
--Non-asbestos composite friction material
Transmission
--FAW CA6T123 mechanical transmission, 6 forward speeds and 1 reverse
--Ratios: 1st 6.515, 2nd 3.916, 3rd 2.345, 4th 1.428, 5th 1.000, 6th 0.813, Rev. 6.060 Front axle
--Drop forged "I" beam, rear mounted tie rod
--Rated axle capacity: 3500 kg
--Integral power steering
--Suspension: semi-elliptic multi-leaf springs with Φ50mm telescopic double
   acting shock absorbers
--7.00T-20 steel disc wheels and 9.00-20-14PR tires (Single, tube bias)
Rear axle
--225 cast axle, 6.25 ratio, full-floating
--Rated axle capacity: 8000 kg
--Suspension: Semi-elliptic multi-leaf springs with auxiliary springs
--7.00T-20 steel disc wheels and 9.00-20-14PR tires (Dual, tube bias)
Brake
--Front and rear dual-circuit independent air brake system
--Reservoirs: one 40L steel reservoirs and one 20L steel reservoir
--Service brakes: air actuated, drum type, brake drum inner diameter: 400mm
--brake shoe width: front 85mm, rear 120mm
--Parking brake: central drum braking, mechanical control
--Exhaust brake: electrically controlled, pneumatically activated butterfly valve in exhaust pipe
Frame
--Ladder type, channel section side rails
--Cross section dimensions: 239×75×8mm
--Assembled width: 865mm in the front and rear
Cab
--All steel welded conventional design, insulated mounting, 50 degree tilt hood with torsion
    bar assistance and safety hook
--Cab glass: laminated windshield and tempered side & rear windows
--Windshield wipers: 2-blade, electric-driven, 2 speed & intermittent
--AM/FM stereo radio with cassette
--Meters & Gauges: Speedometer, coolant temperature gauge, air pressure gauge, engine oil
   pressure gauge
--Warning Lights & Buzzers: Low coolant level warning light & buzzer Low oil pressure warning
   light & buzzer; Low air pressure warning light & buzzer Parking brake indicator light
Electrical system
--24 Volt, negative ground system
--Battery: 6-QA-120D, capacity: 2×120A.h
--Combination halogen headlamps/marker lamps
--Combination stop, tail and back-up lamps with reflector
Weights (kg)
--Curb weight: 4410
--Front axle curb weight: 2180
--Rear axle curb weight: 2230
--Load capacity: 6000
imensions (mm)
--Overall dimensions (length × width × height): 7240×2476×2535
--Body dimensions (length × width × height): 4200×2300×550
--Track (front/rear): 1800/1800
--Wheelbase: 4050
--Front overhang: 1190
--Back of cab to rear axle center: 2410
--End of frame to rear axle center: 1575
Performance
--Top speed: 84km/h
--Fuel consumption at 70km/h with full load: 17L/100km
--Min. turning radius: 8.2m
--Max. outside noise level under acceleration: 84dB(A)
--Min. ground clearance: 250mm
