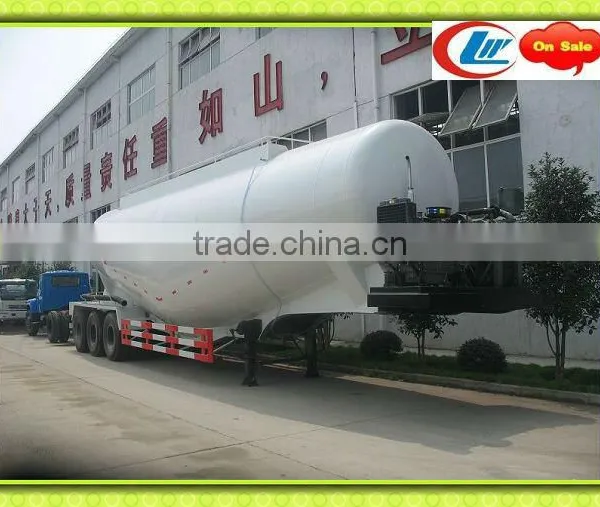

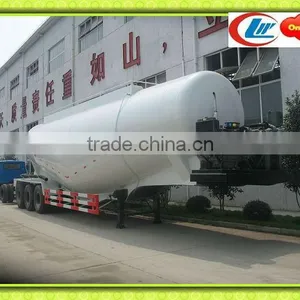

Cement Tank Trailer Used in Bulk Cement Transportation

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Transmission Type:

Manual

Emission Standard:

Euro 2

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Dimensions (L x W x H) (mm) 11000*2150*1900

Gross Vehicle Weight 34980

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW

Specifications

Cement Tank Trailer used in bulk cement transportation
1.13t Fuwa axles;
2.pin: 90mm
3.low residual rate
4. pass 3C

Cement Tank Trailer used in bulk cement transportation

Item	unit	parameter
Vehicle model		Air Discharge Tanker For Carrying Cement CLW9350GFL
Tank Volume	T/ M³	35T / 30M³
Body internal dimensions	mm	Approx 11000×2150×1900 (L×Max diameter×Min diameter)
Overall dimensions		Approx 11200×2500×3750
G.V.W	kg	34980
Vehicle Weight		10480
Loading Capacity		35000
wheel base	mm	6450+1250
F/R track base		-/1820
Tire specification	11.00R20		Number of axles	2
Number of tire	8		Front/Rear axle	-/13T FUHUA
Equipment	Meterial:6mm carbon steel. Discharging Hose, 4 inch Discharging Hose Length ,6,000 mm Discharging capacity≥1,200 Kg/min Working pressure,0.2 Mpa. MAX Horizontal Discharging Distance, 5,000 mm MAX. Vertical Discharging Distance,25,000 mm. 1m³=1.2T~1.3T cement Diesel Engine , 4100AG Made in China. Air Compressor , WB-10/2, Made in China,8M³
PAINTING	Tank with white background and blue pattern and blue typeface of ‘CLW’, The side guard is blue and white.
Production cycle	Approx 30 days
