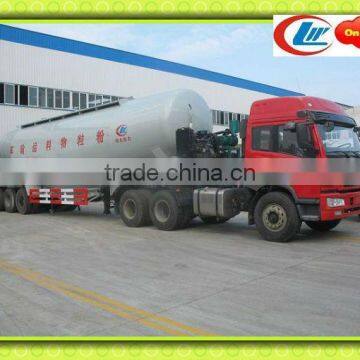

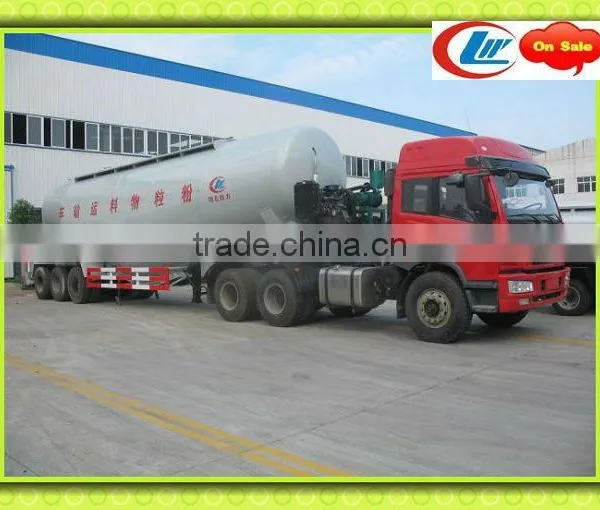

Tri-axle 500000liters bulk cement silo trailers,cement tanker trailer

Item

unit

parameter

Vehicle model

Air Discharge Tanker For Carrying Cement CLW9350GFL

Tank Volume

T/ M³

35T / 30M³

Body internal dimensions

mm

Approx 11000×2150×1900

(L×Max diameter×Min diameter)

Overall dimensions

Approx 11200×2500×3750

G.V.W

kg

34980

Vehicle Weight

10480

Loading Capacity

35000

wheel base

mm

6450+1250

F/R track base

-/1820

Tire specification

11.00R20

Number of axles

2

Number of tire

8

Front/Rear axle

-/13T FUHUA

Equipment

Meterial:6mm carbon steel.
Discharging Hose, 4 inch
Discharging Hose Length ,6,000 mm
Discharging capacity≥1,200 Kg/min
Working pressure,0.2 Mpa.
MAX Horizontal Discharging Distance, 5,000 mm
MAX. Vertical Discharging Distance,25,000 mm.
1m³=1.2T~1.3T cement
Diesel Engine , 4100AG Made in China.
Air Compressor , WB-10/2, Made in China,8M³

PAINTING

Tank with white background and blue pattern and blue typeface of ‘CLW’, The side guard is blue and white.

Production cycle

Approx 30 days
