SUNTECHST-LIM-01 Textile Winder Machine attached on
Looms in Good Quality
ST-LTM-01 Textile Winder Machine attached on Looms in Good Quality is designed to attach
all types of weaving machines to take up any type of woven,no-woven or knitted fabrics on
the machine.
It is also designed to give tight and compact rolls in the most elastic to heaviest fabrics such as
industrial textiles.
* Ergonomically designed
* Fast and easily handled, requiring for one operator only
* Less fabric waste and increase efficiency
* Synchronize production process
* Reduce administration

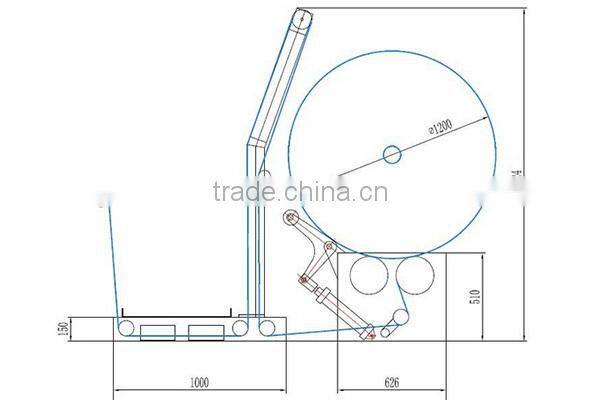

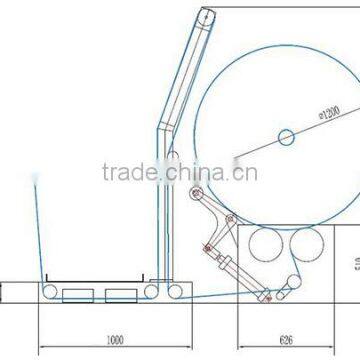

Technical Specs. of Textile Winder Machine attached on Looms in Good Quality
| Speed: | Synchronized with Weaving Machines-Standard 0-10m/min |
| Fabric Width: | 1.8-4.0m |
| Batching Diameter Max.: | 1000mm(Standard:880mm) |
| Edge-alignment Error: | ≤5mm |
| Electric Specs: | 3 phase-380V;50HZ(can be adjusted to suit for different countries) |
| Remark: | Variable working width is possibleand can be tailor made to your requirements of processing |
Excellent Features of Textile Winder Machine attached on Looms in Good Quality
1)Various models avaliable allow 100% On-loom Inspection.
2)Automatic synchronization with the weaving machine.
3)Positive tension adjustment allows precise selection for any fabric on any loom.
4)Forward & Reverse(not full) movement of fabric.
5)Operator's platform with anti-fatigue material and toe-guards.
6)Crease free winding of fabric.
7)Compact rolls due to differential ratio of the batcher rolls.
8)Option-Accurate Length Measuring Giving Accuracy of ± 0.01%.
9)Option-Semi-automatic doffing device( Pneumatic Roll Ejection Device).
10)Option-Automatic Fabric & Selvedge Shifter for Thick Selvedges.
Packing Details:Steel Pallet or Wooden Box Packing
Delivery Details: 15-20 days delivery
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing
Units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in
Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its
Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia,
Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria,
Mauritius, etc.
Q1:Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in
HK and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd). Your order will be
controlled from very beginning to the last.
Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.
Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering
For LCL, steel frame + wooden box packing
Q4: How about your service?
A5:Round the clock customer service center- 24 hours hot line--13706812486.
Also, engineers available to service machinery overseas
Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality
products. Our products get ISO9001:2008, Euro CE.
1.Round the Clock Customer Service Centers
2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas.
3.Expert Team, Technical Support
4.Abundant Spare Parts, Swift Storage Center
If you have any other questions,please contact us !
