CE Approved,china,fun,outdoor Open Wagon Park City Tourist, Mini,trackless,fun Rtain

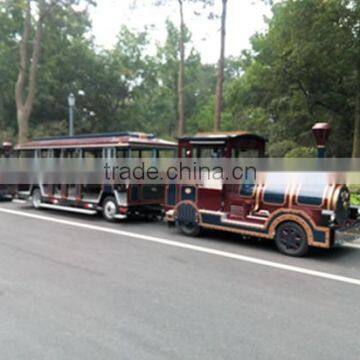

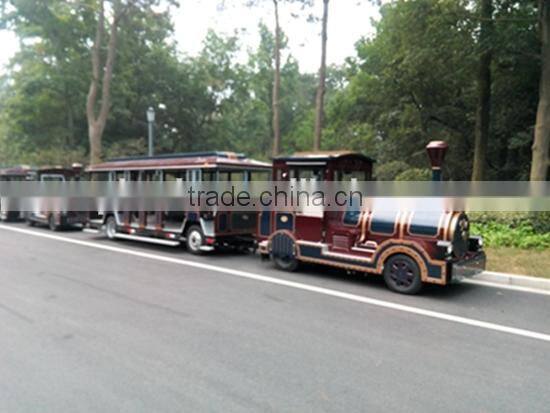

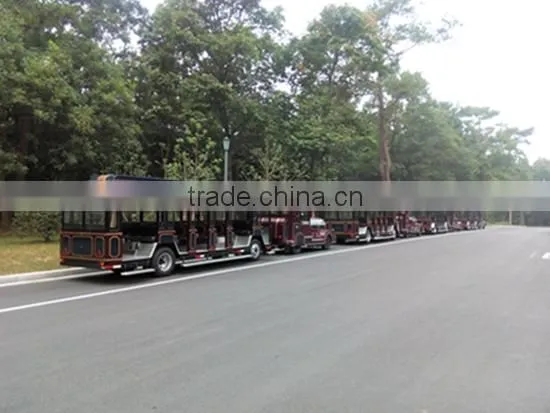

This Park Train with Open Wagon is running by diesel engine. It is very maneuverable, environmentally friendly and powered by a silent 92KW diesel engine with TUV approval. It is designed for intensive use and ideal for city tour, parks, zoos, amusement parks, and special events. The train is comprised of a locomotive and 2 passenger wagons and will carry 42passengers.

1. Specification as follows:

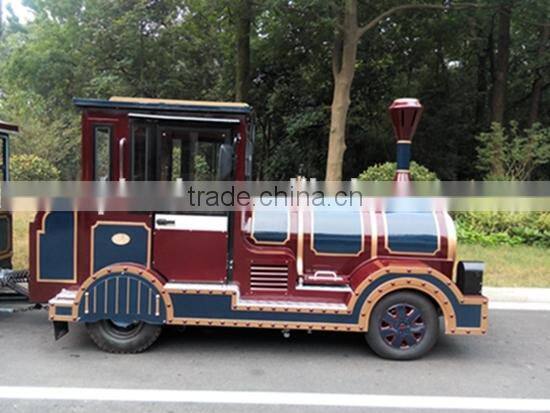

LOCOMOTIVE SPECIFICATION

DIMESION

Length: 3965mm

Width: 1620mm

Height: 2210mm

MOTOR

IVECO Sofim 8140.43S diesel engine, common rail, 4 cylinders, Turbo-charged, intercooler, direct injection, Displacement of 2798cc, Rated power of 92/3600 KW/(r/min), EURO 3, TUV approval

CHASSIS

Supporting structure in steel section with parabolic suspension. Steering wheel provided with hydraulic power.

STEERING

Professional steering column assembly, 4-direction adjustable (forward-backward, up-down).

BRAKES

Hydraulic drum brakes on wheels; parking brake. Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic circuit for coach braking.

TRANSMISSION

Original IVECO transmission, 3 forward gears with reverse, speed is reduced by using helical gears.

BODY

Made of reinforced fiberglass, with ROSH approval.

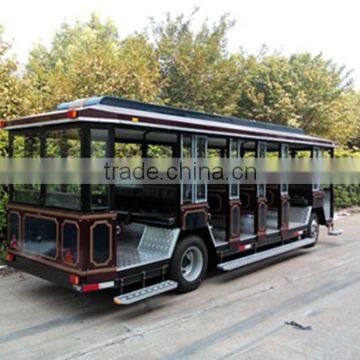

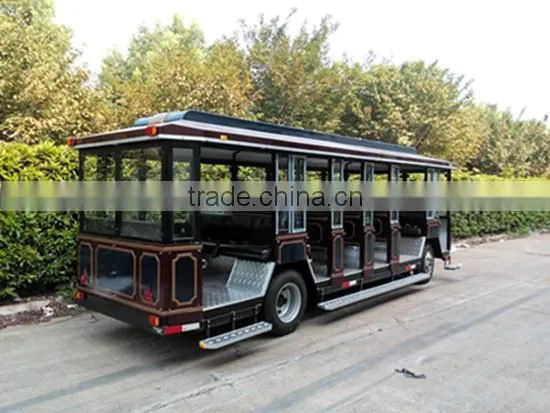

WAGON SPECIFICATION

DIMESION

Length: 3940mm

Width: 1810mm

Height: 2410mm

CHASSIS

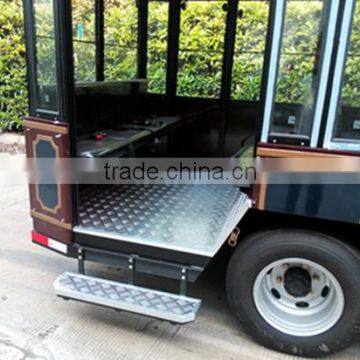

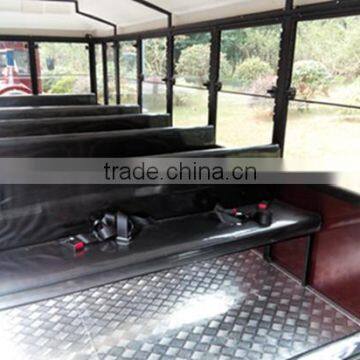

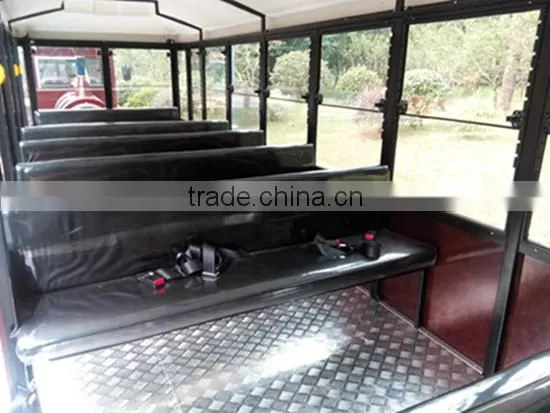

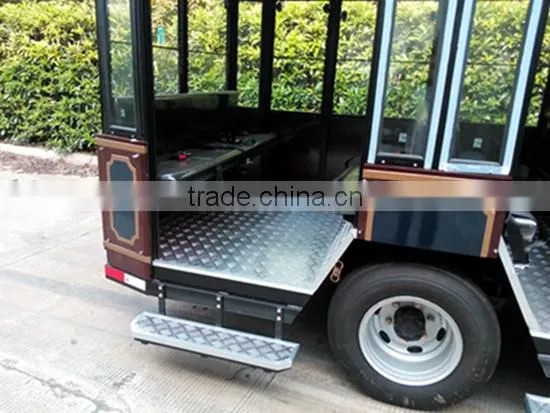

In reinforced powder-coated steel, parabolic suspension, 4-wheel steering system, which ensures all the coaches follow the exact path taken by the Locomotive. Floor in aluminum tread plate; Leather seats and backrests padded with sponge.

BRAKES

Hydraulic drum brakes on 4 wheels; Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic circuit for coach braking. If not connected with Locomotive, the wagon will brake itself.

BODY

Made of reinforced fiberglass with ROSH approval.

CAPACITY

20 adults or 25children

2. Advantages

1) Product made by the joint venture by China and Austria

2) Product has passed latest CE approval according to European regulation

3) The company got ISO approval from TUV Germany with scope of Dsign and Manufacturing of Sightseeing and Tourist vehicles

4) The train body is using environmental FRP materail with European ROHS testing approval

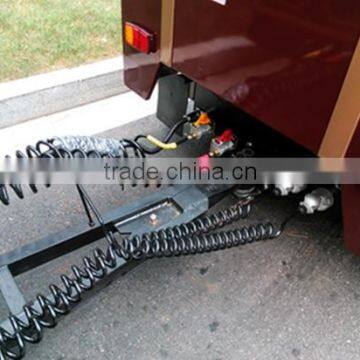

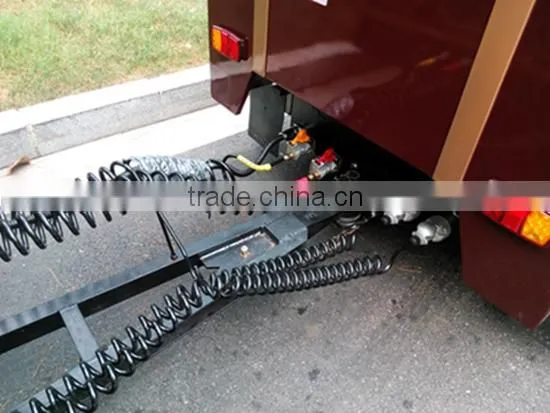

5) The couplings used are from original Germany ROCKINGER
