This open coach with protection doors is specially designed for city tour and sightseeing purpose. They are widely used in cities, towns, or amusement parks, resorts, and so on. It is with high climbing capacity, and could widely used in some hilly or mountain area for tourists transportation.  We are a professional manufacturer.

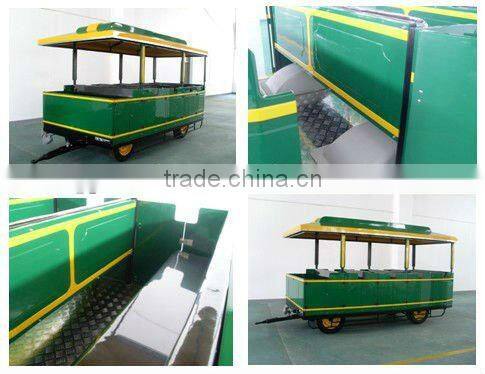

Product picture:







Specification:



SIZE	PQC92:3965*1620*2210mm                                        PTC20: 4987x1810x2410mm
WEIGHT	PQC92: 2500kg;   PTC20:   1250kg
ENGINE	IVECO   Sofim 8140.43S3 Diesel Engine, 92kw, 2.8L
EMISSION	EURO 3
TRANSMISSION	IVECO   original manual gearbox, 3F+1R
MAX   SPEED	25km/h
CLIMBING   CAPACITY	15%
MIN   TURNING RADIUS	6.5m
PASSENGERS	20seats   per wagon, 42seats per train



Advantages



1) Product made by the joint venture by China and Austria

2) CE approval according to European regulation

3) ISO approval from TUV Germany

4) The train body is using environmental FRP material with European ROHS testing



MOTOR

IVECO Sofim 8140.43S diesel engine, common rail, 4 cylinders, Turbo-charged, intercooler, direct injection, Displacement

of 2798cc, Rated power of 92/3600 KW/(r/min), EURO 3, TUV approval





CHASSIS

Supporting structure in steel section with parabolic suspension. Steering wheel provided with hydraulic power.



BRAKES

Hydraulic drum brakes on wheels; parking brake. Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic

circuit for coach braking.





TRANSMISSION

Original IVECO transmission, 3 forward gears with reverse, speed is reduced by using helical gears.



BODY

Made of reinforced fiberglass, with ROSH approval.



Standard Equipments of Locomotive:

• Locomotive Doors
• Bell
• Rotary light for locomotive
• Battery
• MP3 player system
• Leather Seat with E-mark approval Safety Belts
• Adjustable Steering system
• Bus Combination Electric system including dashboard
• Storage Box
• Front windscreen wiper and water spray system
• Inner reading light
• Side mirrors and inner mirror

Standard Equipments of Coach:

          Emergency Alarm button for coach

• Inner lights for coach
• Sound system for coach
• Leather seats
• Foot board for coach
• Rotary light for last wagon
• Open coach without doors would be with chain as standard protection equipment
• Closed coach with door-ajar  indicators

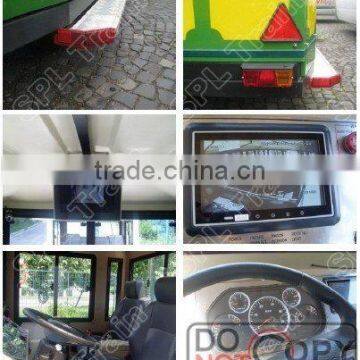

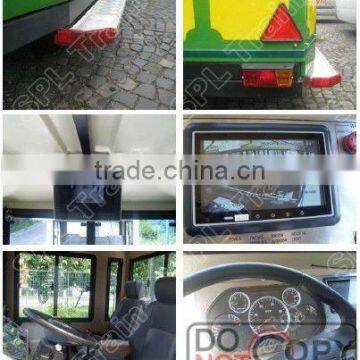

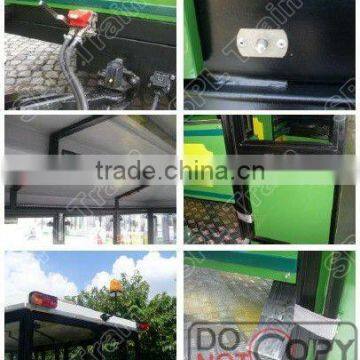

Detailed pictures



Air & Hydraulic double braking system. The Locomotive and wagons brake at the same time. The wagons will brake itself when not connected with Locomotive.



Equipped with Video playing system, including MP5 player and 17-19 inch LCD Video screen
