20 Seats Passenger Trailer,half-closed Wagon

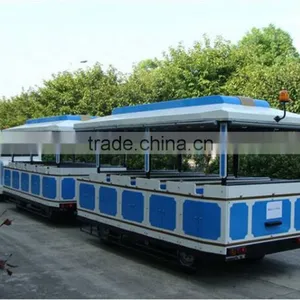

20 Seats Passenger Trailer,half-closed Wagon thumbnail-1
20 Seats Passenger Trailer,half-closed Wagon thumbnail-2

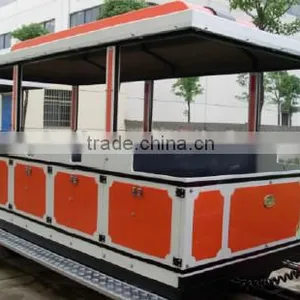

20 Seats Passenger Trailer,half-closed Wagon thumbnail-3

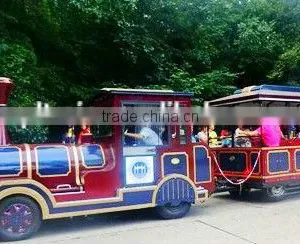

20 Seats Passenger Trailer,half-closed Wagon thumbnail-4

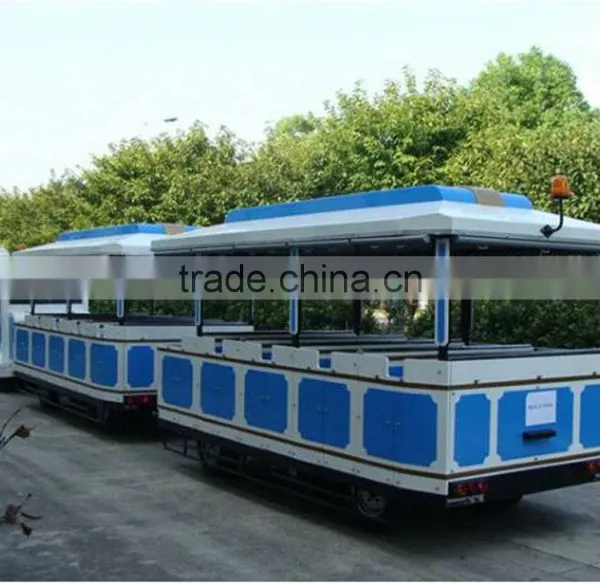

20 Seats Passenger Trailer,half-closed Wagon photo-1
20 Seats Passenger Trailer,half-closed Wagon photo-2

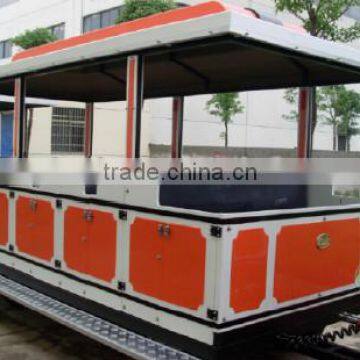

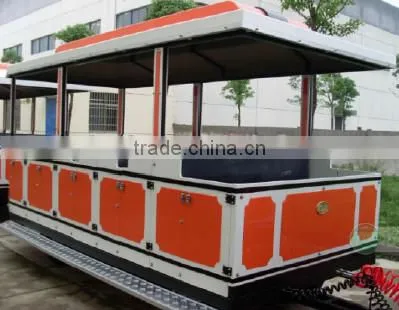

20 Seats Passenger Trailer,half-closed Wagon photo-3

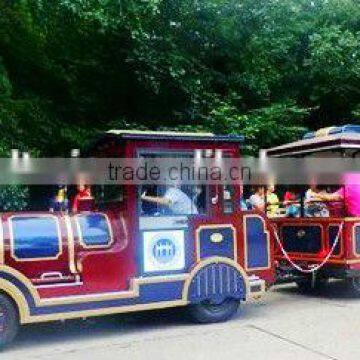

20 Seats Passenger Trailer,half-closed Wagon photo-4
US$ 15,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Parts:
Trailer Plugs
OEM No.:
OEM Service Provided
Max Payload:
1600kg
Contact Supplier Request Quote Chat Now
Suzhou Player Machinery & Equipment Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Parts Trailer Plugs
OEM No. OEM Service Provided
Max Payload 1600kg
Size 3940*1810*2410mm
Place of Origin Jiangsu, China
Brand Name SPL
Model Number PTC20M
Product Description



Specification

L*W*H

3940*1810*2410mm

Weight

1250kg

Loading capacity

1600kg

Tread(front/rear)

1160 /1160mm

wheelbase

2280mm

Brake distance

≤4m

Passengers

20

Max. speed

25km/h

Max. climbing

20%

Min. ground clearance

180mm

Min. Turning Radius

6.5m

Car Body System

Seat

Artificial leather material +resilient PU;

Black, Gray, Cream-colored available

Chassis

Steel chassis,Power coating treatment

Body

FRP plastic

Dashboard

no

Rear view mirror

no

Lightning

E-mark approved Rear LED combination lights, inner LED light

Sound system

Japanese Pioneer Loudspeaker

Towing part

German Rockinger coupling

Floor

Bamboo + Aluminum plate

Chassis System

Steering system

all wheel steering system

Axle

Professional automobile axle

Suspension

Plate spring + cylinder hydraulic shock absorber

Brake

Pneumatic hydraulic converter for controlling wagon brakes. Pneumatic circuit for wagon braking.

Self-braking system

Wheel

14x5 1/2J steel wheel

Tire

185R14C 8PR

Painting

Professional automobile painting



Product pictures

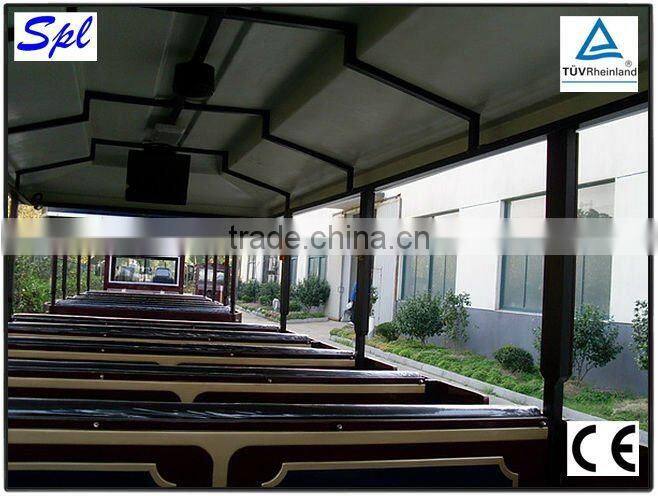

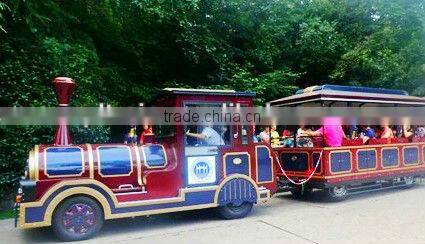

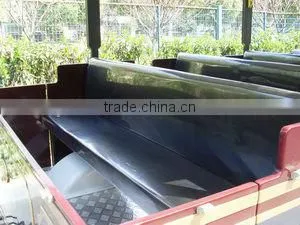

 20 seats passenger trailer,half-closed wagon20 seats passenger trailer,half-closed wagon20 seats passenger trailer,half-closed wagon

20 seats passenger trailer,half-closed wagon
