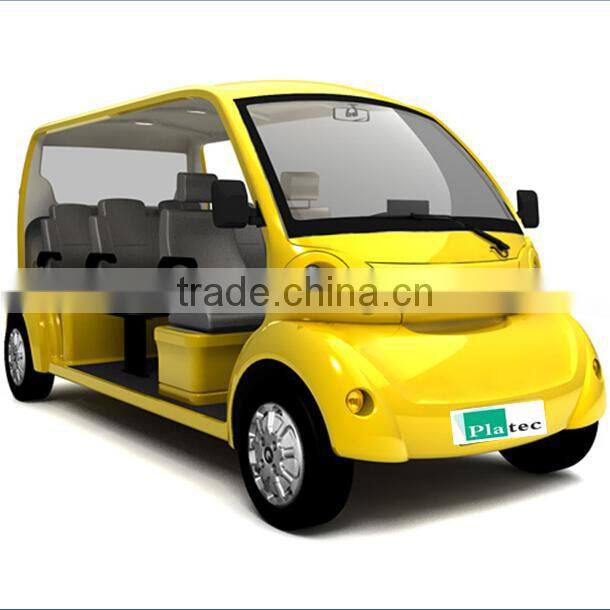

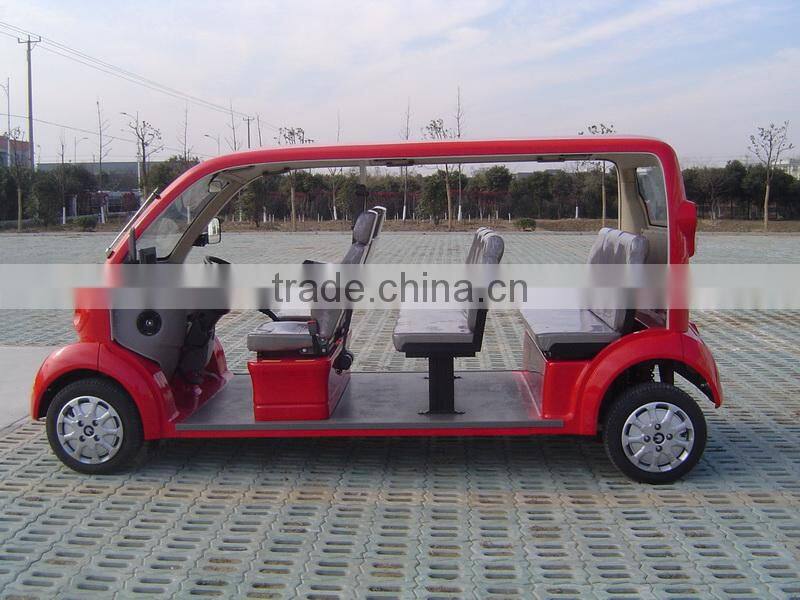

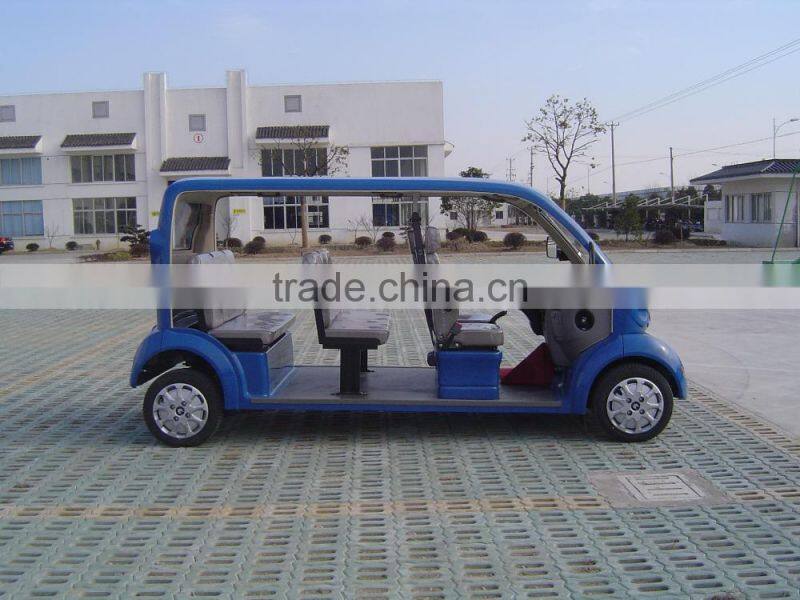

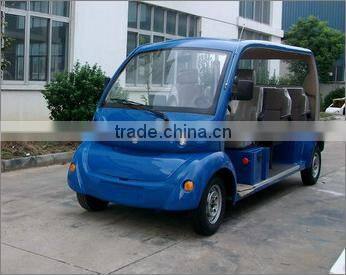

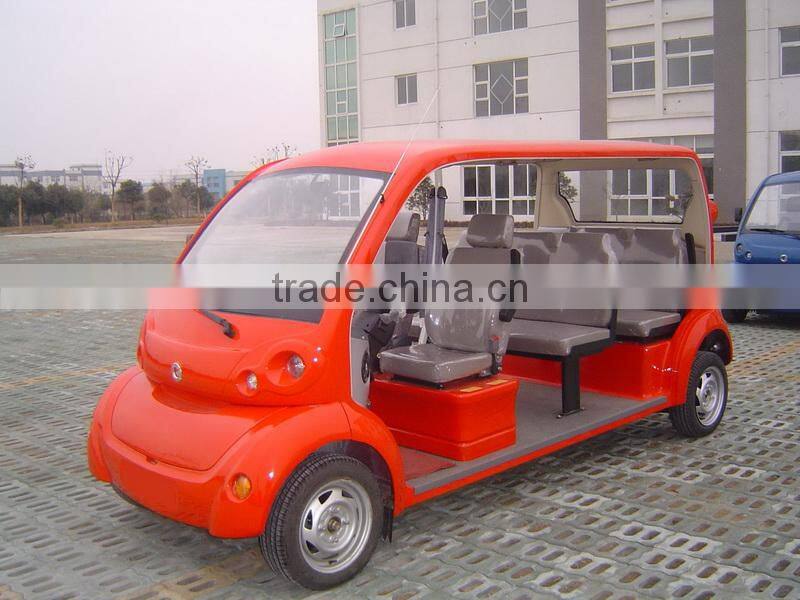

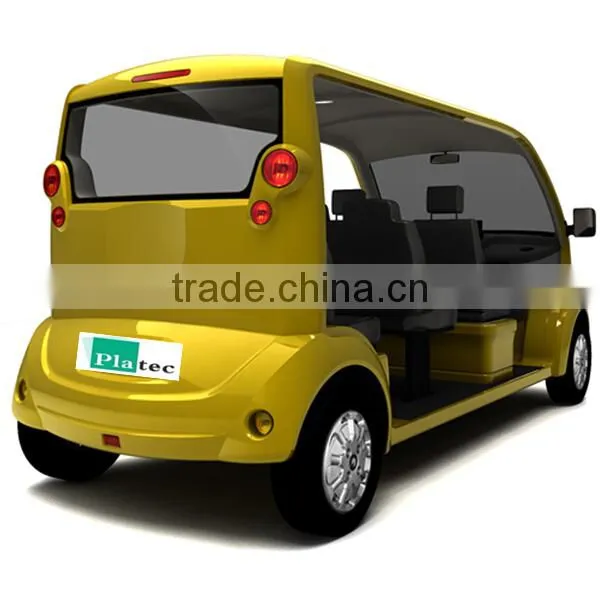

48V4.2KW 6-8 Seats Electric Golf Cart Tourist Car Passenger Mini Car

Electrical system

Electric control

Curtis lundgren brand electric control

The battery

6 v180ah,  48 v / 8

The motor

4.2 KW series motor

charger

A portable intelligent charger

Charging time

8 to 10 hours (discharge at a rate of 80%)

Technical parameters

Charging the input voltage

220V

Length * width * height

3790×1490×1750mm

Braking distance

≤5m

Vehicle equipment quality

960kg

Rated crew

6-8

The vehicle load

600kg

Maximum speed

25km/h

Before and after the wheel track

1220/1260mm

Maximum gradability

20%

The wheelbase

2950mm

The minimum bending radius

6.5m

The minimum clearance from the ground

180mm

Body system

The seat

The first row of seats (1 + 1 + high resilience PU, leather fabric, Angle adjustment device, with armrest, three-point seatbelt)
The second row of seats (three chairs, leather fabric + high resilience PU, armrest, with chair foot)
The third row of seats (three people + high resilience PU upholstered seats, leather fabric, with handrails)

Car body

Steel frame + glass fiber reinforced plastic shell/ABS engineering plastics von berg systeme

instrument

Liquid crystal instrument display (including voltage, speed, distance, lighting, commutation signals) before and after

Rear view mirror

Manual type outside rearview mirror

Lighting and signal

Combination headlights, turn light and combination HouWeiDeng, brake lights, electric horn and reversing buzzer

The stereo

Car MP3 players, professional speakers

switch

Start switch, lighting and wiper switch, in a gear and reversing switch, warning light buzzer become warped plate switch

Top handle

The springback type shake handshandle

The frame

Steel frame structure

The steering wheel

Polyurethane foam steering wheel

The chassis system

Power transmission system

The CVT system

Steering system

The direction of the gear rack type machine

The front axle and suspension

McPherson independent suspension + spiral spring, hydraulic damping cylinder

The rear axle and suspension

One-piece rear axle, the spiral spring independent suspension, hydraulic damping cylinder (12.49)

The braking system

Front disc, rear drum type hydraulic brake, double hydraulic brake and parking brake

tire

12 x 4.5 aluminum alloy wheel hub, giti vacuum meridian tire 145 r12c

Oil paint

Auto level ordinary paint, computer tune paint, professional spraying equipment
