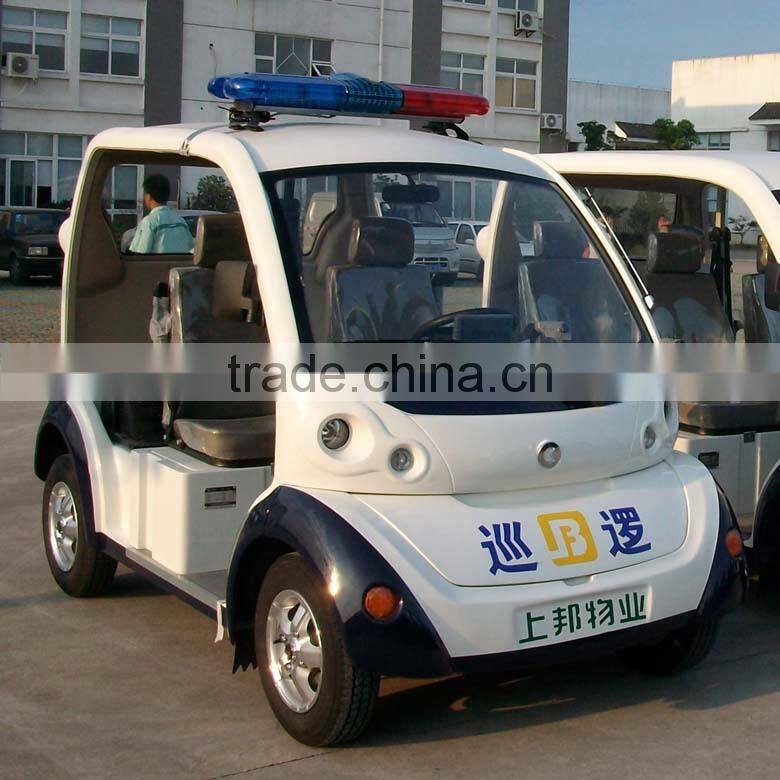

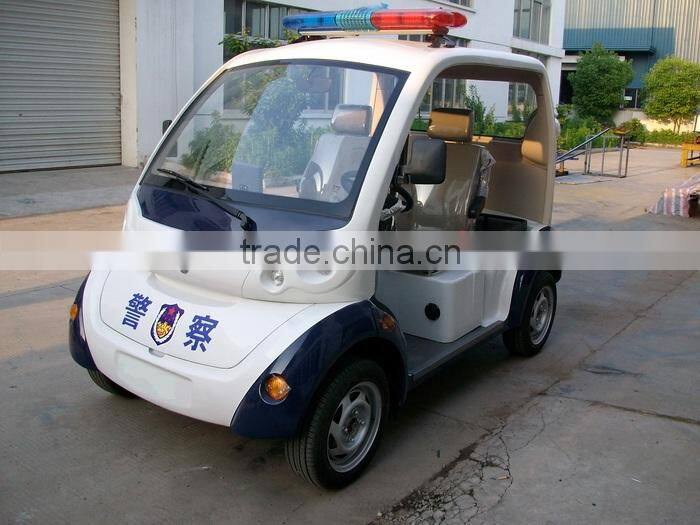

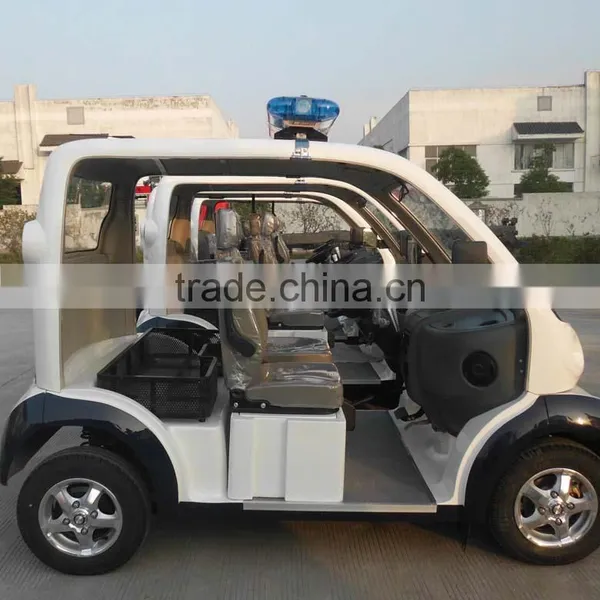

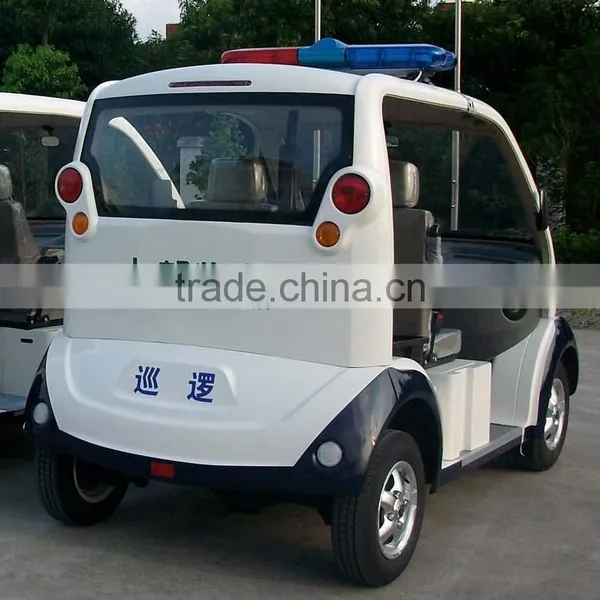

Help Center48V Two Seats Electric Golf Cart Tourist Car Passenger Mini Car PM02J
Related Products
-
48V Two Seats Electric Golf Cart Tourist Car Passenger Mini Car With Doors M02MUS$ 6,909 - 6,909MOQ: 1 Set -
48V Two Seats Electric Golf Cart Tourist Car Passenger Mini CarUS$ 5,999 - 5,999MOQ: 1 Set
-
20 Seats Mini Electric School Bus ,electric Sightseeing Bus , Electric Tourist VehicleNegotiableMOQ: 1 Unit
-
48v 2 Seater Rear Cargo Box Electric Pickup, Electric Cargo Truck, Electric Pallet PickupNegotiableMOQ: 1 Unit
-
48v 4 Seater Rear Cargo Box Electric Pickup, Electric Pallet, Cargo Box Electric TruckNegotiableMOQ: 1 Unit
Electrical system |
Electric control |
Curtis lundgren brand electric control |
|
|
The battery |
6 v180ah/only, only 48 v / 8 |
|||
The motor |
3 kw series motor |
|||
charger |
A portable intelligent charger |
|||
Charging time |
8 to 10 hours (discharge at a rate of 80%) |
|||
Technical parameters |
Charging the input voltage |
220V |
||
Length * width * height |
2640×1490×1950mm |
Braking distance |
≤4m |
|
Vehicle equipment quality |
650kg |
Rated crew |
2 people |
|
The vehicle load |
180kg |
Maximum speed |
25km/h |
|
Before and after the wheel track |
1220/1260mm |
Maximum gradability |
15% |
|
The wheelbase |
1800mm |
The minimum bending radius |
4m |
|
The minimum clearance from the ground |
180mm |
|
|
|
Body system |
The seat |
The first row of seats (1 + 1 + high resilience PU, leather fabric, Angle adjustment device, with handrails, two point seat belt, light grey) |
||
Car body |
Steel frame + glass fiber reinforced plastic shell/ABS engineering plastics von berg systeme |
|||
instrument |
Liquid crystal instrument display (including voltage, current, speed, distance, lighting, commutation signals) before and after |
|||
Rear view mirror |
Manual type outside rearview mirror |
|||
Lighting and signal |
Combination headlights, turn light and combination HouWeiDeng, brake lights, electric horn and reversing buzzer |
|||
The stereo |
Car MP3 players, professional speakers |
|||
switch |
Start switch, lighting and wiper switch, in a gear and reversing switch, warning light buzzer become warped plate switch |
|||
Top handle |
The springback type shake handshandle |
|||
The frame |
Steel frame structure |
|||
The steering wheel |
Polyurethane foam steering wheel |
|||
The chassis system |
Power transmission system |
The CVT system |
||
Steering system |
The direction of the gear rack type machine |
|||
The front axle and suspension |
McPherson independent suspension + spiral spring, hydraulic damping cylinder |
|||
The rear axle and suspension |
One-piece rear axle, the spiral spring independent suspension, hydraulic damping cylinder (12.49) |
|||
The braking system |
Front disc, rear drum type hydraulic brake, double hydraulic brake and parking brake |
|||
tire |
12 x 4.5 aluminum alloy wheel hub, giti vacuum meridian tire 145 r12c |
|||
Oil paint |
Auto level ordinary paint, computer tune paint, professional spraying equipment |
|||
|
Suzhou Player Machinery & Equipment Manufacturing Co., Ltd. Suzhou Platec Import & Export Co., Ltd.
Contact: Jack Zhang (Mr.) Mob: +86-13625277456 Tel: +86-512-66033952 Skype: PLATEC Jack Zhang Fax: +86-512-66033957 Add: 16 Nan Guan Du Road, Wuzhong District, Suzhou, China Website:
|
