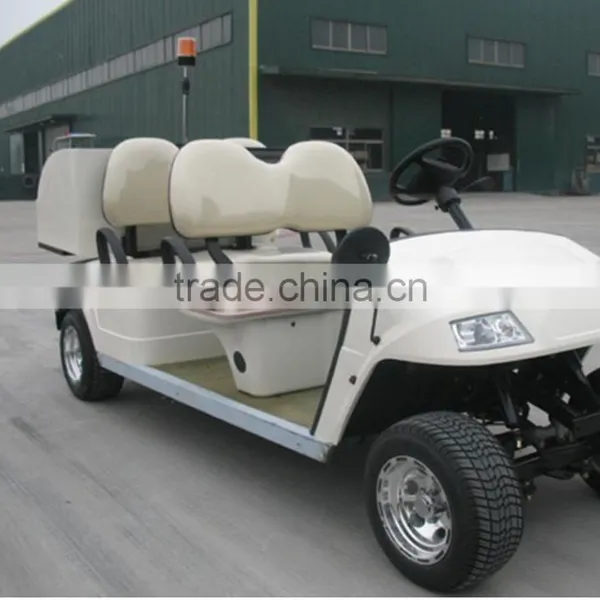

Help Center4 Seat Electric Golf Car With Customized Design
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Truck, Electric, 800kgs Loading Weight, EG6021HNegotiableMOQ: 1 Unit -
Electric Fourteen Shuttle Bus, CE Approved,cheap and FashionNegotiableMOQ: 1 Unit
-
Electric Eight Seats Shuttle Bus , CE Approved,USA LSVNegotiableMOQ: 1 Unit
-
Electric Hunting Buggy With Cargo Box, Electric Hunting Vehicle With Cargo Box, Two SeatsNegotiableMOQ: 1 Unit
-
Electric Hunting Buggy, Electric Lifted Golf Cart, Two SeatsNegotiableMOQ: 1 Unit
Seats
1 - 2
Fuel Type
Electric
Battery Voltage
48V
Certification
CE
4 seat electric golf car with customized design :
Max. speed is 32km/h upon the 12.76:1 gear ratio, Max. speed is 40km/h upon the 10.26:1 gear ratio.
Max. climbing ability (loaded) is 20% upon the 10.26:1 gear ratio
Product Description
| Model | EG2048K | EG2048K01 | EG2048K02 | EG2048K03 | EG2048K05 | EG2048K07 | EG2048K08 | EG2048K09 |
| System | 48V/3KW Sepex | 48V/4KW Sepex | 48V/4KW Sepex | 36V/3KW Sepex | 48V/5.3KW Sepex | 48V/3KW AC System | 48V/5KW AC System | 48V/5KW Sepex |
| Key Components | ||||||||
| Battery | 6PCSxT875(145Ah@5hr rate) | 6PCSxT875(145Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | 6PCSxT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3KW ADC motor | 3.8KW Chinese motor | 3.8KW Chinese motor | 3KW ADC motor | 5.3KW Chinese Motor | 3KW German Motor | 5KW Chinese Motor | 5KW ADC DV9 Motor |
| Controller | Curtis 1266 (275A@2minutes | Curtis 1268 (400A@2minutes) | Curtis 1268 (400A@2minutes) | Curtis 1243 (300A@2minutes) | Curtis 1268 (400A@2minutes | Zapi ACE0(280A@2minutes) | Zapi ACE2(400A@2minutes) | Curtis 1268 (400A@2minutes |
| Performance | ||||||||
| Passenger capacity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >55 | >55 | >80 | >50 | >80 | >100 | >100 | >80 |
| Max. speed @12.76:1 gear ratio | 25 | 32 | 32 | 21 | 32 | 32 | 32 | 32 |
| Max. speed @10.26:1 gear ratio | 32 | 40 | 40 | -- | -- | -- | -- | -- |
| Minimum turning radius (m) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Max. climbing ability (loaded) @ 12.76:1 gear ratio | 25% | 25% | 25% | 20% | 25% | 25% | 25% | 25% |
| Max. climbing ability (loaded) @ 10.26:1 gear ratio | 15% | 20% | 20% | -- | -- | -- | -- | -- |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 370kgs | 370kgs | 370kgs | 370kgs | 370kgs | 370kgs | 370kgs | 370kgs |
| Net weight | 542kgs | 544kgs | 594kgs | 536kgs | 557kgs | 545kgs | 665kgs | 558kgs |
| Dimensions | ||||||||
| Overall dimensions (mm) | 3110X1180X1890 | |||||||
| Min. ground clearance (mm) | 120 | |||||||
| Wheelbase (mm) | 2450 | |||||||
| Front wheel tread (mm) | 855 | |||||||
| Rear wheel tread (mm) | 975 | |||||||
