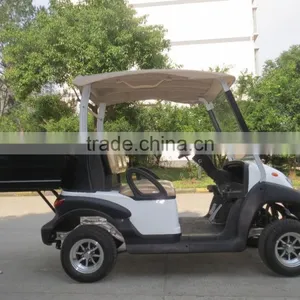

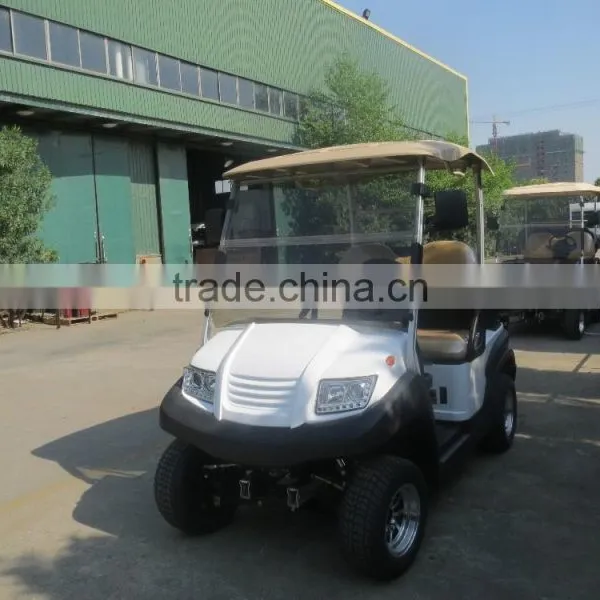

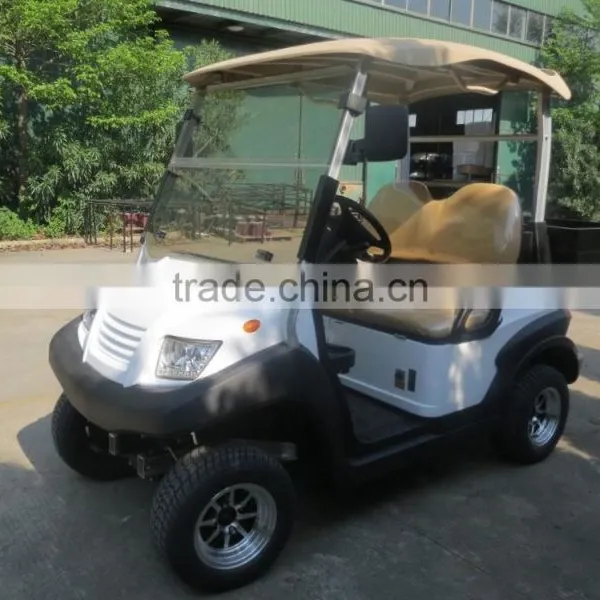

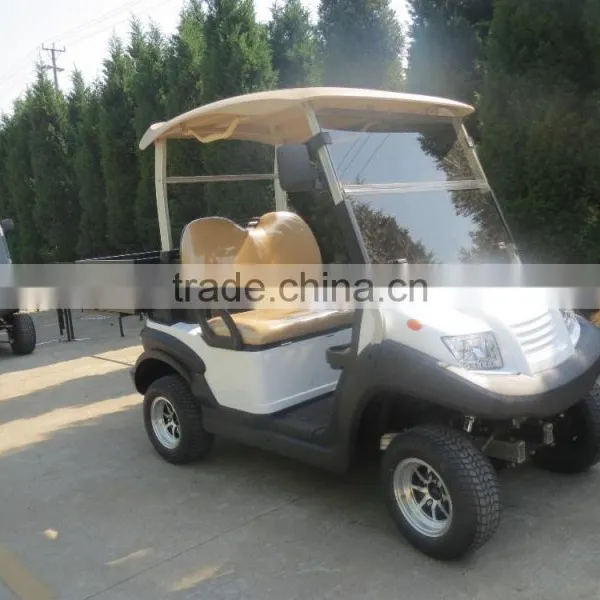

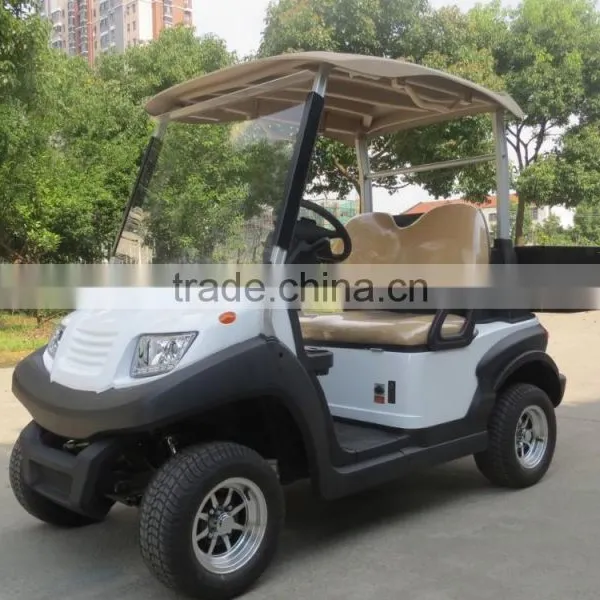

White 2 Seat Electric Golf Carts With a Small Rear Cargo

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

1 - 2

Fuel Type:

Electric

Battery Voltage:

48V

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 1 - 2

Fuel Type Electric

Battery Voltage 48V

Certification CE

White 2 seat electric golf carts with a small rear cargo

Max. speed is 32km/h upon the 12.76:1 gear ratio, Max. speed is 40km/h upon the 10.26:1 gear ratio.

Max. climbing ability (loaded) is 20% upon the 10.26:1 gear ratio

Product Description

Model	EG202AH	EG202AH	EG202AH02	EG202AH03	EG202AH04
System	48V/3KW AC	48V/3KW AC	36V/3KW Sepex	48V/4KW Sepex	48V/4KW Sepex
Key Components
Battery	6PCSxT875(145Ah@5hr rate)	8PCSxT105(185Ah@5hr rate)	6PCSxT105(185Ah@5hr rate)	6PCSxT875(145Ah@5hr rate)	8PCSxT105(185Ah@5hr rate)
Motor	3KW AC motor	3KW AC motor	3KW ADC	3.8KW Chinese motor	3.8KW Chinese motor
Controller	Zapi ACE0(280A@2minutes)	Zapi ACE0(280A@2minutes)	Curtis 1243 (300A@2minutes)	Curtis 1268 (400A@2minutes)	Curtis 1268 (400A@2minutes)
Performance
Passenger capacity	2	2	2	2	2
Range (loaded) based on flat road at a speed of 20km/h (km)^*	>60	>90	>40	>50	>80
Max. speed @12.76:1 gear ratio	32	32	21	32	32
Max. speed @10.26:1 gear ratio	--	--	--	40	40
Minimum turning radius (m)	3	3	3	3	3
Max. climbing ability (loaded) @ 12.76:1 gear ratio	25%	25%	20%	25%	25%
Max. climbing ability (loaded) @ 10.26:1 gear ratio	--	--	--	20%	20%
Max. movement after brake at speed of 20km/h	≤4m	≤4m	≤4m	≤4m	≤4m
Max. loading weight	370kgs	370kgs	370kgs	370kgs	370kgs
Net weight	490kgs	540kgs	486kgs	495kgs	545kgs
Dimensions
Overall dimensions (mm)	2866X1180X1800
Cargo box dimensions (mm)	770x1100x300
Min. ground clearance (mm)	120
Wheelbase (mm)	1680
Front wheel tread (mm)	1010
Rear wheel tread (mm)	1010
