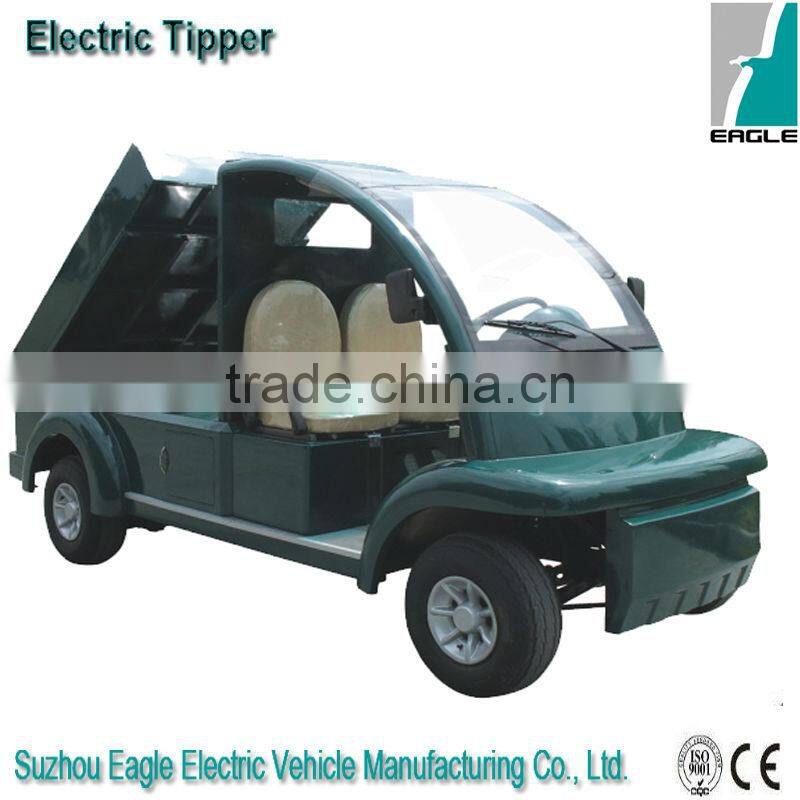

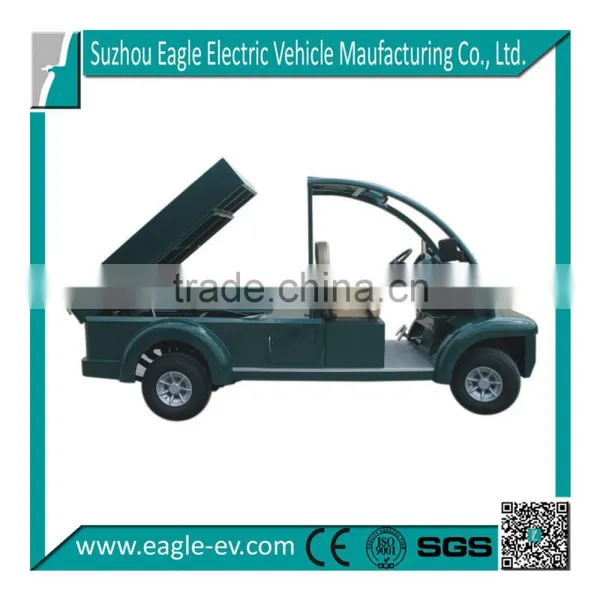

Electric Dump Truck, With Hydraulic Lifted Cargo Bed, EG6063T,CE Approved

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

1 - 2

Fuel Type:

Electric

Battery Voltage:

48V

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 1 - 2

Fuel Type Electric

Battery Voltage 48V

Certification CE

electric dump truck , with hydraulic lifted cargo bed, EG6063T

Description:

EG6063T, utility car, battery powered, with rear hydraulic lifted box, max.lifting weight of 500kgs, very convenient to unload stuffs

Product Description

Key Components

Item	Description
Controller	Curtis controller, 275A-400A, imported from USA directly
Motor	Rated power 4KW-5KW (5.4HP-6.8HP), Chinese brand or ADC brand
Battery	Trojan battery, T105+, imported from USA directly
Charger	High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 90
Max.speed (km/h)	up to 40
Min.turning radius (m)	4
Max.climbing ability(loaded)	up to 25%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	530
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Body	FRP and Plastic
Roof	FRP with steel frame, with roof handle
Windshield	Laminated glass with wiper
Roof supports	Steel
Seat	Reborn sponge with artificial leather, high back, with formed armrest
Rear cargo box	Steel, rear fender foldable, with hydraulic lifting function
Floor	Bamboo floor with Skidproof leather
Dashboard	FRP, with F/R switch, emergency light switch, digital meter, combination switch, storage box (2), etc..
Side rear view mirror	2pcs

Electric System

Item	Description
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	including switch for headlight, turning light, wiper and horn
DC/DC converter	48V/12V
Digital Meter	with Current meter, voltometer, speedometer, odometer and various indicators
Audio system	Radio with MP3 receiver and 2 waterproof speaker

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, steel differential case, 12.49:1 gear ratio
Wheel & Tyre	20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap

Option Accessories

To increase the sales value of our vehicles, we also provide many optional accessories.
