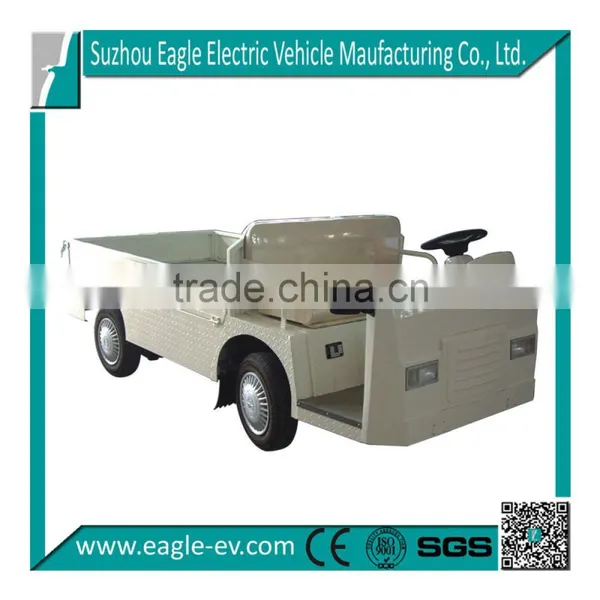

Airport Electric Car, 800kgs Loading Capacity, EG6021H, Brand New

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

1 - 2

Fuel Type:

Electric

Battery Voltage:

Other

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 1 - 2

Fuel Type Electric

Battery Voltage Other

Certification CE

airport electric car, 800kgs loading capacity, EG6021H

Description:

EG6021H, electric burden carrier, 800kgs loading capacity, rear cargo bed with 3-side open fenders, 48V system, 8pcs 185Ah T105 batteries

Product Description

Key Components

Item	Description
Controller	Curtis controller, 275A-400A, imported from USA directly
Motor	Rated power 5KW (6.8HP)DC motor, Chinese brand
Battery	Trojan battery, T105+, imported from USA directly
Charger	48V high frequence onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 50
Max.speed (km/h)	up to 40
Min.turning radius (m)	4.3
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	1500
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Body	Steel plate
Seat	Reborn sponge with artificial leather, with steel armrest
Floor	Bamboo floor with Skidproof leather
Rear cargo bed	Steel side fender, rear foldable fender, bottom board with plywood+ galvanized steel plate on the top
Beverage holders	1 cups holders
Side rear view mirror	2pcs, one long-arm mirror and one small mirror

Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch
DC/DC converter	48V/12V
Digital Meter	with Current meter, voltometer, speedometer and various indicators

Steering & suspersion

Item	Description
Steering System	Recirculating ball-type steering gear
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	non-independent suspension, cylinder hydraulic vibration absorber and leaf spring
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission system	Clutch, 4F+1R gear box, transmission shaft
Wheel & Tyre	12*3.00D steel rim, 5.00-12 tyre
