2 Seat Small Golf Cart in 2015

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

1 - 2

Fuel Type:

Electric

Battery Voltage:

48V

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Seats 1 - 2

Fuel Type Electric

Battery Voltage 48V

Certification CE

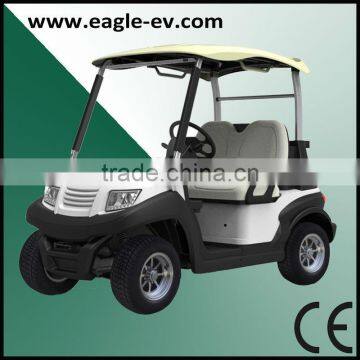

2015 new model electric golf car EG202AK

Product Description

Key Components

Item	Description
Controller	Curtis controller, 275A-400A, imported from USA directly
Motor	Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T875 or T105+, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A, 36V,25A)

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 100
Max.speed (km/h)	up to 40
Min.turning radius (m)	3
Max.climbing ability(loaded)	up to 25%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	270
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Body and Frame

Item	Description

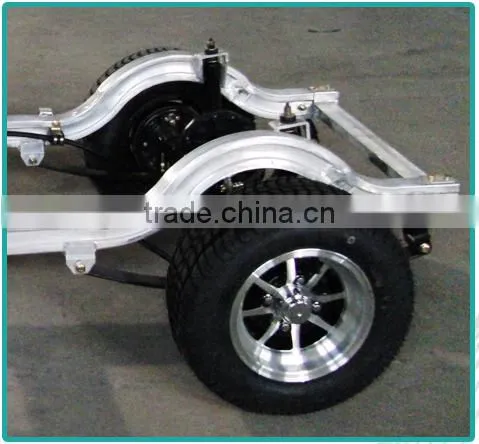

Frame & Chassis	Aluminum alloy beam, bended
Body	PP plastic front and rear body cover, injected
Roof	Plastic
Windshield	One-piece organic glass (PMMA)
Roof supports	Aluminum with black powder coating
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Plastic, black texture finish
Floor mat	Skidproof rubber
Centre sweater basket	Plastic, large volume
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders	4 cups holders, 2 each side
Side trim	Plastic, black
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	12V, headlight (with hight/low beam), front turning light, LED front position light, LED taillights (includes brake lights and turning light),
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch
DC/DC converter	36V/12V, 48V/12V
Digital Meter (optional)	Including speedomter, mileage, various indicators including: headlight indicator, turning light indicator, parking indicator, emergency light indicator, reverse indicator

Steering and Suspension

Item	Descriptio
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	Rear wheel mechanical brake with hand park brake
Accelerator	Holzer type, stepless speed change

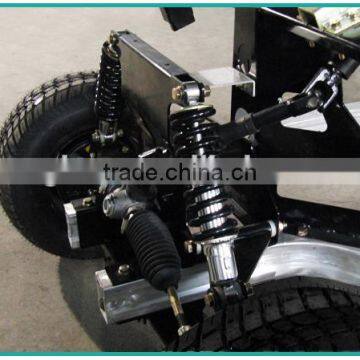

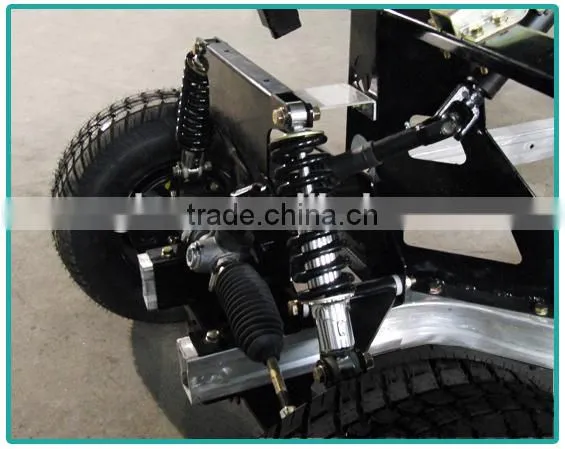

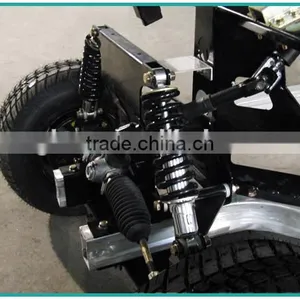

Front suspension	Double-arm, independent suspension

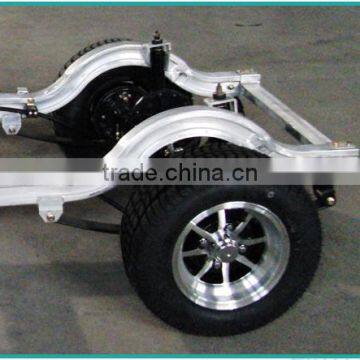

Rear suspension	Taper leaf spring with hydraulic cylinder shock absorber
Driving model	Rear axle two stage deceleration, motor direct driving
Rear axle	Aluminum differential cage, integrated, 12.76:1 gear ratio
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR

To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description	Item	Option description
1	Hinged windshield	7	Side rear view mirror
2	Laminated windshield with wiper	8	Enclosure
3	2-point seatbelt	9	Digital meter
4	Backrest cover in wood finish	10	Battery watering pipe
5	Steering wheel in wood finish	11	Water pump (handle)
6	Inner rear view mirror	12	EM brake
