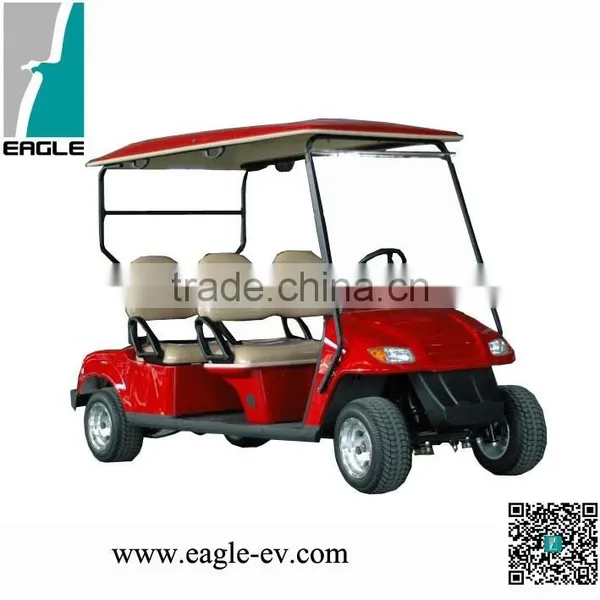

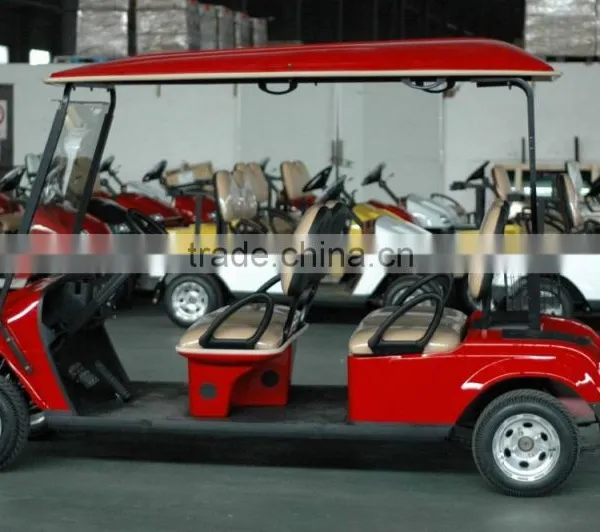

four seats electric golf cart , CE certificate
four seats electric golf cart
| Specifications | Model | EG2049K |
| Key Components | Power Source | Pure Electric |
| Electric System | Both AC and DC system are available | |
| Battery | Trojan battery | |
| Motor | ADC motor or Chinese Motor | |
| Controller | Curtis controller | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, | |
| Performance | Passenger capacity | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | Up to 90 | |
| Max. speed | Up to 40 | |
| Minimum turning radius (m) | 4.5 | |
| Max. climbing ability (loaded) | Up to 20% | |
| Max. movement after brake at speed of 20km/h | ≤4m | |
| Max. loading weight | 480kgs | |
| Dimensions | Overall dimensions (mm) | 3110X1180X1890 |
| Min. ground clearance (mm) | 120 | |
| Wheelbase (mm) | 2450 | |
| Front wheel tread (mm) | 855 | |
| Rear wheel tread (mm) | 975 | |
| Body and Frame | Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body | |
| Roof | Injected plastic | |
| Electric system | Lighting system and horn | Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake | |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |
| Driving mode | Rear axle two stage deceleration, motor direct driving | |
| Rear axle | Integrated | |
| Wheel & Tyre | Alumimum wheel & 205/50-10 Tyre | |
| Options | Hinged Windshield | |
| Stainless steel package | ||
| Meter (available for 48V system) | ||
| 2 point seat belt | ||
| Formed seat&backrest vinyl | ||
| Wood finish Package | ||
| Inner & Side rear view mirror | ||
| Solar Panel | ||
| Cooler | ||
| on-body charger | ||
| Right hand drive system | ||
| 4-wheel hydraulic brake system | ||
| Enclosure | ||
| Body Color | Up to 6 kinds of standard color for option | |
| Loading | Both Assembly and Disassembly are available | |
Option
1. Laminated windshield with wiper
2. Stainless steel package
3. Aluminum roof support
4. 2 point seat belt
5. Formed seat backrest vinyl
6. Backrest cover in wood finish
7. Dashboard in wood finish
8. Steering wheel in wood finish
9. Glove box door (include two locks) in black plastic
10. Glove box door (include two locks) in wood finish (inside and outside)
11. Inner rear view mirror
12. Side rear view mirror
13. Battery watering system ,48V system
14. Manual Pump
15. Enclosure
16. Meter(only available for 48V system)
17. Police Light
18. 12V accessory plug
19. Hour meter
20. Solar Panel
21. on board charger
22. Right hand drive system(NO extra cost)
23. 4-wheel hydraulic brake + hand brake
24. 4-wheel hydraulic brake, front disc brake, rear drum brake
25. Rear axle: Integrated, Gear ratio 10.26:1
26. Customized color is available, but extra cost should be paid
| Container loading qty | Disassembled | Assembled |
| Qty/20' | 6units | 4units |
| Qty/40' | 14units | 8units |
| Qty/40'HQ | 22units | 8units |
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.

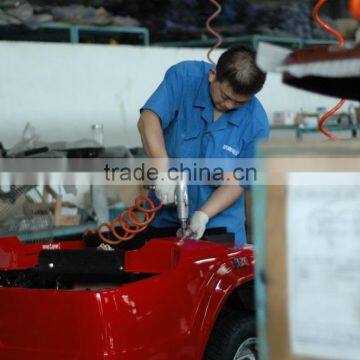

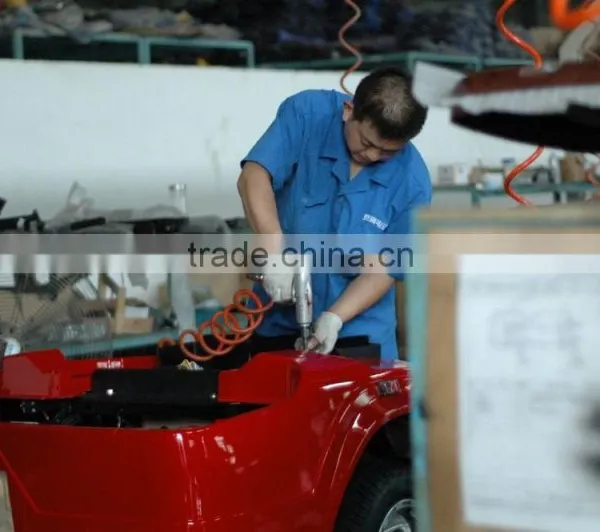

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles,
includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on
standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with
the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
