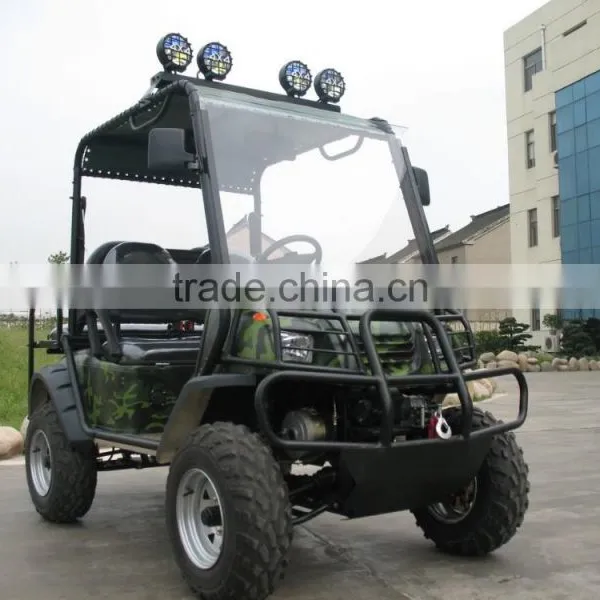

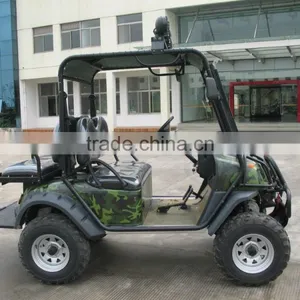

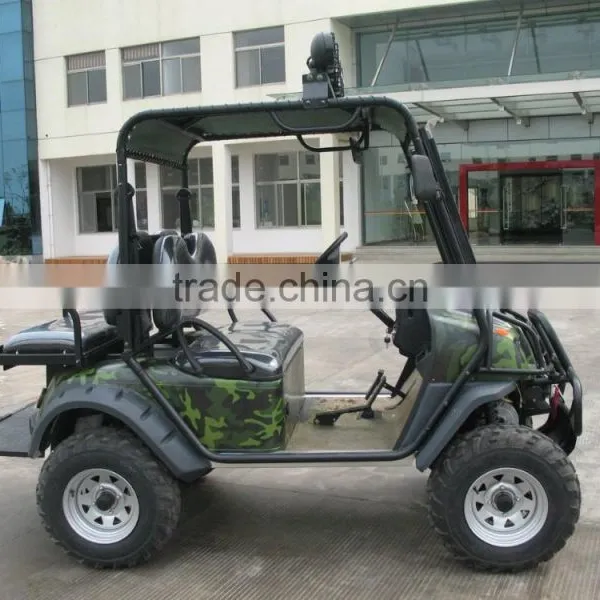

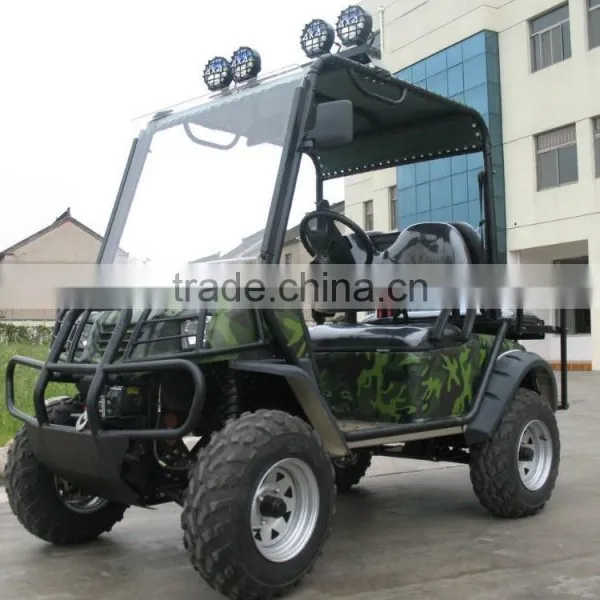

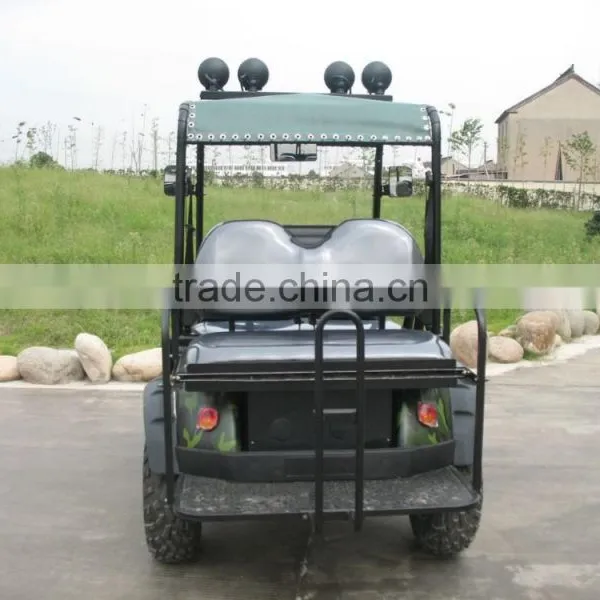

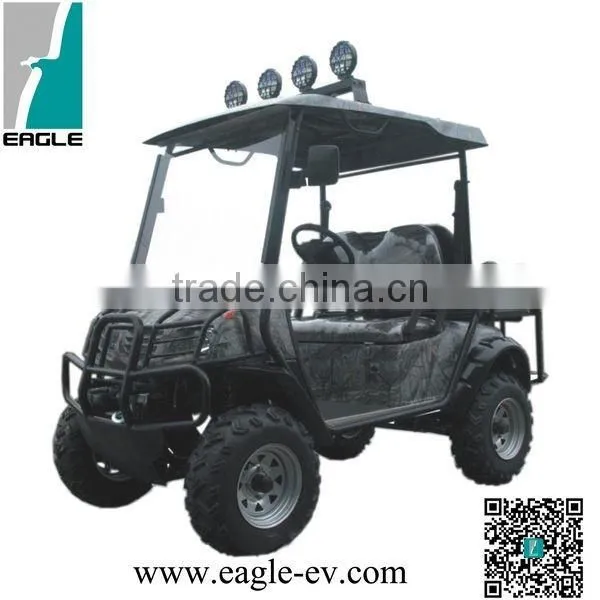

four wheel drive electric hunting buggy
LSV approved
CE approved
| Specifications | Model | EG6020A4D |
| Key Components | Power Source | Pure Electric |
| Electric System | 48V/4KW Sepex | |
| Battery | Trojan battery | |
| Motor | Chinese Motor | |
| Controller | Curtis controller | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |
| Performance | Passenger capacity | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | Up to 40 | |
| Max. speed | Up to 40 | |
| Minimum turning radius (m) | 4 | |
| Max. climbing ability (loaded) | Up to 30% | |
| Max. movement after brake at speed of 20km/h | ≤4m | |
| Max. loading weight | 400kgs | |
| Dimensions | Overall dimensions (mm) | 3030x1395x1990(without searching light) |
| Min. ground clearance (mm) | 415(16inch) | |
| Wheelbase (mm) | 1660 | |
| Front wheel tread (mm) | 850 | |
| Rear wheel tread (mm) | 975 | |
| Body and Frame | Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body | |
| Roof | Fiberglass | |
| Electric system | Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. |
| Steering and Suspension | Steering system | Steel frame with phosphate+powder coating treatment,black color |
| Brake system | 4-wheel hydraulic disc brake + hand brake | |
| Suspension system | Independent suspension(FW) & Integrated rear end, leaf spring + shock absorber(RW) | |
| Driving mode | Front axle drive and rear axle drive (4x4) | |
| Rear axle | Gear ratio12.49:1 | |
| Wheel & Tyre | 12x7 Steel wheel, 25 x 8-12 tyre | |
| Option | 3point seat belt | |
| Gun holder | ||
| Formed seat&backrest vinyl | ||
| Backrest cover in wood finish | ||
| Dashboard in wood finish | ||
| Steering wheel in wood finish | ||
| Glove box door (include two locks) in wood finish (inside and outside) | ||
| Inner rear view mirror | ||
| Enclosure | ||
| Hour meter | ||
| 12V accessory plug | ||
| Winch | ||
| Searching light | ||
| Meter(only available for 48V system) | ||
| 22 x 11-10 tyre, 10*8 Aluminum wheel | ||
| On-board charger, input 85V~265V, 45~65Hz, output 36V/21A, 48V/18A | ||
| 12x7 steel Rim in camo color | ||
| Body Color | Up to 6 kinds of standard color for option | |
| Loading | Both Assembly and Disassembly are available | |
| Container loading qty | Disassembled | Assembled |
| Qty/20' | 4units | 1units |
| Qty/40' | 10units | 3units |
| Qty/40'HQ | 14units | 3units |
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.
With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.
