Home > Sporting Goods & Recreation > Golf Cart > Electric Service Vehicles, EG6043P, 4 Seats, CE Approved Pure Electric Vehicle

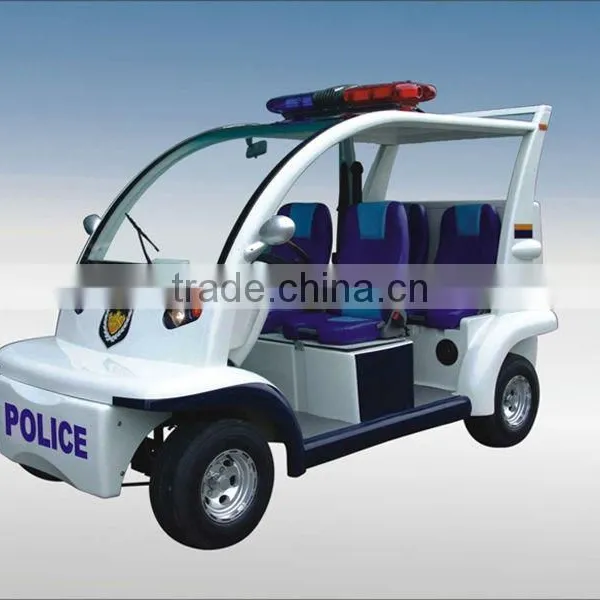

Electric Service Vehicles, EG6043P, 4 Seats, CE Approved Pure Electric Vehicle

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Electric Service Vehicles, EG6043P, 4 Seats, CE Approved Pure Electric Vehicle thumbnail-1
Electric Service Vehicles, EG6043P, 4 Seats, CE Approved Pure Electric Vehicle photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
3 - 4
Fuel Type:
Electric
Battery Voltage:
48V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Seats 3 - 4
Fuel Type Electric
Battery Voltage 48V
Certification CE
Product Description




electric service vehicles 4 seats, CE approved pure electric vehicle
---EG6043P



Model
EG6043P
System
48V/4KW Series
Battery
8xT105(185Ah@5hr rate)
Motor
3.8KW Chinese motor
Controller
Curtis 1204 (275A@2minutes)
Dimensions
Overall dimensions (mm)
3060x1400x1900
Min. ground clearance (mm)
155
Wheelbase (mm)
2080
Front wheel tread (mm)
1210
Rear wheel tread (mm)
1160
Electric system
Lighting system and horn
2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Charger
China origin, input
Steering and Suspension
Steering system
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
4-wheel hydraulic brake + hand brake
Accelerator
Stepless speed change
Suspension system
Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio 12.49:1
Wheel & Tyre
225/55B12 6PR tire, 12X7 aluminum wheel
Body and Frame
Frame
Welded steel framework with sand blasting+paint treatment
Body
Fibreglass + Plastic
Hard door
Steel
Roof
Fibreglass
Windshield
Laminated glass
3point seat belt
4pcs
Large Seats:
1) backrest and cushion
Sponge + artificial leather
2) armrest
Soft expanded plastic
Hand holder for front passenger
1pc hand holder fixed under the roof
Hand holder for rear passenger
2pcs, fixed in the back of front backrest
Rear storage box
Fibreglass
Floor
Bamboo + artificial leather
Side rear view mirror
Two pieces per cart
Performance
Passenger capacity
4
Range (loaded) based on flat road at a speed of 20km/h (km)＊
>80
Max. speed @12.49:1 gear ratio
32
Max. speed @10.25:1 gear ratio
/
Minimum turning radius (m)
4
Max. climbing ability (loaded) @ 12.49:1 gear ratio
20%
Max. climbing ability (loaded) @ 10.25:1 gear ratio
15%
Max. movement after brake at speed of 20km/h
≤4m
Max. loading weight
370kgs
Net weight
735kgs

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

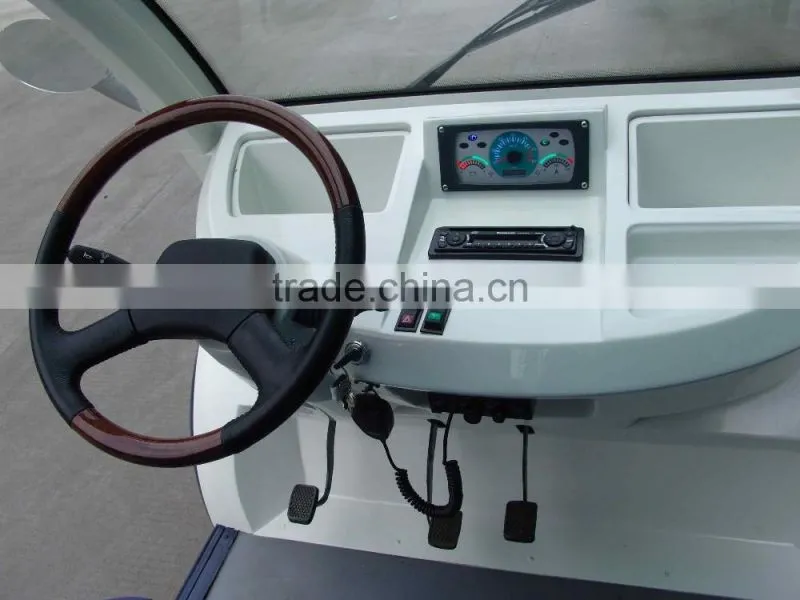

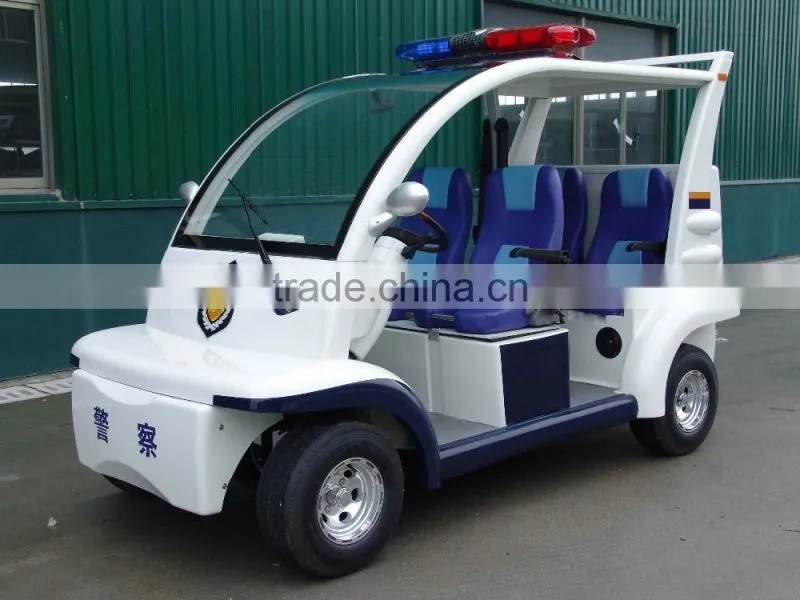

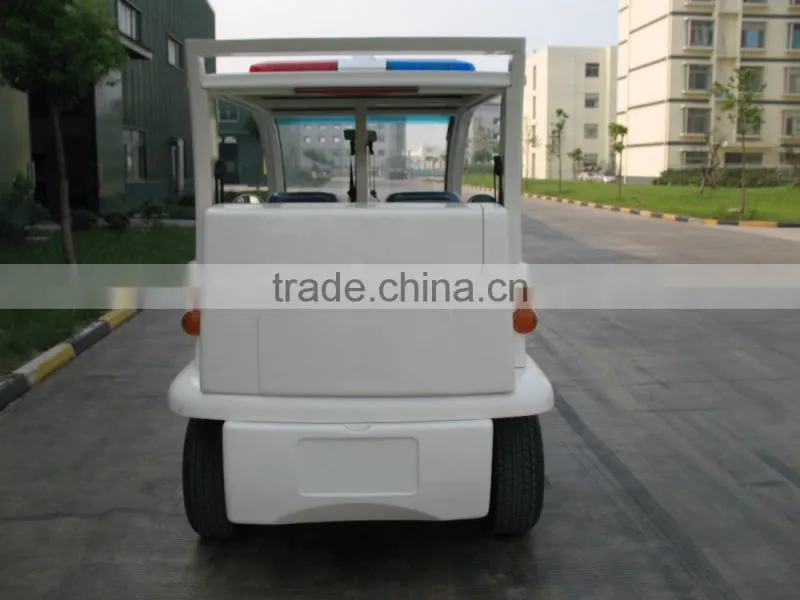

Detailed Images
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Container loading qty
Disassembled
Qty/20'
2units
Qty/40'
6units
Qty/40'HQ
6units
Other Products

EG2028HR

.http://www.china.cn/product-detail/Street-legal-electric-for-europe-market_60477553624.html

EG2048H

http://www.china.cn/product-detail/4-4-golf-cart-with-cargo_60151819172.html

Our Company

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Our Service

 1) Customization is available

2)  13 months warranty from shipping date

3)  FOC spare parts provided

Certifications
