Low Speed Vehicles,6 Seats, CE Approved Electric Service Vehicles,EG6063KA

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Low Speed Vehicles,6 Seats, CE Approved Electric Service Vehicles,EG6063KA thumbnail-1
Low Speed Vehicles,6 Seats, CE Approved Electric Service Vehicles,EG6063KA thumbnail-2

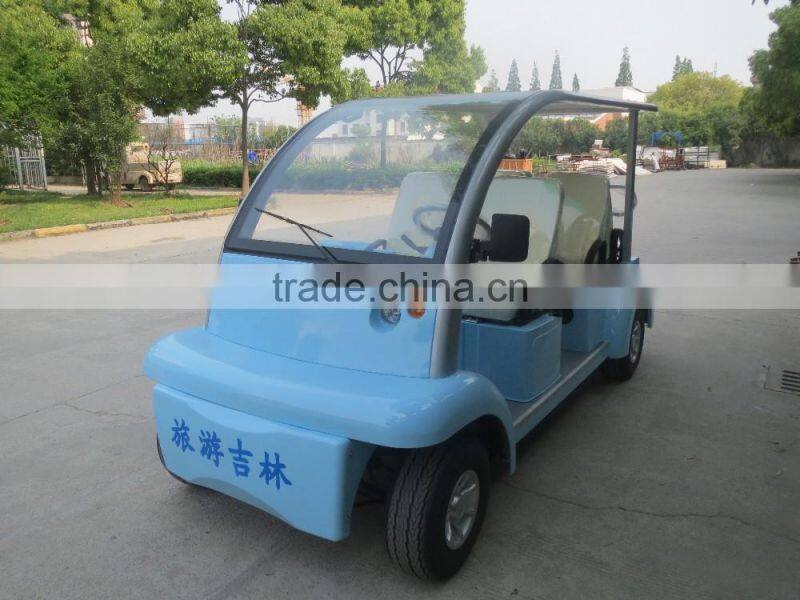

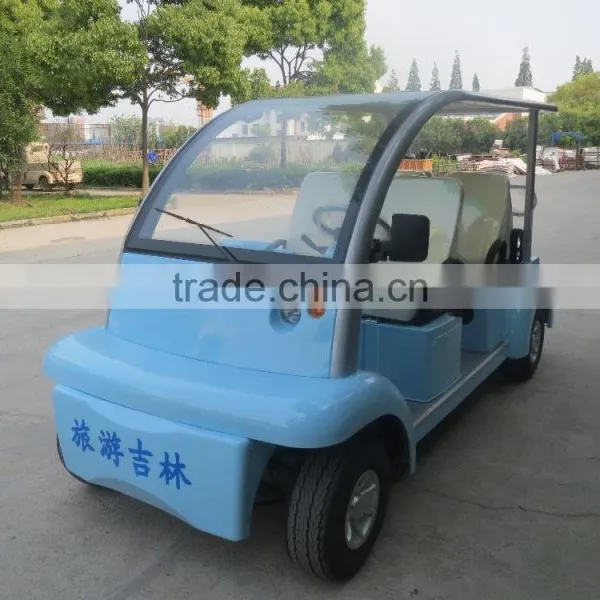

Low Speed Vehicles,6 Seats, CE Approved Electric Service Vehicles,EG6063KA photo-1

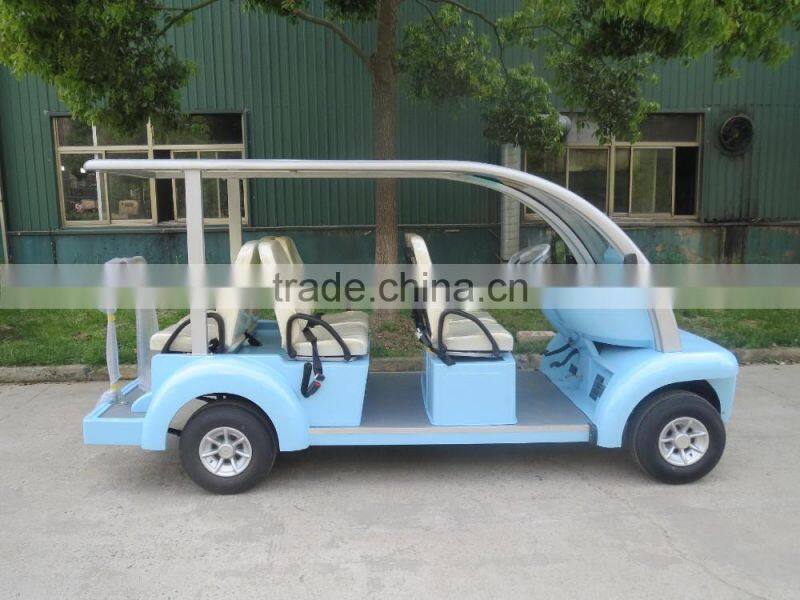

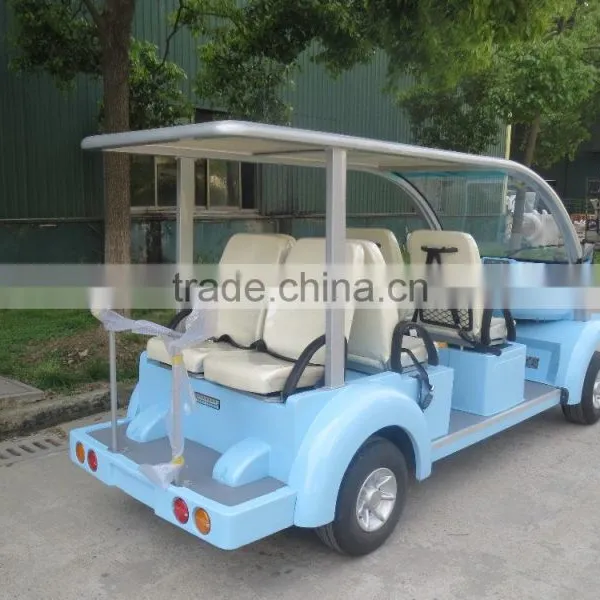

Low Speed Vehicles,6 Seats, CE Approved Electric Service Vehicles,EG6063KA photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
5 - 6
Fuel Type:
Electric
Battery Voltage:
48V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Seats 5 - 6
Fuel Type Electric
Battery Voltage 48V
Certification CE
Product Description



low speed vehicles,6 seats, CE approved electric service vehicles
----EG6063KA



Model
EG6043KA
System
48V/4KW Series
Battery
8xT105(185Ah@5hr rate)
Motor
3.8KW Chinese motor
Controller
Curtis 1204 (275A@2minutes)
Dimensions
Overall dimensions (mm)
3750X1400X1810
Min. ground clearance (mm)
140
Wheelbase (mm)
2450
Front wheel tread (mm)
1160
Rear wheel tread (mm)
1150
Electric system
Lighting system and horn
2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Charger
China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A
Steering and Suspension
Steering system
Single-stage rack and pinion steering system
Brake system
4-wheel hydraulic brake + hand brake
Accelerator
Stepless speed change
Front suspension
Independent suspension, helix spring + shock absorber
Rear suspension
rear plate spring + shock absorber
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio12.49:1
Wheel & Tyre
20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap
Body and Frame
Frame
Welded steel framework with sand blasting
Body
Fibreglass + Plastic
Roof
Fibreglass + Steel Frame
Windshield
Laminated glass
Large Seats:
1) backrest and cushion
Sponge + artificial leather
2) armrest
Soft expanded plastic
Floor
Bamboo + artificial leather
Performance
Passenger capacity
6
Range (loaded) based on flat road at a speed of 20km/h (km)＊
>75
Max. speed @12.49:1 gear ratio
32
Minimum turning radius (m)
4
Max. climbing ability (loaded) @ 12.49:1 gear ratio
20%
Max. movement after brake at speed of 20km/h
≤4m
Max. loading weight
530kgs
Net weight
740kgs

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

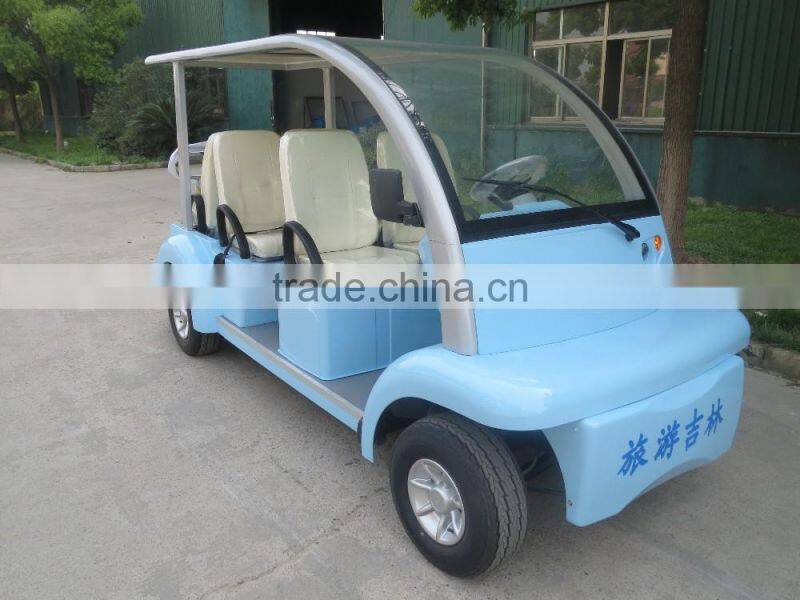

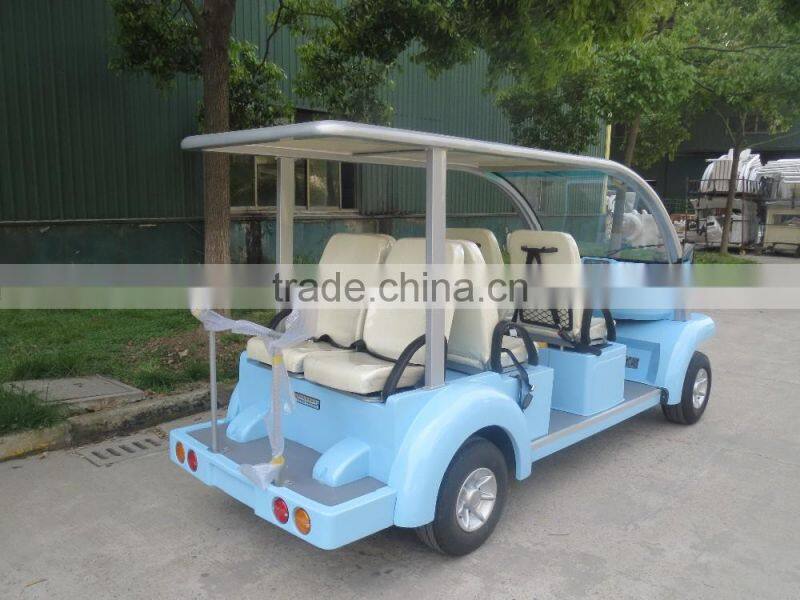

Detailed Images
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Container loading qty
Disassembled
Qty/20'
2units
Qty/40'
6units
Qty/40'HQ
6units
Other Products

EG2028HR

.http://www.china.cn/product-detail/Street-legal-electric-for-europe-market_60477553624.html

EG2048H

http://www.china.cn/product-detail/4-4-golf-cart-with-cargo_60151819172.html

Our Company

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Our Service

 1) Customization is available

2)  13 months warranty from shipping date

3)  FOC spare parts provided

Certifications
