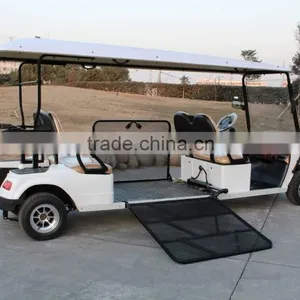

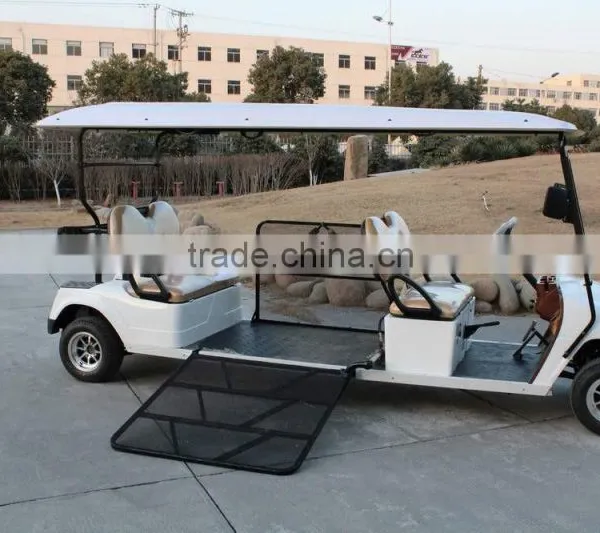

Help CenterElectric Handicapped Car, With Hydraulic Ramp for Wheelchair, EG2068T
Related Products
-
Sport Golf 2 Seater Small Golf Cart,EG2028KSZNegotiableMOQ: 1 Unit -
Electric Utility Cargo Vehicle, 2 Seats With Cargo Bed, CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Utility Golf Cart With Cargo Box, CE Approved, EG2048HNegotiableMOQ: 1 Unit
-
Electric Golf Carts Made in China Golf Clubs for Sale,EG2028KSFNegotiableMOQ: 1 Unit
-
Prices Electric Golf Buggy With Rear Jumper Seat, CE Approved, EG2048KSFNegotiableMOQ: 1 Unit
| Item | Description |
| Controller |
Curtis controller, 400A, imported from USA directly
|
| Motor |
Rated 5KW (6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available
|
| Battery |
Trojan battery, T105+, imported from USA directly
|
| Charger |
High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
| Item | Description |
| Passenger Capacity | 4+1 |
Range (loaded) (km)* |
up to 75 |
| Max.speed (km/h) | up to 32 |
| Min.turning radius (m) | 6 |
| Max.climbing ability(loaded) | up to 15% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 640 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
| Item | Description |
| Overall dimensions (mm) | 4430x1180x1890 (LxWxH) |
| Min.ground clearance (mm) | 120 |
| Wheelbase (mm) | 3200 |
| Front wheel tread (mm) | 855 |
| Rear wheel tread (mm) | 975 |
| Item | Description |
| Frame & Chassis | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front and rear body cover, injected |
| Roof | FRP |
| Windshield | One-piece organic glass (PMMA) |
| Roof supports | Carbon steel, powder coated, black |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Formed |
| Floor mat | Skidproof rubber |
| Dashboard | Black plastic, with F/R switch, battery power indicator, ignition key on it |
| Beverage holders | 4 cups holders, 2 big and 2 small |
| Side trim | Extruded aluminum |

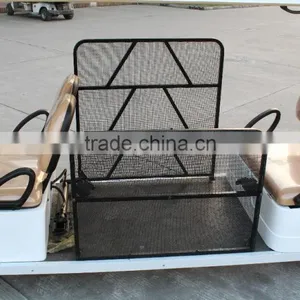

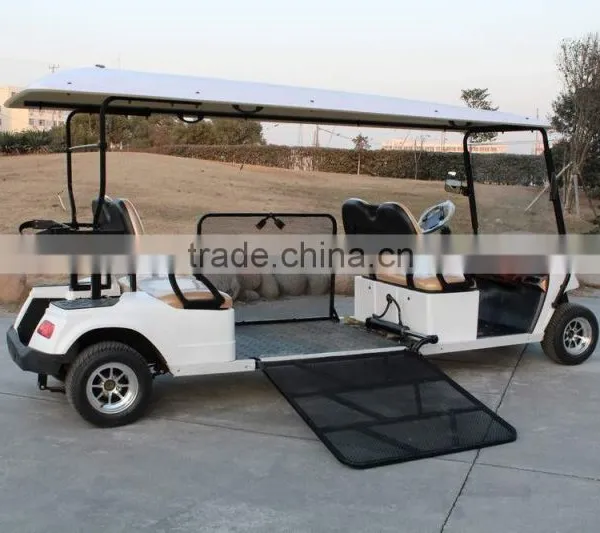

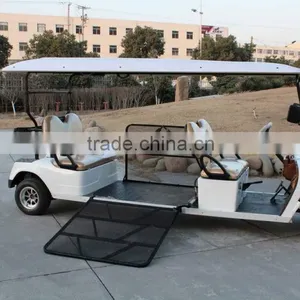

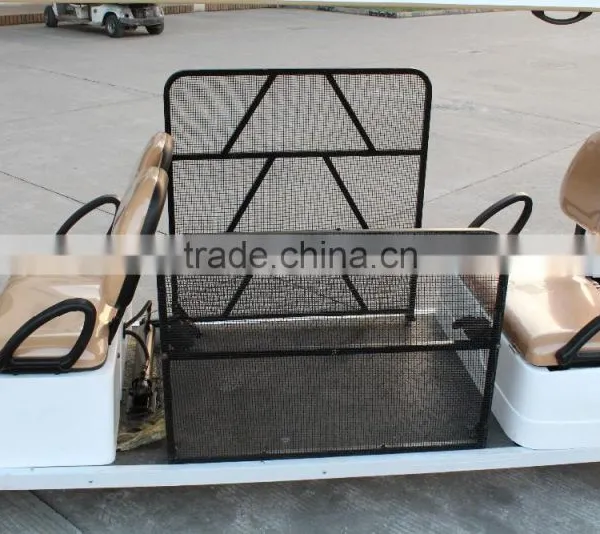

| Ramp | Carbon Steel, with hydraulic lifted function |
| Score card holder | On the steering wheel |
| Item | Description |
| Lights | 12V, headlight, front turning light, taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 48V/12V |
| Item | Description |
| Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | 4-wheel hydraulic drum brake with hand park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Cylinder hydraulic shock absorber and leaf spring |
| Rear suspension | Cylinder hydraulic shock absorber and leaf spring |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Steel differential cage, integrated, 12.76:1 gear ratio |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
To increase the sales value of our vehicles, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | Hinged windshield | 11 | Enclosure |
| 2 | Laminated windshield with wiper | 12 | Digital meter |
| 3 | 2-point seatbelt | 13 | 12V plug |
| 4 | Backrest cover in wood finish | 14 | Hour meter |
| 5 | Steering wheel in wood finish | 15 | Solar panel |
| 6 | Inner rear view mirror | 16 | Cooler box |
| 7 | Side rear view mirror | 17 | Battery watering pipe |
| 8 | STS or aluminum roof supports | 18 | Water pump (handle) |
| 9 | Wooden finish dashboard,steering wheel and dashboard | 19 | |
| 10 | Glove box with door and lock | 20 |

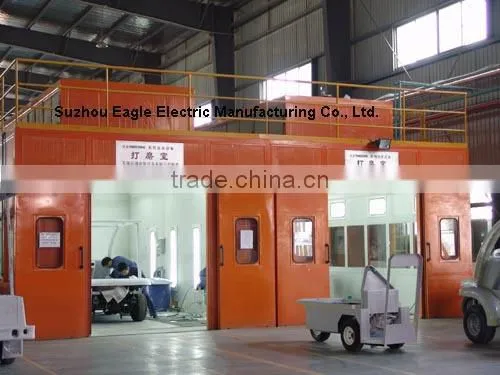

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.

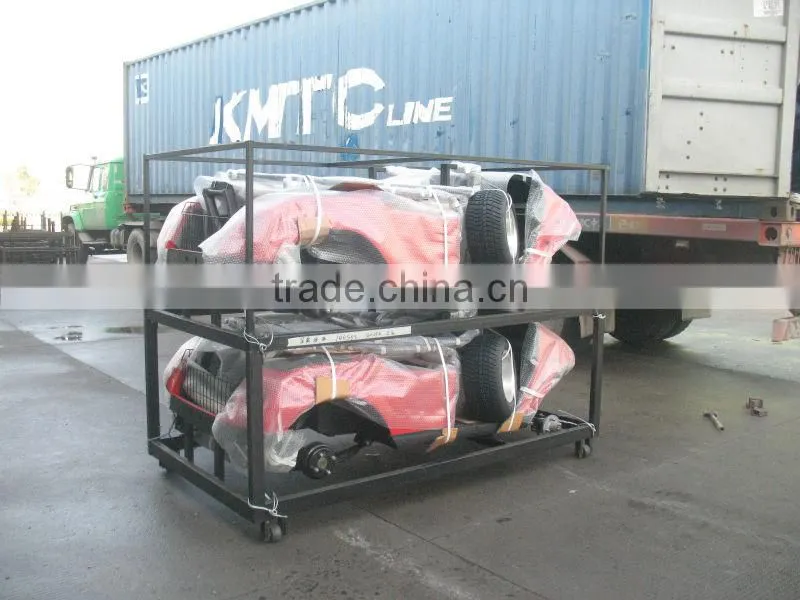

| Container loading qty | Disassembled | Assembled |
| Qty/20' | 4units | 2units |
| Qty/40' | 8units | 4units |
| Qty/40'HQ | 12units | 4units |
1. Why EV?
There should be at least three reasons for EV:
Firstly, decrease pollution! EV as a zero-emission-car can help improve the environment a lot;
Secondly, decrease the cost! Though the initial buy cost of EV is higher than gasoline car, the maintenance cost of EV will be extremely lower than gasoline car. Based on calculation, for a 48V EV, it only consumes 2KWH electricity per 100kms. Cost is much lower than gasoline car.
Thirdly, energy independent! For a country who is lack of oil source, it should find a way to make itself independent from oil. Water resource, sun resource and wind resource are potential alternative resource. The problem is to find a medium to storage the energy. Then battery will be the best choice at this moment.
2. What kind of warranty Eagle provides?
Eagle provides one year limited warranty to its products sold to oversea countries. Eagle provides two standard warranty polices. One is, Eagle provides free spare parts valued 2% of FOB Shanghai price of the vehicles ordered to cover individual problems happened in daily use, in the same time, Eagle covers massive failure happened within one year. Another one is, Eagle provides free spare parts valued 1.4% of FOB Shanghai price of the vehicles ordered to cover individual problems happened on components except controller, motor, charger and rear end in daily use, in the same time, Eagle will cover all the interior quality problems of controller, motor, charger and rear end and massive failure of other components. For details, please contact us.
3. What kind of battery is mounted on Eagle electric vehicle?
Currently, Lead-acid battery is mounted on Eagle electric vehicle. However, Eagle is testing Lithium battery, in the future, Lithium battery will be mounted on Eagle electric vehicle.
4. How long will it take to charge Eagle electric vehicle?
Eagle electric vehicles are equipped with Lead-acid battery, to charge the battery fully, it will take 8-10 hours. Eagle is testing lithium battery. It will take 3-4 hours to charge lithium battery fully.
5. Can Eagle electric vehicle be used on public road?
Most of the electric vehicles Eagle produced are off-road vehicles, they cannot be driven on public road. However, there are still several models can be used on public road in some countries. There are two models EG6043KR-00 and EG6043KR-01 that can be used as street-legal vehicle in Europe. And the personal carrier models with passenger capacity less than 8 can be used as Low Speed Vehicle (LSV) in USA. Anyway, before you drive the electric vehicle on public road, please register your electric vehicle in your local transport department to get license plate. For other countries, if you want to drive the electric vehicle on public road, please consult your local transportation bureau. PLEASE NEVER DRIVE EAGLE ELECTRIC VEHICLE ON PUBLIC ROAD WITHOUT LOCAL TRANSPORTATION BUREARU PERMISSION! In the same time, we hope more and more countries will have their own regulations for electric vehicle in order to push the use of electric vehicle.
6. Can I be an agent for Eagle? If yes, how can I?
Eagle hasn’t started to prompt its own brand till 2009. From 2010, Eagle started to promote its brand in some countries, it will be done step by step. If you want to represent Eagle to promote its products and its brand, please contact Eagle’s people (please refer to contact information from Contact Us!
To be an agent for Eagle, a contract will be signed, for details, please contact us!
7. Where can I get spare parts for Eagle electric vehicle?
If you are the end user, you can contact the company where you get Eagle electric vehicle; if you are the end user, but you are not able to contact the company whom you buy Eagle electric vehicle from, you can get the spare parts from Eagle directly; if you buy Eagle electric vehicle from Eagle directly, you can get spare parts from Eagle. If any spare part is stopped using or be replaced by improved one, that spare part will be available in 5 years from the date when that spare part is stopped using.
8. Where can I get after service for Eagle electric vehicle?
Eagle requires its customers (distributor, dealer, agent, importer, etc.) have the ability to provide after service themselves. Its customers will provide after service. Eagle will provide technical support if necessary.
9. Can I buy one vehicle as a sample to test the market?
Yes, Eagle doesn’t have requirement of MOQ. However, if order quantity is less than one full container, there will have extra cost for special packing.
10. How should I maintain the batteries?
Eagle uses Trojan batteries, please refer to Trojan’s website at for maintenance details.
