Electric Farm Vehicle 2 Person EG6023K

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Electric Farm Vehicle 2 Person EG6023K thumbnail-1
Electric Farm Vehicle 2 Person EG6023K photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
48V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Seats 1 - 2
Fuel Type Electric
Battery Voltage 48V
Certification CE
Product Description

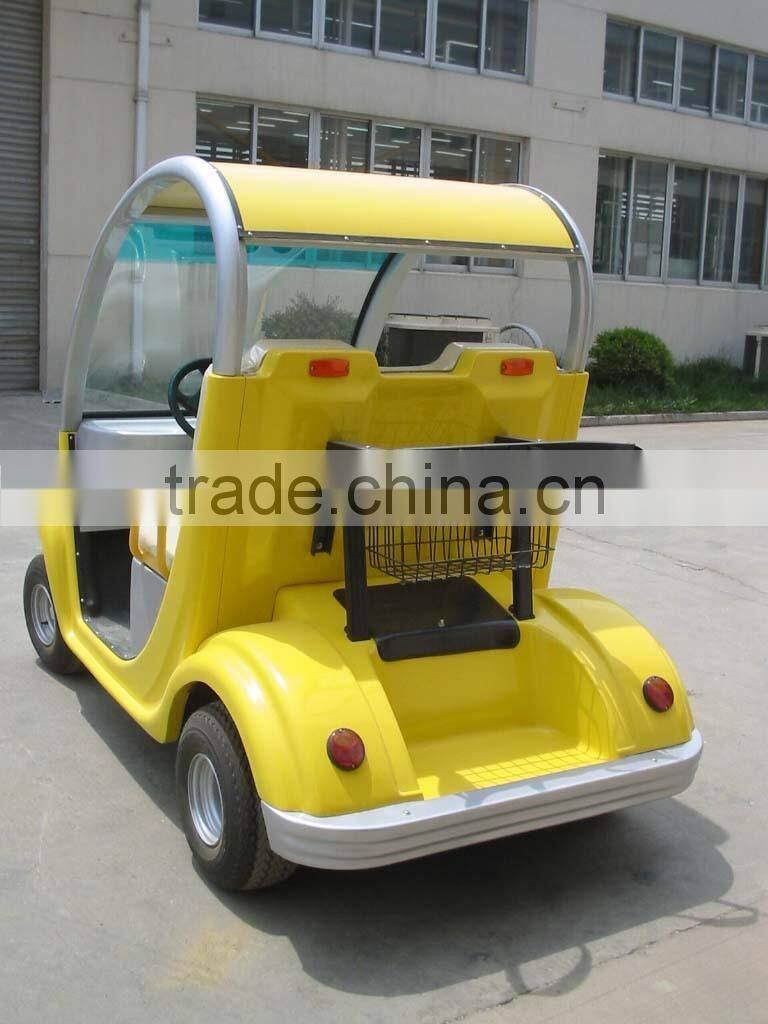

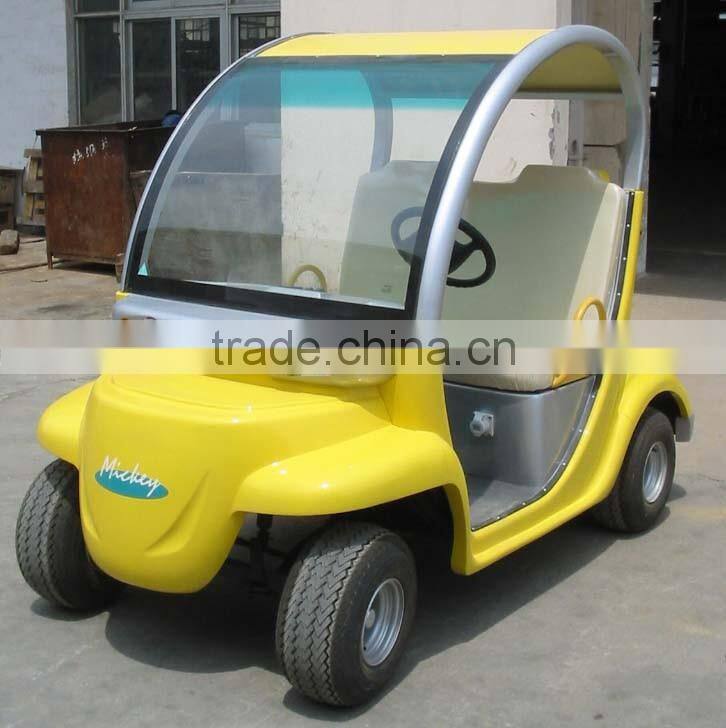

electric farm vehicle 2 person EG6023K


Model
EG6023k
System
48V/4KW Sepex
Battery
6xT875(145Ah@5hr rate)
Motor
3.8KW Chinese motor
Controller
Curtis 1268 (400A@2minutes)
Dimensions
Overall dimensions (mm)
2680X1290X1900
Min. ground clearance (mm)
95
Wheelbase (mm)
N/A
Front wheel tread (mm)
N/A
Rear wheel tread (mm)
N/A
Electric system
Lighting system and horn
2 headlights, 2 front turn signals, 2 lowly-positioned taillights (including brake light and turn signal ), 2 highly-possioned brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Charger
China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A
Steering and Suspension
Steering system
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
Mechanical brake
Accelerator
Stepless speed change
Suspension system
Front and rear plate spring + vibration absorber
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio 12.76:1
Wheel & Tyre
8*7 steel rim with wheel cap, 18*8.5-8 4PR tyre
Body and Frame
Frame
Welded steel framework with sand blasting+paint treatment
Body
Fibreglass
Roof
Fibreglass+steel frame
Windshield
Laminated glass
2 point seat belt
Large Seats:
1) backrest and cushion
Sponge + artificial leathe
2) armrest
Steel pipe
Performance
Passenger capacity
2
Range (loaded) based on flat road at a speed of 20km/h (km)＊
>60
Max. speed @12.76:1 gear ratio
32
Max. speed @10.17:1 gear ratio
40
Minimum turning radius (m)
3.6
Max. climbing ability (loaded) @ 12.49:1 gear ratio
20%
Max. climbing ability (loaded) @ 10.25:1 gear ratio
15%
Max. movement after brake at speed of 20km/h
≤4m
Max. loading weight
270kgs
Net weight
560kgs

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Container loading qty
Assembled
Qty/20'
2units
Qty/40'
4units
Qty/40'HQ
4units
Other Products

EG2028HR

.http://www.china.cn/product-detail/Street-legal-electric-for-europe-market_60477553624.html

EG2048H

http://www.china.cn/product-detail/4-4-golf-cart-with-cargo_60151819172.html

Our Company

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Our Service

 1) Customization is available

2)  13 months warranty from shipping date

3)  FOC spare parts provided
