Fleet Golf Car, 2 Seats, Electric, EG2029K Two Seats Golf Cart

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Fleet Golf Car, 2 Seats, Electric, EG2029K Two Seats Golf Cart thumbnail-1
Fleet Golf Car, 2 Seats, Electric, EG2029K Two Seats Golf Cart thumbnail-2
Fleet Golf Car, 2 Seats, Electric, EG2029K Two Seats Golf Cart photo-1

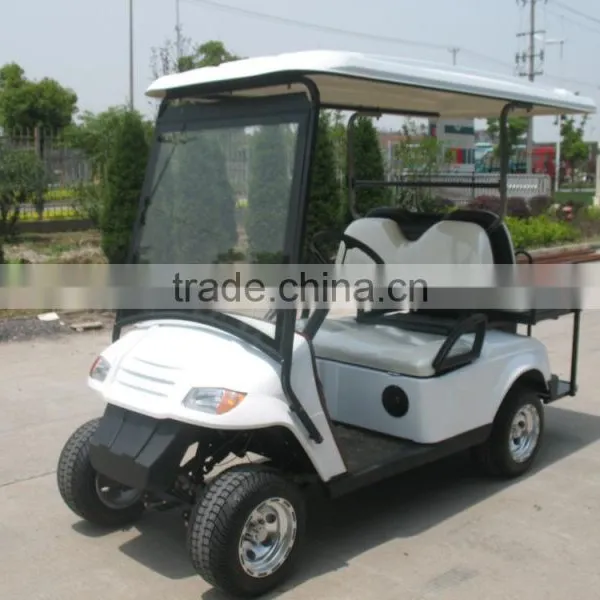

Fleet Golf Car, 2 Seats, Electric, EG2029K Two Seats Golf Cart photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
36V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Seats 1 - 2
Fuel Type Electric
Battery Voltage 36V
Certification CE
Product Description
CE approved 2 person club car electric golf cart,
----EG2029K


Model
EG2029K
System
36V/3KW Sepex
Battery
6PCSxT105(185Ah@5hr rate)
Motor
3KW ADC motor
Controller
Curtis 1243 (300A@2minutes)
Dimensions
Overall dimensions (mm)
2350X1180X1800
Min. ground clearance (mm)
120
Wheelbase (mm)
1700
Front wheel tread (mm)
855
Rear wheel tread (mm)
975
Electric system
Lighting system and horn
2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn.
Charger
China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A
Steering and Suspension
Steering system
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
Mechanical brake
Accelerator
Stepless speed change
Suspension system
Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio 12.76:1
Wheel & Tyre
10x6 Alumimum wheel & 205/50-10 4PR
Body and Frame
Frame
Welded steel framework with phosphate+electro-coating treatment
Body
PP plastic front body + PP plastic rear body
Roof
Injected plastic
Windshield
one-piece Organic glass
Large Seats:
1) backrest and cushion
Rebond seat + artificial leather
2) armrest
Formed
3) plastic seat bottom
Performance
Passenger capacity
2
Range (loaded) based on flat road at a speed of 20km/h (km)＊
>60
Max. speed @12.76:1 gear ratio
21
Minimum turning radius (m)
3.5
Max. climbing ability (loaded) @ 12.76:1 gear ratio
20%
Max. climbing ability (loaded) @ 10.26:1 gear ratio
15%
Max. movement after brake at speed of 20km/h
≤4m
Max. loading weight
150kgs
Net weight
470kgs

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

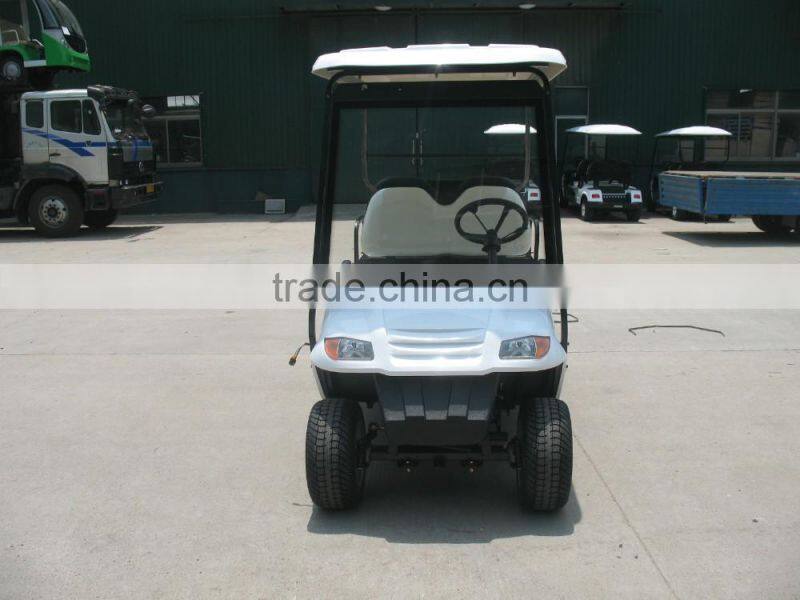

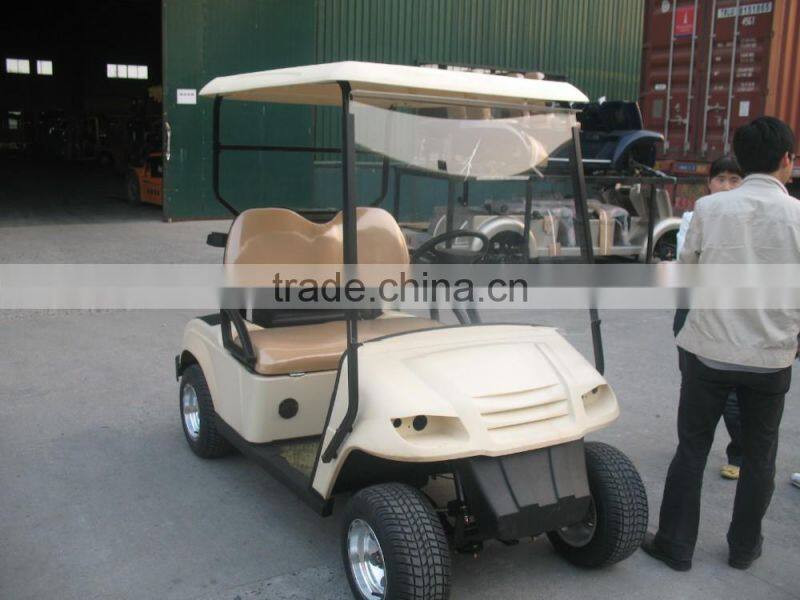

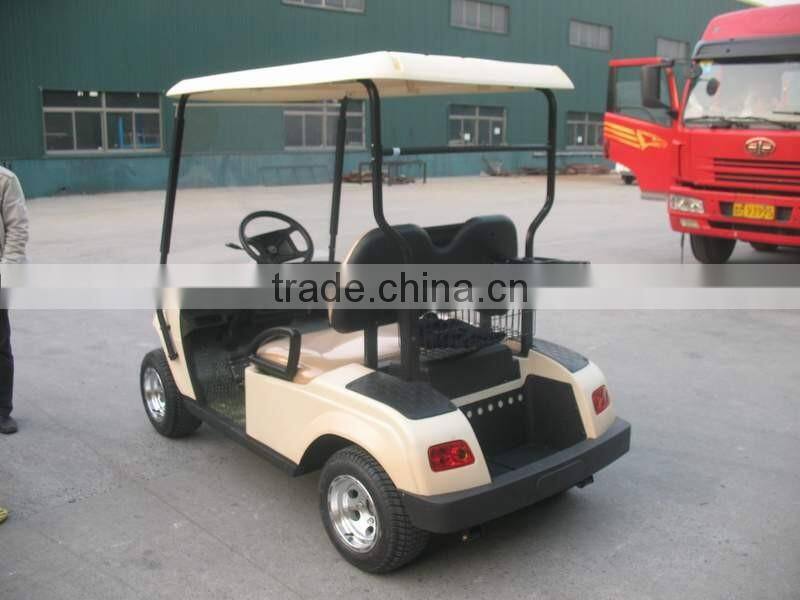

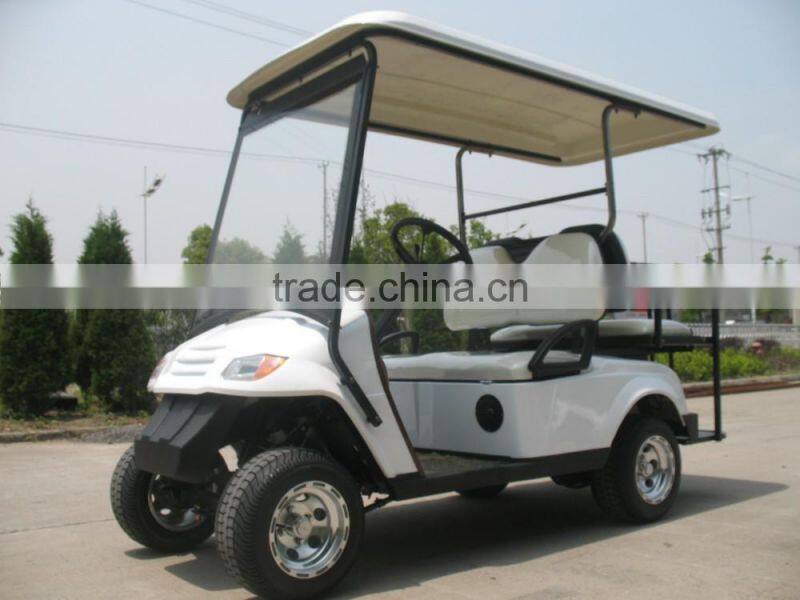

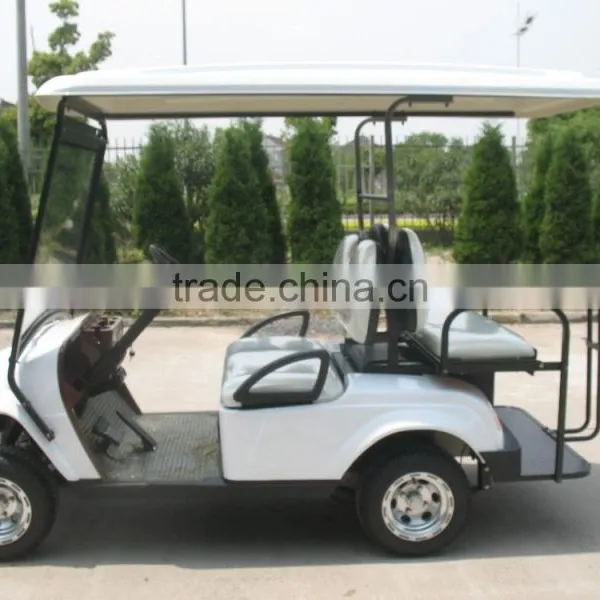

Detailed Images
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Container loading qty
Assembled
20'ft GP
4units
40'ft GP
8units
40'HQ
8units
Other Products

EG2028HR

.http://www.china.cn/product-detail/Street-legal-electric-for-europe-market_60477553624.html

EG2048H

http://www.china.cn/product-detail/4-4-golf-cart-with-cargo_60151819172.html

Our Company

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Our Service

 1) Customization is available

2)  13 months warranty from shipping date

3)  FOC spare parts provided

Certifications
