Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
5 - 6
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Approved 2 Person Golf Car,EG2028H, Electric Golf CartNegotiableMOQ: 1 -
CE Approved 4 Person Golf Car 4 Seater Electric Golf Car With Folding Seat,EG2028KSZNegotiableMOQ: 1 Unit
-
4 Seats Electric Golf Cart, CE Certificate, EG202AKSFNegotiableMOQ: 1 Unit
-
Fleet Golf Car, 2 Seats, Electric, EG2029K Two Seats Golf CartNegotiableMOQ: 1 Unit
-
Electric Golf Car, Battery Powered, EG202AH , 2 Seats With Cargo Box, CE ApprovedNegotiableMOQ: 1 Unit
Seats
5 - 6
Fuel Type
Electric
Battery Voltage
48V
Certification
CE
Application

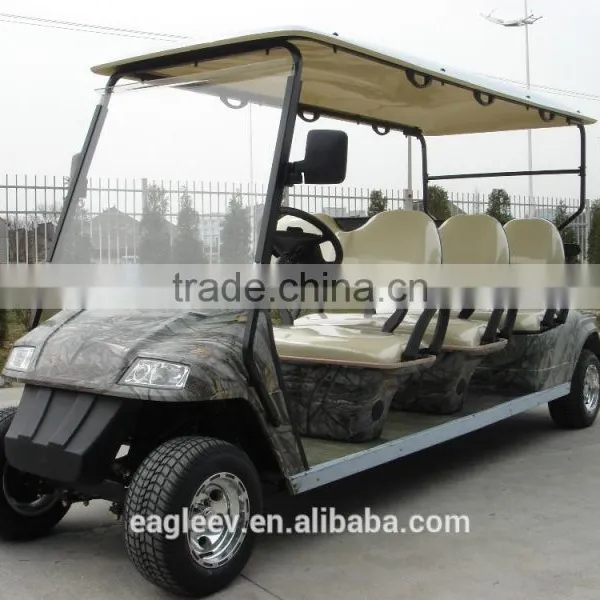

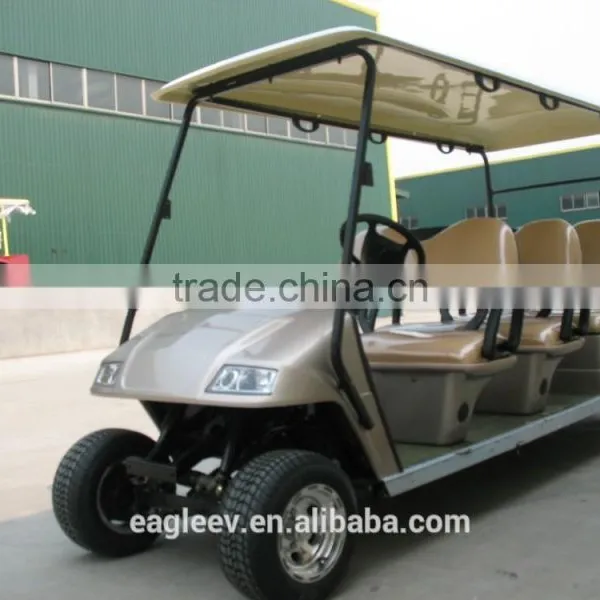

Electric golf buggy EG2068K is a 6 passengers vehicle and can be used in golf courses, tourist attractions, airport, railway station and some other closed area.
Key Components
| Item | Description |
| Controller | Curtis 1268 (400A@2minutes) |
| Motor | 3.8KW Chinese motor |
| Battery | 8xT105(185Ah@5hr rate) |
Performance
| Item | Description |
| Passenger Capacity | 6 |
Range (loaded) (km)* | up to 100 |
| Max.speed (km/h) | up to 32 |
| Min.turning radius (m) | 6 |
| Max.climbing ability(loaded) | up to 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 530 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (mm) | 3860x1180x1890 (LxWxH) |
| Min.ground clearance (mm) | 120 |
| Wheelbase (mm) | 3200 |
| Front wheel tread (mm) | 875 |
| Rear wheel tread (mm) | 985 |
Body and Frame
| Item | Description |
| Frame & Chassis | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front and rear body cover |
| Roof | FRP |
| Windshield | One-piece organic glass (PMMA) |
| Roof supports | including front upright, rear upright, caddie handle |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Formed |
| Floor mat | Skidproof rubber |
| Centre sweater basket | Carbon steel, large volume |
| Golf bag holder | Steel support with nylon strap |
| Dashboard | Black plastic, with F/R switch, battery power indicator, ignition key on it |
| Beverage holders | 4 cups holders, 2 big and 2 small |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights | 12V, headlight, front turning light, taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 48V/12V |
Steering & suspersion
| Item | Description |
| Steering System | Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | 4-wheel hydraulic brake and hand brake |
| Accelerator | Stepless speed change |
| Front suspension | Cylinder hydraulic shock absorber and leaf spring |
| Rear suspension | Cylinder hydraulic shock absorber and leaf spring |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, Gear ratio 12.49:1 |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
Option Accessories
To increase the sales value of our electric golf buggy, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | Hinged windshield | 11 | Enclosure |
| 2 | Laminated windshield with wiper | 12 | Digital meter |
| 3 | 2-point seatbelt | 13 | 12V plug |
| 4 | Backrest cover in wood finish | 14 | Hour meter |
| 5 | Steering wheel in wood finish | 15 | Solar panel |
| 6 | Inner rear view mirror | 16 | Cooler box |
| 7 | Side rear view mirror | 17 | Battery watering pipe |
| 8 | STS or aluminum roof supports | 18 | Water pump (handle) |
| 9 | Wooden finish dashboard,steering wheel and dashboard | 19 | 4-wheel hydraulic front drum or disc, rear drum brake with hand park brake |
| 10 | Glove box with door and lock | 20 | 8x7 steel rim with 18x8.5-8 tyre or 6J-10 steel rim with 205/50-10 tyre |
Color Options
| Item | Pure white | Pure black | Coca cola red |
Body (including roof) | |||
| Metallic green | Champagne | Navy blue | |
Packing & Shipping
Electric golf buggy will be packed in steel crate
| Container loading qty | Semi-knock-down | Refer Picture |
| 20'ft GP | 4 | |
| 40'ft GP | 8 | |
| 40'HQ | 12 |
Warranty
All electric golf buggy sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
