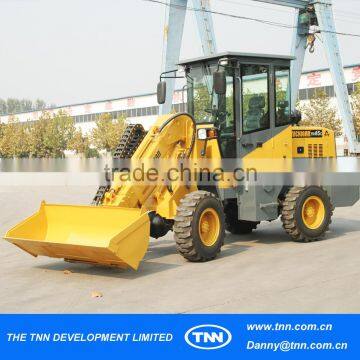

#12-4 Mini Best Good Telescopic Boom Loader by Railway

US$ 4,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

Model Number:

ZT928TR

The TNN Development Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name ZT

Model Number ZT928TR

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5670X2060X2750

Rated Load 6000kg

Certification CE

Warranty Two YEAR

After-sales Service Provided Overseas third-party support available

Rated load capacity	4Tm
operating weightkg)	6000
Max.breakout force(kN)	55
Max.dump height(mm)	4250
Max.dump reach(mm)	300
Max.grade ability(°)	30
Automatic leveling ability	Y
Total cycle time(lifting, dumping, lowering)(s)	≤10
Wheel base(mm)	2350
Tread(mm)	1500
Min.ground clearance(mm)	300
Overall dimensions (l×w×h)mm(mm)	5670×2060×2750
travel speed(km/h)
Forward gear I	0~6
II	0~24
reverse gear I	0~6
II	0~24
Engine Model	cummins4BT3.9-C100
Type	Inline, water cooling, direct injection four-stroke
Rated power(kW)	60
Rated speed(rpm)	2400
Maximum torque(N·m)	305
Hydraulic torque converter/transmission model	YJ280 /ZL15-I
Hydraulic torque converter/transmission type	Fixed shaft type hydraulic power shift change.
Transmission gear	FORWARD 2 reverse 2
Drive axle	20F
Tire model	16/70-20
Steering model	BZZ5-320
Multi-way diverter valve model	ZL20
operating oil pump	CBG2063
The system pressure(MPa)	17
The braking system	Gas-liquid caliper disc brake
The voltage(V)	24
