Good quality High precision Automatic CNC Lathe machine
Automatic CNC Lathe machine
cnc lathe
customizable
CE & ISO9001
Free change parts
Tools and sets available
TNN supply all kinds of CNC metal machining machineries.
including CNC lathe machine, CNC milling machine, CNC vertical lathe machine, CNC turning center, CNC vertical machining center, CNC milling and boring machine, CNC heavy duty horizontal/vertical lathe machine, etc.
CNC lathe machine range and basic technical parameters(Flat Bed):
No. | Item | Unit | Flat Bed | |||||||||
CLK2010S | CLK3010S | CLK3230S | CLK6130E | CLK6140D | CLK6150 | CLK6156 | ||||||
1 | Swing over bed | mm | 230 | 350 | 300 | 400 | 500 | 560 | ||||
2 | Swing over slide | mm | 70 | 112 | 100 | 170 | 280 | 325 | ||||
3 | Center distance | mm | - | - | 500 | 750 | 1000 | 1000 | 1500 | 1000 | 1500 | |
4 | Max. process length | mm | 100 | 250 | 350 | 550 | 860 | 820 | 1320 | 820 | 1320 | |
5 | X travel | mm | 230 | 300 | 165 | 230 | 295 | 310 | ||||
6 | Spindle bore | mm | 26 | 40 | 56 | 38 | 51/81 | 77 | 89 | |||
7 | Spindle speed | rpm | 160-6000 | 60-6000 | 200-3000 | 80-2000 | 20-1620 | 40-1600 | ||||
8 | Tools |
| Gang tools | Gang tools | Gang tools | 4 station | 4 station | 4 station | ||||
9 | Main motor | KW | 3.7 | 5.5 | 2.2 | 5.5 | 7.5 | 7.5 | ||||
10 | Weight | kg | 750 | 1600 | 1200 | 1800 | 1900 | 2100 | 2150 | 2250 | 2450 | |
11 | Floor space | mm | 1250x1000 | 1650x1300 | 1530x1200 | 2000 x1100 | 2320 x1100 | 2500 x1370 | 3000 x1370 | 2570 x1300 | 3070 x1300 | |
CNC lathe machine range and basic technical parameters(Slant Bed):
No. | Item | Unit | Slant Bed | ||||

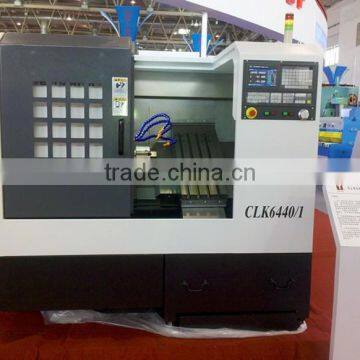

CLK6432S | CLK6440/1 | CLK6440A | CLK6140S | CLK6150S | |||
1 | Swing over bed | mm | 320 | 540 | 540 | 540 | 700 |
2 | Swing over slide | mm | 150 | 270 | 270 | 270 | 380 |
3 | Max. workpiece length | mm | 190 | 235 | 235 | 550 | 600 |
4 | Max. process diameter | mm | 320 | 400 | 400 | 400 | 500 |
5 | X travel | mm | 300 | 350 | 245 | 220 | 245 |
6 | Z travel | mm | 200 | 245 | 275 | 660 | 600 |
7 | Spindle bore | mm | 58 | 65 | 65 | 52 | 86 |
8 | Spindle speed | rpm | 6000 | 4000 | 4000 | 4000 | 4000 |
9 | Rapid speed(X/Z) | mm/min | 20000/26000 | 12000/16000 | 18000/18000 | 12000/16000 | 30000/30000 |
10 | Feeding speed | mm/min | 1-5000 | 1-5000 | 1-5000 | 1-5000 | 1-5000 |
11 | Position accuracy | mm | X0.016;Z0.02 | X0.016;Z0.02 | X0.016;Z0.02 | X/Y/Z0.012 | X0.016;Z0.02 |
12 | Re-position accuracy | mm | X0.007;Z0.008 | X0.007;Z0.008 | X0.007;Z0.008 | X/Y/Z0.006 | X0.007;Z0.008 |
13 | Tools | pcs | Gang tools | Gang tools | 10 | 10 | 12 |
14 | Main motor | KW | 5.5 | 7.5 | 7.5 | 7.5 | 18.5-22 |
15 | Weight | kg | 1900 | 3000 | 3000 | 3500 | 7000 |
16 | Overall dimension | mm | 2000x1700 x1850 | 1850x1700 x1800 | 1860x1520 x1850 | 2720x1580 x1870 | 3600x2000 x1950 |
Our machine tools are largely used in customer factories, both domestic and overseas.
Production Instance
Following pictures show some of our vertical machine center production instance, from 3 axis to 5 axis all included.
