In this golden September & silver October,
TNN is coming with special promotion!
Any customers who place orders during Sept. 1st to Oct.31st 2016, will get following reward!
Order amount $ 1 - 9999 3% off
Order amount $ 10,000-99,999 5% off
Order amount $ 100,000+ 8% off
Full Automatic Small Carbonated Drink Production Line
Carbonated Drink Production Line
A.Full Automatic Function
B.Free Bottle, Label Design
C.2 years guarantee
D.1 year free parts

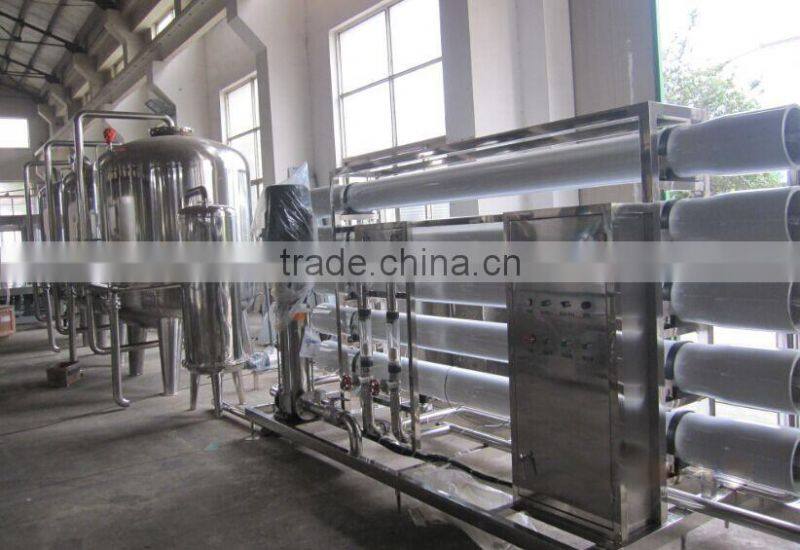

I. Water Treatment Equipment
Application | Water Purification, for washing bottles before filling with juice |
Capacity | 1-20 tons per hour |
Processing included | Sand filter, Active Carbon Filter, Precision filter, High Pressure Pump, RO System, UV Sterilizer, Ozone Sterilizer and Water Tanks. |
II. Blow Molding Machine
Option 1: HY Series Semi Automatic Blow Molding Machine Click here to learn more
Application | To make PET plastic bottles |
Model | HY Series |
Bottle Sizes | 0.1-2.5L, 3-6L, 6-10L, 20L |
Capacity | 60-1500BPH |
Option 2: TNN Series Full Automatic Blow Molding Machine Click here to learn more
Application | To make PET plastic bottles |
Model | TNN Series |
Cavity No. | 2/4/6/8 |
Bottle Sizes | 0.1-2.0L, 3-10L |
Capacity | 800-9000BPH |
III. Air Conveyor
Application | To transfer empty bottles to the 3-in-1 unit by wind |
Conveyor Height | 1.25-1.50m |
Bottle Necks | 28mm, 30mm, 38mm, etc |
Bottle Size | 0.1-2.0L |

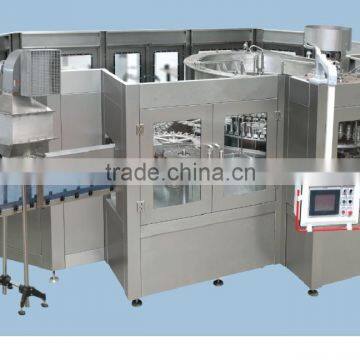

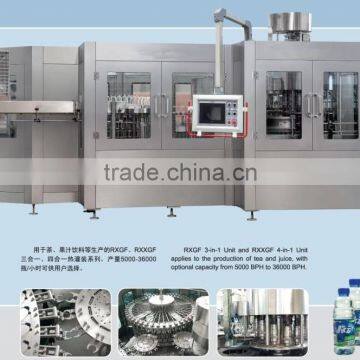

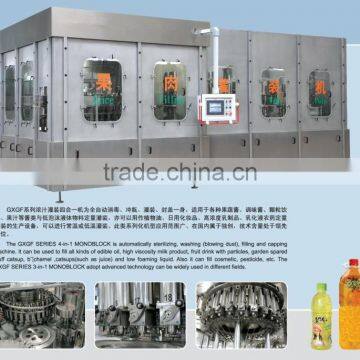

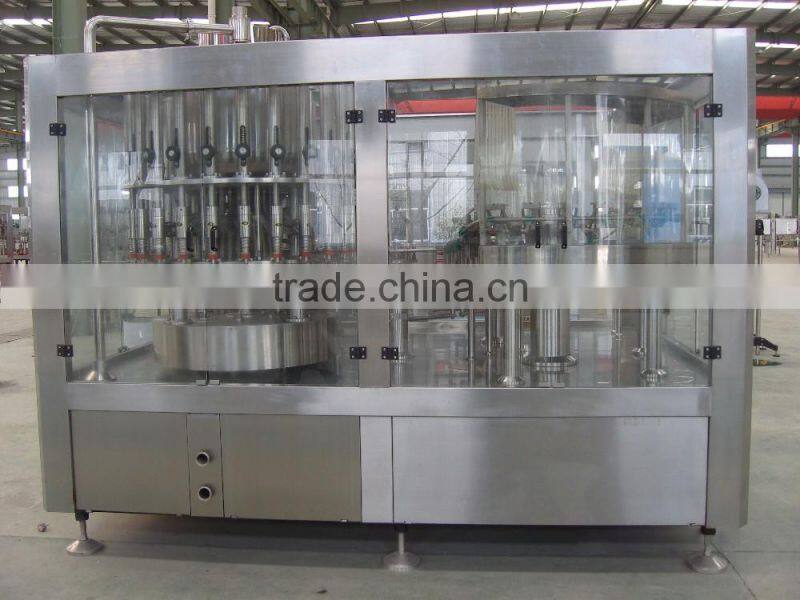

IV. Washing Filling Capping 3-in-1 Unit and Mixer
Application: Washing, filling and capping the bottle, for carbonated drinks.
Model | DXGF8-8-3 | DXGF12-12-6 | DXGF18-18-6 | DXGF24-24-8 |
Rinsing Head | 8 | 12 | 18 | 24 |
Filling Head | 8 | 12 | 18 | 24 |
Capping Head | 3 | 6 | 6 | 8 |
Capacity (based on 500ml) | 1000-2000BPH | 3000-4000BPH | 5000-6000BPH | 7000-8000BPH |
Diameter of bottle | φ50-φ100mm | |||
Height of Bottle | 160-340mm | |||
Bottle Volume | 0.3-2.0L | |||
Machine Power | 2.7 KW | 3.5 KW | 4.8 KW | 5.8 KW |
Power Supply | 380V 3 phase, 50Hz or customized | |||
Weight | 2100kg | 2300kg | 2800kg | 4800kg |
External Dimensions (L×W×H) | 2100×1700×2100mm | 2200×1800×2100mm | 2400×1950×2100mm | 3200×2100×2600mm |
V. Inkjet Printer
Application | To print Production date and Expiry date on the bottle |
Character Height | 1.2~15mm |
Printing Lines | 1-2 lines (adjustable) |
Power Supply | AC 220V 50HZ, 1- phase |
Total Weight | 120kg |
Overall Size | 600×500×1250mm |
Expiry Date, Batch Numbers, Logos, Automatic Date, Time, Shift, Incremental Numbering.
VI. Heat Shrink Sleeve Labeling Machine TNN-SLM150 Click here to learn more
Application | To sleeve and shrink labels on the bottle |
Model | TNN-SLM Series |
Bottle Size | 0.1-2.5L |
Capacity | 3,000-36,000BPH |
VII. Automatic Shrink Wrapping Machine TNN-SPM Series Click here to learn more
Application | To shrink packing certain numbers of bottles in a pack by PE film |
Model | TNN-SPM Series |
Bottle Size | 0.1-2.5L |
Capacity | 6-35packs per minute |
VIII. Conveyor
Conveyor is used for connecting machines together and made them operate well.
The width and height can be customized by clients.
IX. PET preform, bottle cap, PVC label, PE film
2 years of quality guarantee period. We prepare free spare parts attached to each machine. Non-profit spare parts will be sent door-to-door by air mail in case of any broken parts during warranty period.
We will send technicians to install the machine and teach your staff how to use it. All the cost should be stood by customers such as visa fee, round way air tickets, meals, accommodations and $80 per day for each technician.
Free Bottle Design
Free Label Design
1. What kind of machine can we supply?
We supply carbonated drink production line.
2. How to get a quotation for the carbonated drink production line?
Customers need to confirm following information first:
Bottle size? Production capacity? Labeling type? Packaging type?
3. How long is the delivery time?
45-60days. Customers need to confirm bottle drawing as early as possible.
Customers need to provide at least 100pcs preforms and caps for machine tests.
4. How to install?
We will send technicians to guide customer to do installation and training, if customer requires.
The installation takes 7-30days, depending on different capacities of production line.
Customer should prepare water and power before technicians arrive at customer’s factory,
5. What guarantee can we provide?
Free spare parts will be attached to each carbonated drink production line. It is adequate for one year's production.
We will send new parts within 72 hours if any parts are damaged.
6. What’s the power supply requirement?
220V, single phase, 50/60Hz
380V, 3 phase, 50Hz
If your voltage is different from above, please let us know before place an order.
