orange sugarcane pomegranate fruit juice bottling machine
juice bottling machine
A.full automatic function
B.free bottle, label design
C.2years guarantee
D.1year free parts
I. Water treatment equipment
Application | water purification, for washing the bottles before filling with juice |
Capacity | 1-20ton per hour |
Processing included | Sand filter, Active carbon filter, Precision filter, high pressure pump, RO system, UV sterilizer, Ozone sterilizer and water tanks. |
II. Blow molding machine
Option 1: HY Series semi automatic blow molding machine Click here to learn more
Application | To make PET plastic bottles |
Model | HY Series |
Bottle size | 0.1-2.5L, 3-6L, 6-10L, 20L |
Capacity | 60-1500BPH |
Option 2: TNN Series full automatic blow molding machine Click here to learn more
Application | To make PET plastic bottles |
Model | TNN Series |
Cavity No. | 2/4/6/8 |
Bottle size | 0.1-2.0L, 3-10L |
Capacity | 800-9000BPH |
III. Air conveyor
Application | To transfer empty bottles to the 3-in-1 unit by wind |
Conveyor height | 1.25-1.50m |
Bottle neck | 28mm, 30mm, 38mm, etc |
Bottle size | 0.1-2.0L |

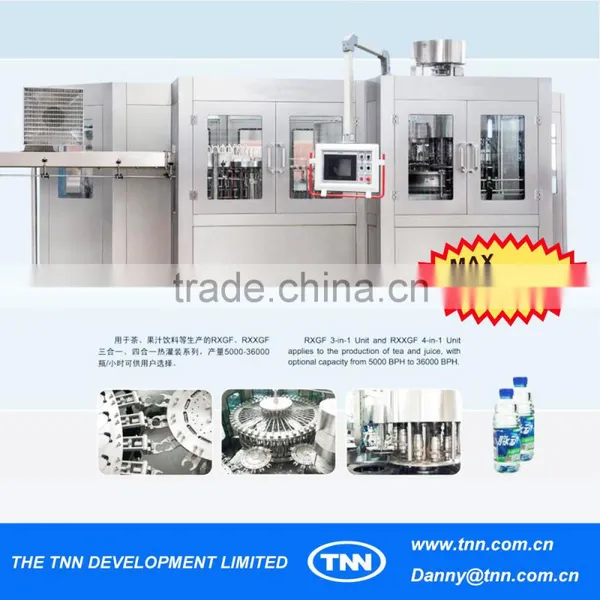

IV. Washing filling capping 3-in-1 unit Click here to learn more
Application: Washing, filling and capping the bottle, for all kinds of hot filling juice/tea/coffee/energy drinks.
Model | RXGF8-8-3 | RXGF12-12-6 | RXGF18-18-6 | RXGF24-24-8 |
Rinsing head | 8 | 12 | 18 | 24 |
Filling head | 8 | 12 | 18 | 24 |
Capping head | 3 | 6 | 6 | 8 |
Capacity (based on 500ml) | 2000-3000BPH | 4000-5000BPH | 6000-8000BPH | 8000-10000BPH |
Diameter of bottle | φ50-φ100mm | |||
Height of bottle | 160-340mm | |||
Bottle volume | 0.3-2.0L | |||
Machine power | 2.7 KW | 3.5 KW | 4.8 KW | 5.8 KW |
Power supply | 380V 3 phase, 50Hz or customized | |||
Weight | 2100kg | 2300kg | 2800kg | 4800kg |
External dimensions (L×W×H) | 2100×1700×2100mm | 2200×1800×2100mm | 2400×1950×2100mm | 3200×2100×2600mm |
V. Inkjet Printer
Application | To print Production date and Expiry date on the bottle |
Character height | 1.2~15mm |
Printing lines | 1-2 lines (adjustable) |
Power supply | AC 220V 50HZ, 1- phase |
Total weight | 120kg |
Overall size | 600×500×1250mm |
Expiry date, Batch numbers, Logos, Automatic date, Time, Shift, Incremental numbering.
VI. Heat shrink sleeve labeling machine TNN-SLM150 Click here to learn more
Application | To sleeve and shrink labels on the bottle |
Model | TNN-SLM Series |
Bottle size | 0.1-2.5L |
Capacity | 3,000-36,000BPH |
VII. Automatic shrink wrapping machine TNN-SPM Series Click here to learn more
Application | To shrink packing certain numbers of bottles in a pack by PE film |
Model | TNN-SPM Series |
Bottle size | 0.1-2.5L |
Capacity | 6-35packs per minute |
VIII. Conveyor
Conveyor is used for connecting machines together and made them operate well.
The width and height can be customized by clients.
IX. PET preform, bottle cap, PVC label, PE film
2 years of quality guarantee period.
We will supply standard spare parts and accessories for each machine when they are shipped.
If there are any damaged of spare parts or accessories, We would replace them by DHL express immediately for FREE OF CHARGE.
We will send technicians to install the machine and teach your staff how to use it. All the cost should be paid by customer such as visa fee, round way air tickets, meals, accommodations and $80 per day for each technician.
Free bottle design
Free label design
1. What kind of machine can we supply?
We can supply juice bottling machine.
2. How to get a quotation for a juice bottling machine?
Customers need to confirm following information first:
Bottle size? Production capacity? Labeling type? Packaging type?
3. What is the delivery time?
It takes 45-60days. Customers need to confirm bottle drawing as early as possible.
Customers need to provide at least 100pcs preforms and caps for machine tests.
4. How to do the installation?
We will send technicians to guide customers do installation and training, if they require.
The installation takes 7-30days, depending on different capacities of production line.
Customers should prepare water and power, before technicians reached at customer’s factory.
5. What guarantee we provide?
Free spare parts will be attached to each juice bottling machine. It is adequate for one year's production.
We will send new parts within 72 hours if any part is damaged.
6. What’s the power supply requirement?
220V, single phase, 50/60Hz
380V, 3 phase, 50Hz
If your voltage is different from above, please let us know before place an order.
