Light Duty Counter Balance Stacker for Supermarket

Light Duty Counter Balance Stacker for Supermarket thumbnail-1
Light Duty Counter Balance Stacker for Supermarket photo-1
Negotiable MOQ: 1 Pack (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Veshai Counter balance stacker
Contact Supplier Request Quote Chat Now
Zhaoqing Veshai Handling Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name Veshai Counter balance stacker
Model Number WSC Counter balance stacker
Type Other, Powered Pallet Truck, WSC Counter Balance stacker
Power Souce DC Motor
Rated Loading Capacity 990/1100/1660lb(450/500/750kgs)
Max. Lifting Height 118Inc(3000mm)
Min. Lifting Height 78Inc(1980mm)
Fork Length 45.2Inc(1150mm)
Fork Width 33.4Inc(850mm)
Overall Dimensions 94.4*33.4*76.7Inc(2400*850*1950mm)
Certification CE;ISO9001
After-sales Service Provided Overseas third-party support available

Specifications

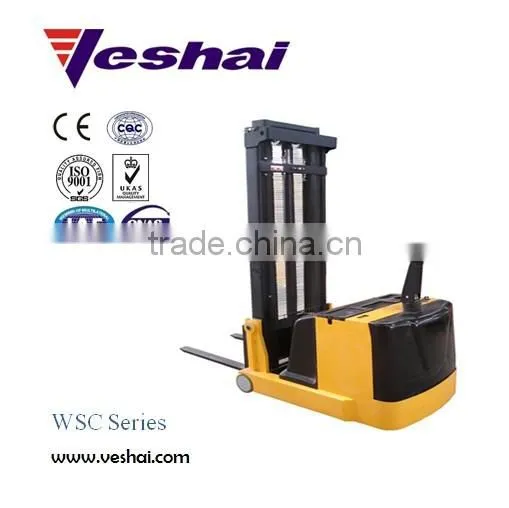

Counter balance stacker
1.CE certification
2.Counter balance no front leg
3.Small turning radios
4.Tilting mast optional

WSC Counter balance stacker



450/500/750kgs

Compact designed

Minimum operating area

Tilting is optional



Standard Features

1. Counter balance designed, without front let, increases the scope of operation and suit for any type of pallet.

2. Emergency stop bottom mounted at truck frame, Reversing switch at the end of the handle provide double safety guards.

3. Ergonomic design handle provide forward/reverse travel controls for thumb operation

4. Build in relieve valve avoid overloading. Velocity valve installed under lifting cylinder, provide safe lowering in case of oil pipe broken.

5. Curtis controller provide customize control option

6. Battery type and tilting mast is optional, fit in more condition.







Standard Specification

Model

Loading

Capacity

Max.

Lfting H.

Fork

width

Battery

Lifting

motor

Driving

motor

WSC-45/16

450kgs

1600mm

760mm

2x12V/70A

DM-180W/2440

1300W

WSC-45/19

450kgs

1900mm

760mm

2x12V/70A

DM-180W/2440

1300W

WSC-50/16

500kgs

1600mm

760mm

2x12V/120A

DM-250W/2470

2000W

WSC-50/20

500kgs

2000mm

760mm

2x12V/120A

DM-250W/2470

2000W

WSC-50/25

500kgs

2500mm

760mm

2x12V/120A

DM-250W/2470

2000W

WSC-50/30

500kgs

3000mm

760mm

2x12V/120A

DM-250W/2470

2000W

WSC-75/16

750kgs

1600mm

760mm

2x12V/160A

DM-250W/24120

2000W

WSC-75/20

750kgs

2000mm

760mm

2x12V/160A

DM-250W/24120

2000W

WSC-75/25

750kgs

2500mm

760mm

2x12V/160A

DM-250W/24120

2000W

WSC-75/30

750kgs

3000mm

760mm

2x12V/160A

DM-250W/24120

2000W



Light duty counter balance stacker for supermarket
