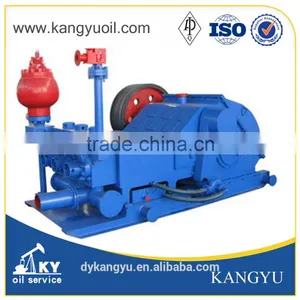

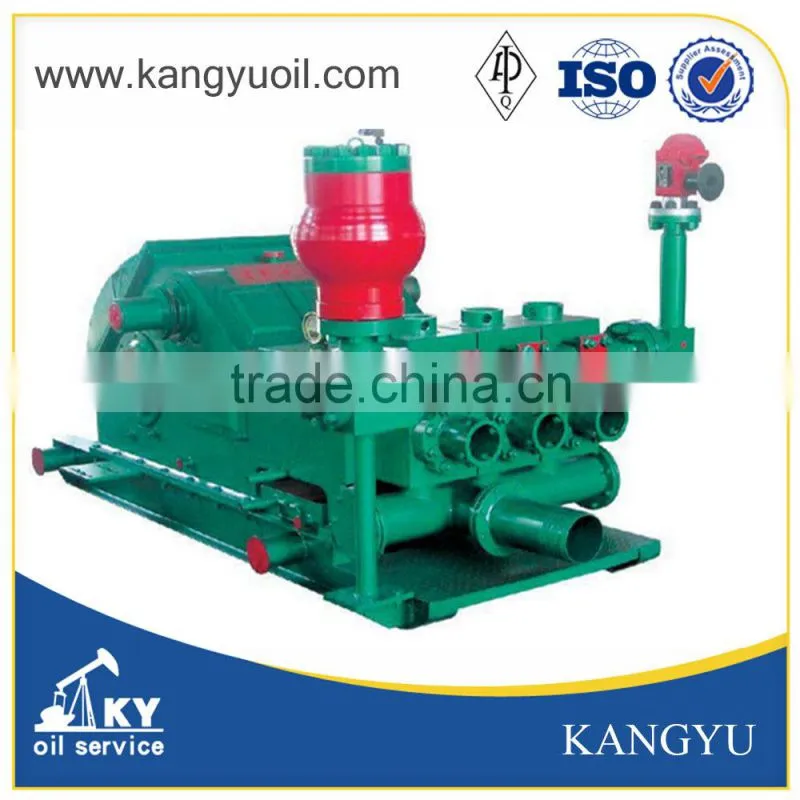

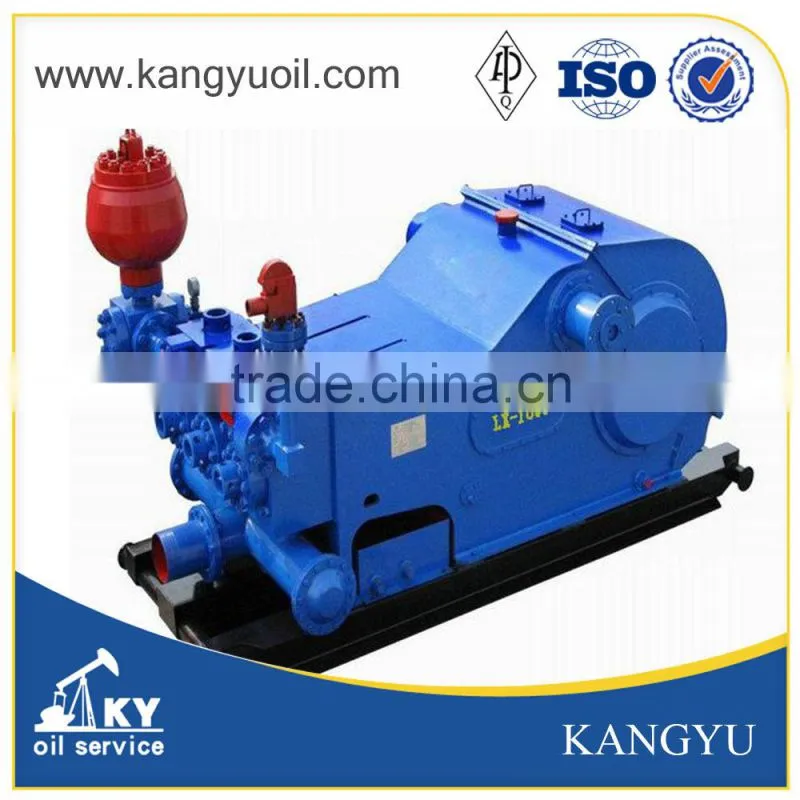

Drilling Equipment High Pressure Reciprocating Triplex Mud Pump for Sale
US$ 1 - 3
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
kangyu
Model Number:
F-series
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2017 Latest High Quality High Pressure F Series Oilfield Mud Pump for Drilling RigUS$ 1 - 2MOQ: 1 Set -
High Quality API Standard Mud Pump & Plunger Pump for Drilling Rig and AccessoiresUS$ 1 - 10MOQ: 1 Set
-
2017 Superior Quality API F-1300 Triplex Single Action Mud Pump In StockUS$ 10,000 - 150,000MOQ: 1 Set
-
F-800/1300/1600 Series Triplex Single Action Piston Mud Pump for Oil Drilling With Lowest PriceUS$ 1 - 3MOQ: 1 Set
-
Oil Drilling Machine 11'' 3000psi Annular BOP ShafferUS$ 1,600 - 20,000MOQ: 10 Sets
Place of Origin
Shandong, China
Brand Name
kangyu
Model Number
F-series
Usage
Other, Oil, Oil
Power
Other, Hydraulic, Hydraulic
Standard or Nonstandard
Standard
Fuel
Other, Diesel, Diesel
Pressure
Low Pressure
Application
Other, Oil well drilling
Structure
Other, Mud Pump
Theory
Other, Jet Pump
Drilling Equipment High Pressure Reciprocating Triplex Mud Pump for Sale
1. Heat-treated and internally hardened for high durability
2. Modules valve seat bore-hole has been shot blasted treated, built a 0.1mm-0.3mm hardened layer, 30% of life span extension.
3. Crank Shaft has been dynamic balanced, decrease vibration and noise during drilling.
4. Gear Shaft, Gear, and Tooth Face have been special treated, increase of 30% of life span.
5. We have 7 national patents. We are going to build a complete customer service system, set up a Houston, TX based warehouse for various of expendables.
| PRODUCT NAME | MODEL | SPECIFICATION | |
| F SERIES DRILLING MUD PUMP |
QF-1600 | Max. Input: 1600HP (1194 kw) | |
| Stroke Length: 12" (305mm) | |||
| Max. Speed: 120 RPM | |||
| Displacement: 50.45 L/S | |||
| Rated pressure: 35 Mpa | |||
| Weight: 24800 kg | |||
| QF-1300 | Max. Input: 1300HP (970 kw) | ||
| Stroke Length: 12" (305mm) | |||
| Max. Speed: 120 RPM | |||
| Displacement: 50.45 L/S | |||
| Rated pressure: 35 Mpa | |||
| Weight: 24200 kg | |||
| QF-1000 | Max. Input: 1000HP (746 kw) | ||
| Stroke Length: 10" (254mm) | |||
| Max. Speed: 140 RPM | |||
| Displacement: 43.2 L/S | |||
| Rated pressure: 35 Mpa | |||
| Weight: 16400 kg | |||
| F SERIES DRILLING MUD PUMP |
QF-800 | Max. Input: 800HP (597 kw) | |
| Stroke Length: 9" (229mm) | |||
| Max. Speed: 150 RPM | |||
| Displacement: 41.5 L/S | |||
| Rated pressure: 32.5 Mpa | |||
| Weight: 14600 kg | |||
| QF-500 | Max. Input: 500HP (373 kw) | ||
| Stroke Length: 7-1/2" (191mm) | |||
| Max. Speed: 165 RPM | |||
| Displacement: 36.8 L/S | |||
| Rated pressure: 26.5 Mpa | |||
| Weight: 9860 kg | |||
| PRODUCT NAME | MODEL | SPECIFICATION | |
| QZ SERIES DRILLING MUD PUMP |
QZ-11 | Max. Input: 1600HP (1178 kw) | |
| Stroke Length: 11" (279mm) | |||
| Max. RPM: 115 | |||
| Gear Ratio: 4.38:1 | |||
| Input Speed: 504 RPM | |||
| Weight: 57,980 lbs. (26,090 kg) | |||
| QZ-10 | Max. Input: 1350HP (1007 kw) | ||
| Stroke Length: 10" (254mm) | |||
| Max. RPM: 115 | |||
| Gear Ratio: 4.38:1 | |||
| Input Speed: 504 RPM | |||
| Weight: 54,186 lbs. (24,600 kg) | |||
| QZ-9 | Max. Input: 1000HP (746 kw) | ||
| Stroke Length: 9" (229mm) | |||
| Max. RPM: 130 | |||
| Gear Ratio: 4.48:1 | |||
| Input Speed: 582 RPM | |||
| Weight: 44,052 lbs. (20,000 kg) | |||
| QZ SERIES DRILLING MUD PUMP |
QZ-8 | Max. Input: 750HP (559 kw) | |
| Stroke Length: 8" (203mm) | |||
| Max. RPM: 145 | |||
| Gear Ratio: 4.5:1 | |||
| Input Speed: 652 RPM | |||
| Weight: 32,600 lbs. (14,800 kg) | |||
