Hot Sale Tower Crane TC3608 (QTZ30 )

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Rated Loading Capacity:

3.0t at 11.7 meters

Max. Lifting Load:

3.0t at 11.7 meters

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 3.0t at 11.7 meters

Max. Lifting Load 3.0t at 11.7 meters

Max. Lifting Height 105.5m

Place of Origin Jiangsu, China

Model Number TC3608 (QTZ30 )

Certification SGS/CIQ/GOST

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Free height 32meters
Max height 105.5 meters
Max radius 36meters
Max load 3.0t at 11.7 meters
Power line voltage 380V/60Hz

Tower crane TC3608 (QTZ30 )

Main performance parameters

Model	QTZ30 (TC3608)
Version	Fixed type
Free height	32m
Max height	105.5m
Max radius	36 m
Jib end load	0.8t at 36 meters
Max load	3.0t at 11.7 meters
Hoisting mechanism ↑↓	JT1
Drum capacity	200 m
Lifting speed	3.32m/min~60.97m/min

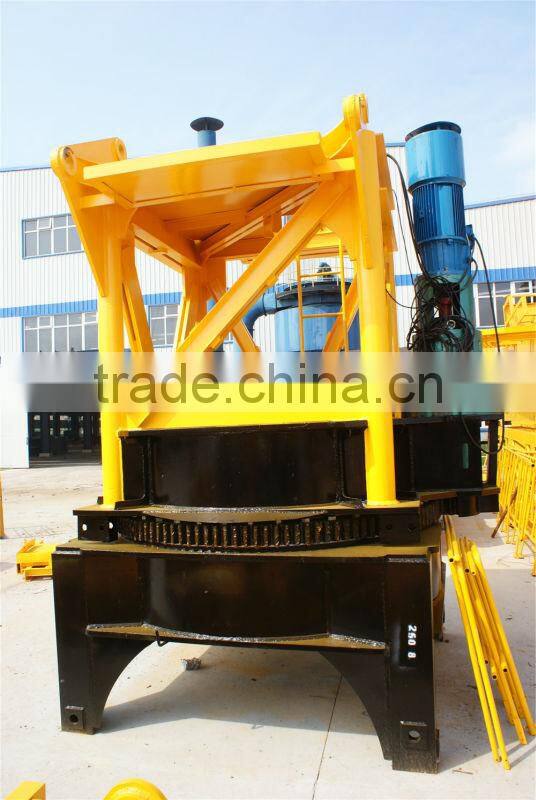

Slewing mechanism	HZ-30
Slewing speed	0.7r/min
Trolley mechanism ←→	BF-30
Trolley speed	28m/min
Power line voltage	380V/60Hz
Color	Yellow
Counter weight	Stell-structured frame(without concrete)

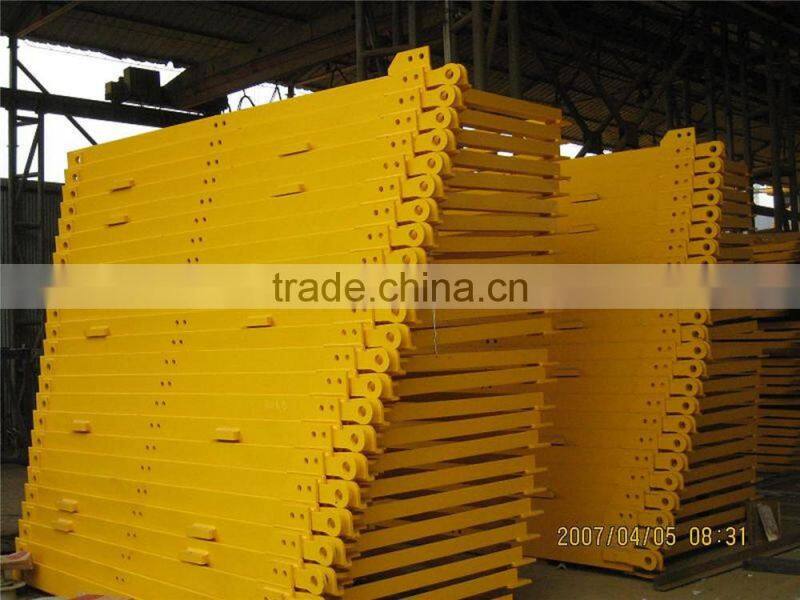

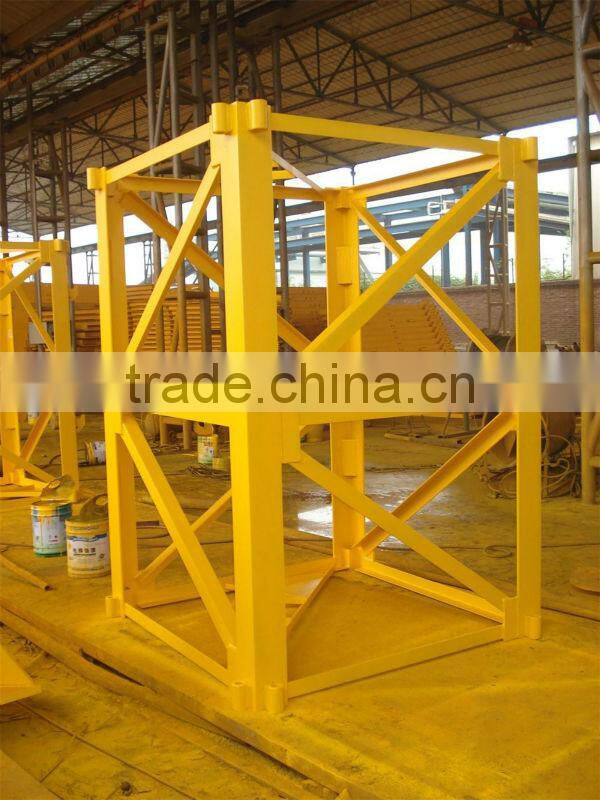

Mast section	1.6×1.6×3m
Mast section and Mast section connection	By screw
Foundation bolt	Included (8sets)

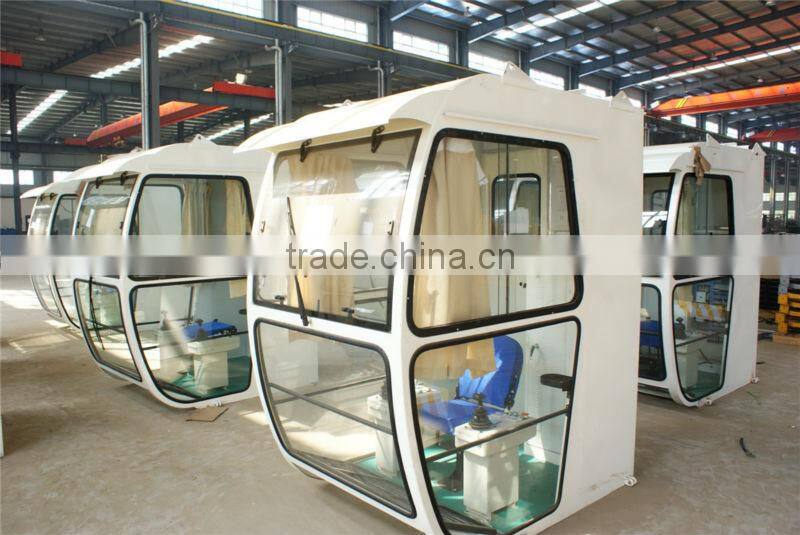

Cabin	Included
Internal framework	Included
Jacking-mechanism	Included
Main electric cable 50m	Included
Base section	Included
