Specifications
Engine Model B19033-CumminsChassis Model DFL1160BX
Displacement 5.88 L
Fuel Tank Capacity 90L

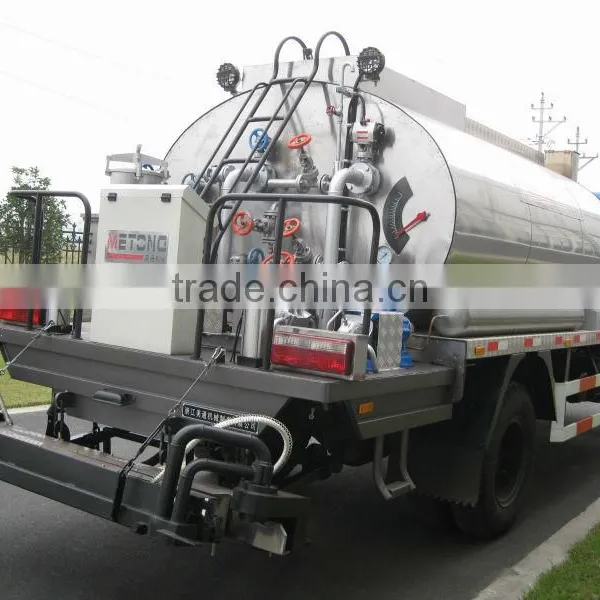

Asphalt Distributor LMT5162GLQ
MAIN TECHNICAL PARAMETER | ||||
Model |
LMT5162GLQ |
Engine Model |
B19033-Cummins |
|
Chassis Model |
DFL1160BX |
Displacement (L) |
5.88 |
|
Truck Type |
flat head 4×2 rear drive |
Max. Power (kw/r/min) |
140/2500 |
|
Dimension |
8995×2490×3200 |
Max. Torque (N·m/r/min) |
611/1400-1600 |
|
(L×W×H) mm |
Burner Diesel Tank Capacity (L) |
90 |
||
Cab Passenger |
3 |
Cleaning Diesel Tank Capacity (L) |
25 |
|
Vehicle kerb Mass (kg) |
9105 |
Fuel Tank Capacity (L) |
90 |
|
Rated Load Mass (kg) |
5700 |
Hydraulic Oil Tank Capacity (L) |
40 |
|
Max. Total Mass (kg) |
16000 |
Decelerator Model |
Z165 |
|
Distribution of Axle Load (KG) |
Front Axle (no load) |
3405 |
Decelerator Gear Ratio |
5.8116 |
Front Axle (full load) |
6000 |
Gearbox Model |
A13D |
|
Rear Axle (no load) |
5700 |
Asphalt Pump Model |
QGB450 |
|
Rear Axle (full load) |
10000 |
Asphalt Pump Displacement (ml/r) |
1160 |
|
Wheelbase (mm) |
5000 |
Asphalt Pump Rotating Speed (r/m) |
100-460 |
|
Tread (front/rear) mm |
1940/1860 |
Power Take-off Model |
DONGFENG AUTOMOBILE |
|
Min. Ground Clearance (mm) |
248 |
Burner Model |
G20 |
|
Suspension (front/rear) mm |
1245/2750 |
Air Compressor Model |
V-0.2/0.8 |
|
Approach/Departure Angle (°) |
20/11 |
Rated Atmospheric Pressure (Mpa) |
0.6 |
|
Ramp Angle (°) |
23 |
Hydraulic Pump Model |
CBQ-F550 |
|
Max. Speed (km/h) |
90 |
Hydraulic Motor Model |
L2F63W2P2 |
|
Working Speed(km/h) |
2.5~10.5 |
Rated Pressure (Mpa) |
20 |
|
Max. Gradeability (%) |
>23 |
Asphalt Tank Capacity (L) |
10000 |
|
Tyre Model |
9.00-20×16PR |
Nozzle |
39 |
|
Tyre Pressure front/rear (kPa) |
630/630 |
Asphalt Spraybar Width (m) |
0~6 |
|
Main Drive Ratio |
4.875 |
Asphalt Spraybar Value (kg/m2) |
0.3~3.0 |
|
Max. Braking Distance (m) |
<10 |
Emission Standard |
Euro III |
|
Min. Turning Circle Dia. (m) |
<23.8 |
|
||
Oil Consumption (L/100km) |
<20 |
|
|
|
Parking Gradient (%) |
>20 |
|
||
If you have any requirement, feel free to contact me please.
